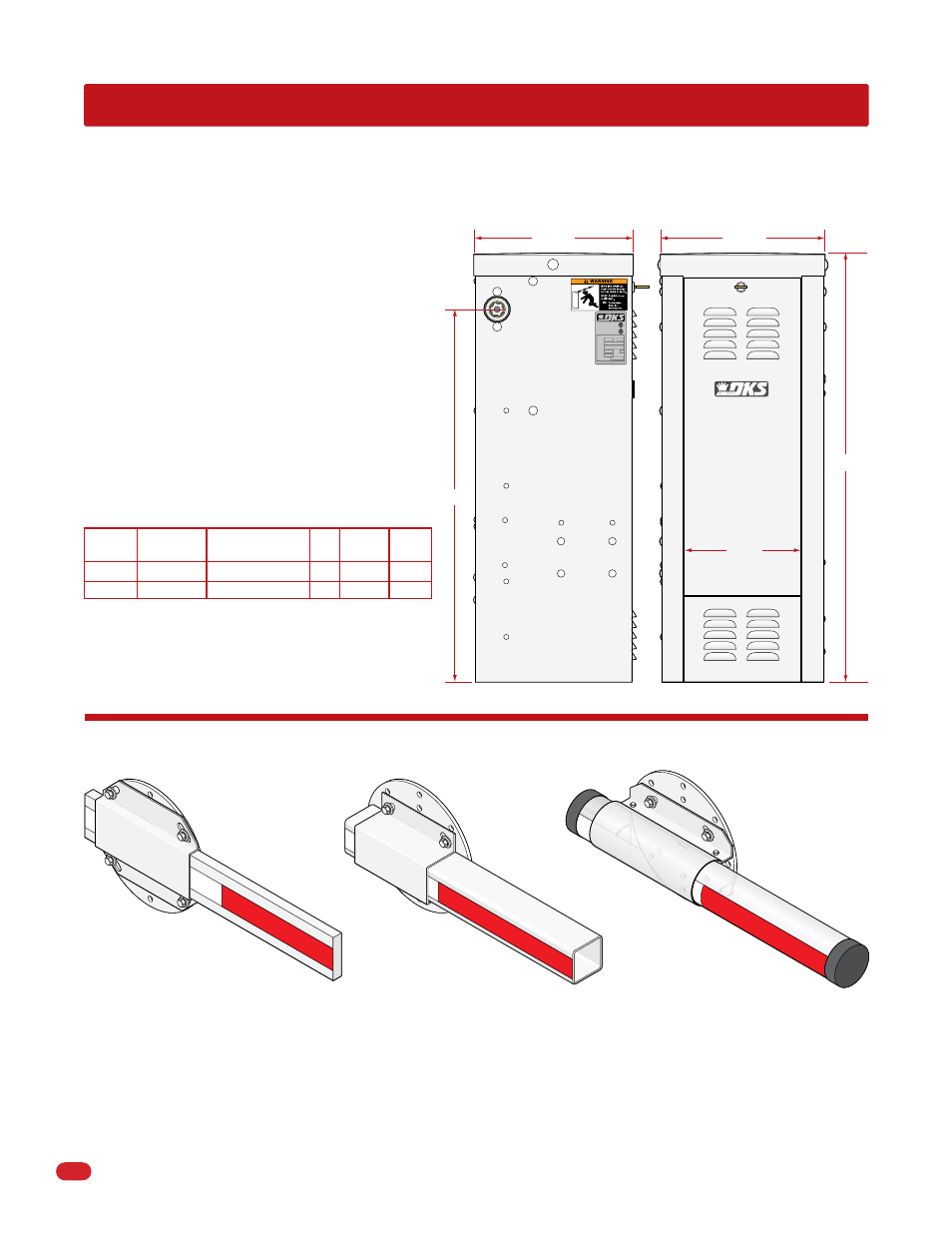

1601 SPECIFICATIONS

15.26”

39.6”

34.5”

12 Ft. Plastic Arm Only

P/N 1601-571

Plastic Arm Mounting Kit

P/N 1601-241

Plastic Folding Arm Kit

P/N 1601-383

14 Ft. Wood Arm Only

P/N 1601-348

Wood Arm Mounting Kit

P/N 1601-240

Wood Folding Arm Kit

P/N 1601-384

Foam Padding for 14 Ft. Arm

P/N 1601-260

14 Ft. Aluminum Arm Only

P/N 1601-516

Aluminum Arm Mounting Kit

P/N 1601-242

Aluminum Folding Arm Kit

P/N 1601-610

Foam Padding for 14 Ft. Arm

P/N 1601-260

1601 Barrier Arm Kit Options

Folding arm assemblies can be installed for low headroom applications.

1601 Housing

Drawings not to scale

Class of Operation

Model 1601 - UL 325 Class II, III, IV – ETL Listed

Type of Gate

Single Traffic Lane Vehicular Barrier Gate Only

Arm Types

Wood/Plastic/Aluminum – Straight or Folding Arm

Gate Cycles

High

Cycle

Primary Entrapment Protection

Inherent entrapment sensing system (Type A)

Secondary Entrapment Protection

Provision for connection of a non-contact sensor
(Type B1) and/or contact sensor (Type B2)

14.74”

CLASS

CERTIFIED TO

CAN/CSA C22.2 NO. 247

CONFORMS TO

ANSI/UL-325

VEHICULAR GATE OPERATOR

HP

53382

MODEL

SERIAL

VOLTS

PHASE

AMPS

60 Hz

MAX GATE LOAD

DoorKing, Inc., Inglewood, CA

10.8”

Model #

Max Arm

Length

Horsepower - Volts

1/2 HP - 115 VAC
1/2 HP - 115 VAC

1601-080
1601-081

14 Ft.
14 Ft.

Speed

90°

1.5 Sec
1.5 Sec

Amp

5.7
5.7

Convenience

Open

No

Yes

Use this manual for the Model 1601 operators with circuit board 1601-010 Rev V or higher ONLY.

DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.

Note: 208/230/460/575 VAC input voltage can be connected
to the operator by installing an “Optional” High Voltage Kit
(P/N 2600-266).

This manual is related to the following products:
