1601-065-L-3-13

31

Shut off AC power to operator.
Turn off DC power switch on certain models.

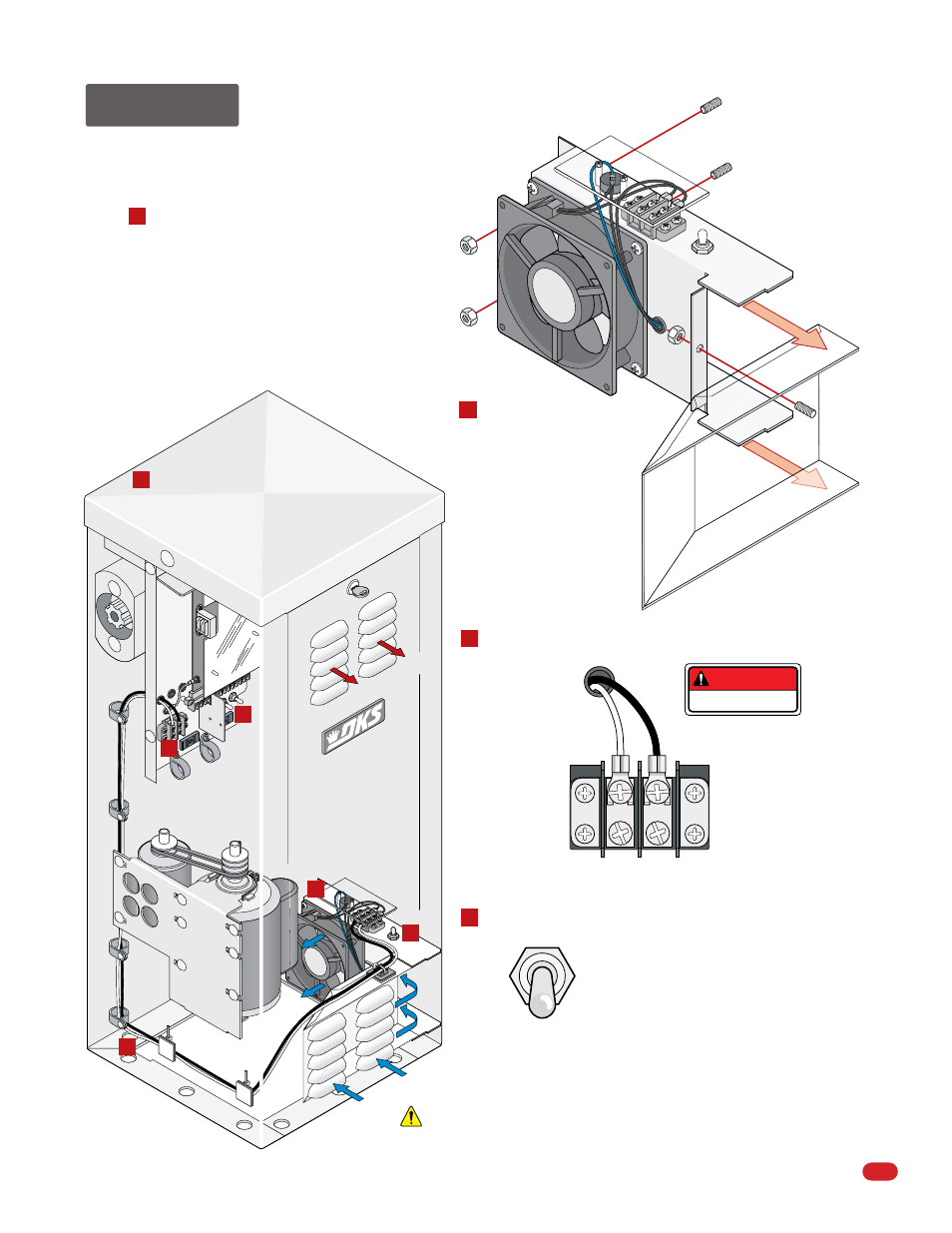

7.2 Fan Kit

An optional fan kit (P/N 1601-093) is recommended in hot humid
climates to prevent heat and moisture build-up inside the housing.

Connect the fan power wires.

Mount fan using 3 existing
threaded studs and lock
nuts supplied. Slide
mounting tabs over
existing air duct.

Keep intake vents clear of debris.

Air

Flow

1

2

3

4

Fan switch settings.

OFF

- Turns the fan off.

ON

- Turns the fan on continuously.

AUTO

- Normal setting. Automatically turns the fan

ON when the temperature rises above 90°F inside the
housing, and turns the fan OFF when the temperature
drops below 90°F.

5

Intake V

ents

Wire Stays

Exist

ing

Air Duct

Existing

Air Duct

Existing Wire Restrainers

Neutral

Mountin

g

Tab

Mountin

g

Tab

Hot

115 VAC

DANGER

HIGH VOLTAGE!

1

2

Exhaust V

ents

Lock Nut

Lock Nut

Lock

Nut

Threaded

Housing Studs

(Existing)

Threaded
Air Duct
Stud
(Existing)

2

5

4

Route fan wires as shown. Use supplied
wire stays and existing wire restrainers.
Keep wires clear of all moving parts.

3

1
