1601-065-L-3-13 20

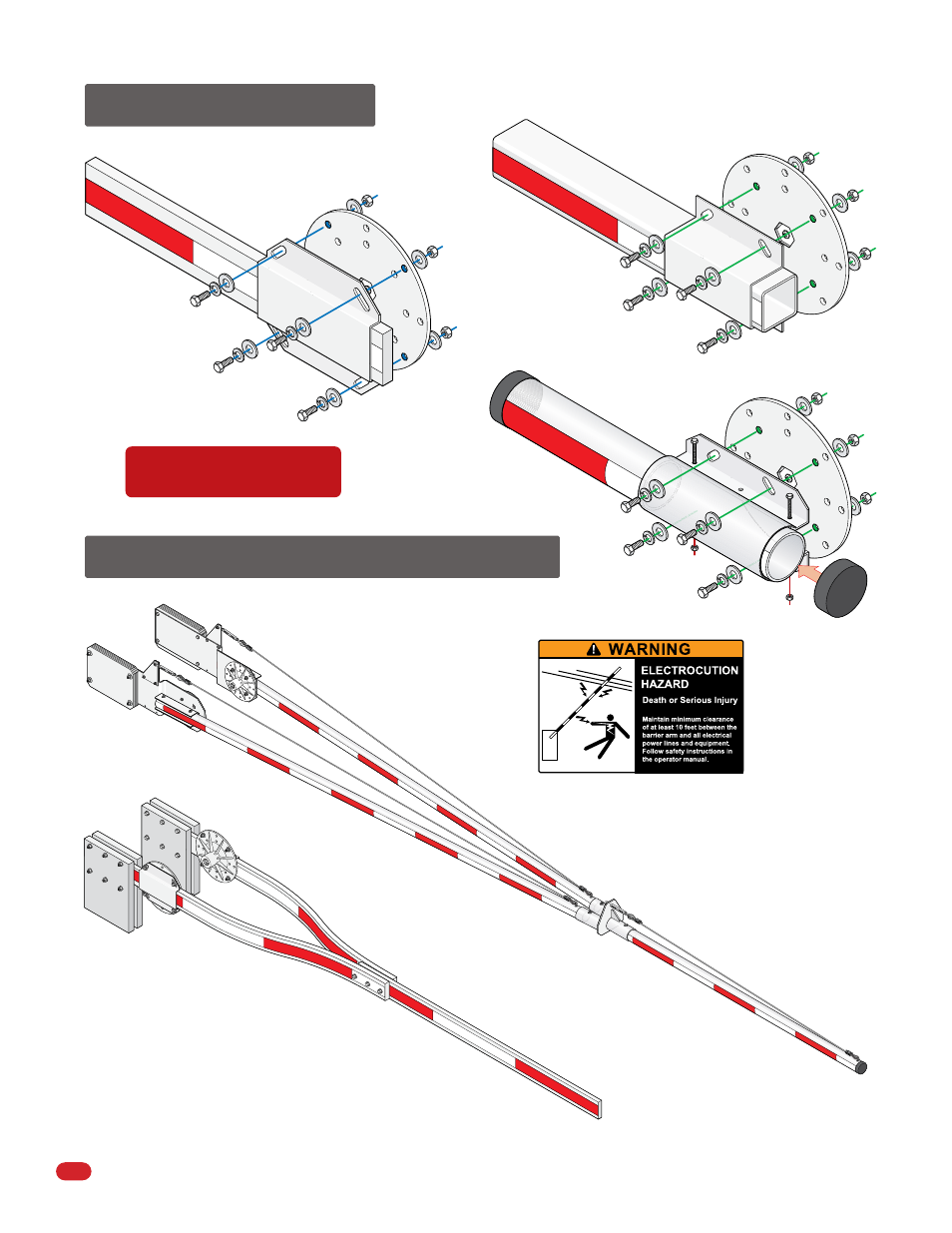

4.2 Mounting Arm
(
s
)
4.3 1602 3-Piece Arm Assemblies
Test hub UP and DOWN position
before installing arm(s).
Aluminum Arm Bracket
Plastic Arm Bracket
Wood Arm Bracket
20 Ft. Wood Arm Assembly
14 Ft. Arm
14 Ft. Arm
12 Ft. Arm
20, 24 and 27 Ft.
Aluminum Arm
Assembly
The two arms must
extend back 14 inches
behind the hub to install
the counterbalance
weights.
Connect weights together
with 6 bolts on each arm.
Connect the 3 arms
together with 3 bolts.
See instruction sheet that comes with
the arm kit for assembly.
Counter-balance weights are mandatory and MUST be installed on any style arm.
Make sure NO overhead high voltage power wires are
within 10 ft of the aluminum arm in the raised position.
Keep all debris (Snow and Ice)
off of arms during operation.
Damage could occur to operator.
Counter-balance
Weights
