1601-065-L-3-13

24

Operator will
lower the arm
ONLY after the
last vehicle
activates
then clears
the down loop.

Operator will
override
multiple
DOWN
commands.

Arm will
remain up

while counting
the vehicles
activating
the down loop.

Operator will count each valid UP command from each vehicle as they enter

.

This option allows the access
control device and the barrier gate
operator to have multiple vehicles
in the area between them. The
operator will count all the valid UP
commands received and require a
down loop activation for each one.
The arm will lower only after the
last vehicle activates then clears the
down loop.

Remote transmitters are NOT
recommended for this option
because one vehicle’s remote can
accidently be pressed multiple
times
which will get counted by the
operator as multiple vehicles.

Access Control Device

1

1

4

3

5

5

Note:
If an UP command is given
while the arm is lowering, the
arm will raise.

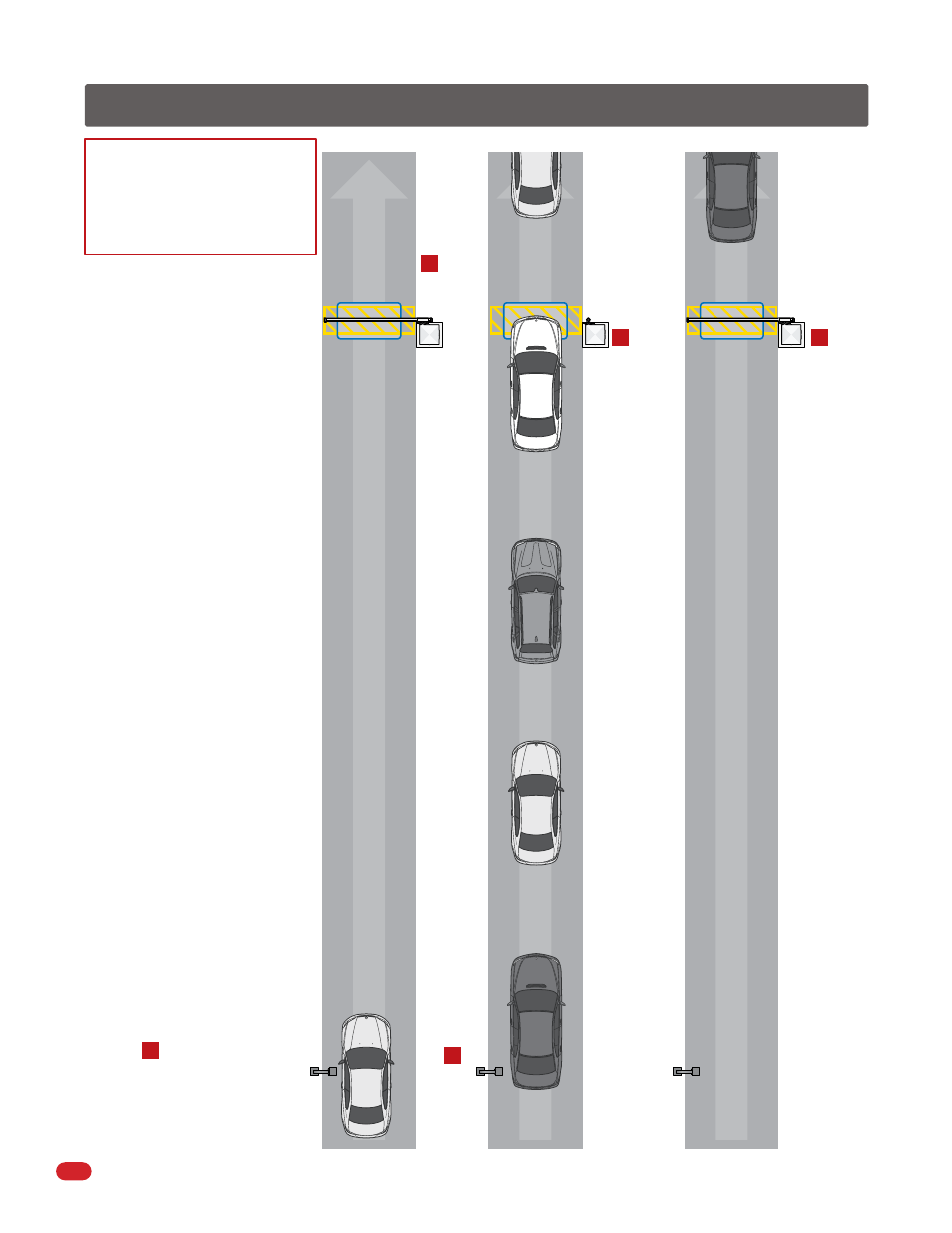

Option 2 - Override Multiple DOWN Commands

SW2, Switch 3 ON

Valid UP command given

Operator
will raise
arm

1

2

3

4

5

Basic operator UP/DOWN cycle:

A.

Valid UP command from the

access control device will raise arm.

B.

Vehicle activating and clearing

the down loop will lower the arm.

Down Loop

Down Loop

2

Down Loop
