2 - 10

Jog

(J6 pins 5, 8)

Jog is a maintained input. When Jog
is closed, the MLP–Trim sends a
Speed Command Out signal to the
drive at the selected jog speed. As a
maintained input, Jog is only active
when the operator device is closed.

NOTE: Close the R–Stop and

F–Stop inputs and open the
Run input, prior to entering
Jog. If you are only using
one of the Stop inputs, wire
short the other Stop input to
common or the MLP–Trim will
not enter Jog.

R–Stop

(J6 pins 6, 8)

R–Stop is a momentary input. When
it is opened, the MLP–Trim ramps to
a zero Speed Command Out at the
specified deceleration rate. As a
momentary input, R–Stop is internally
latched and does not need to be
maintained by an operator device.

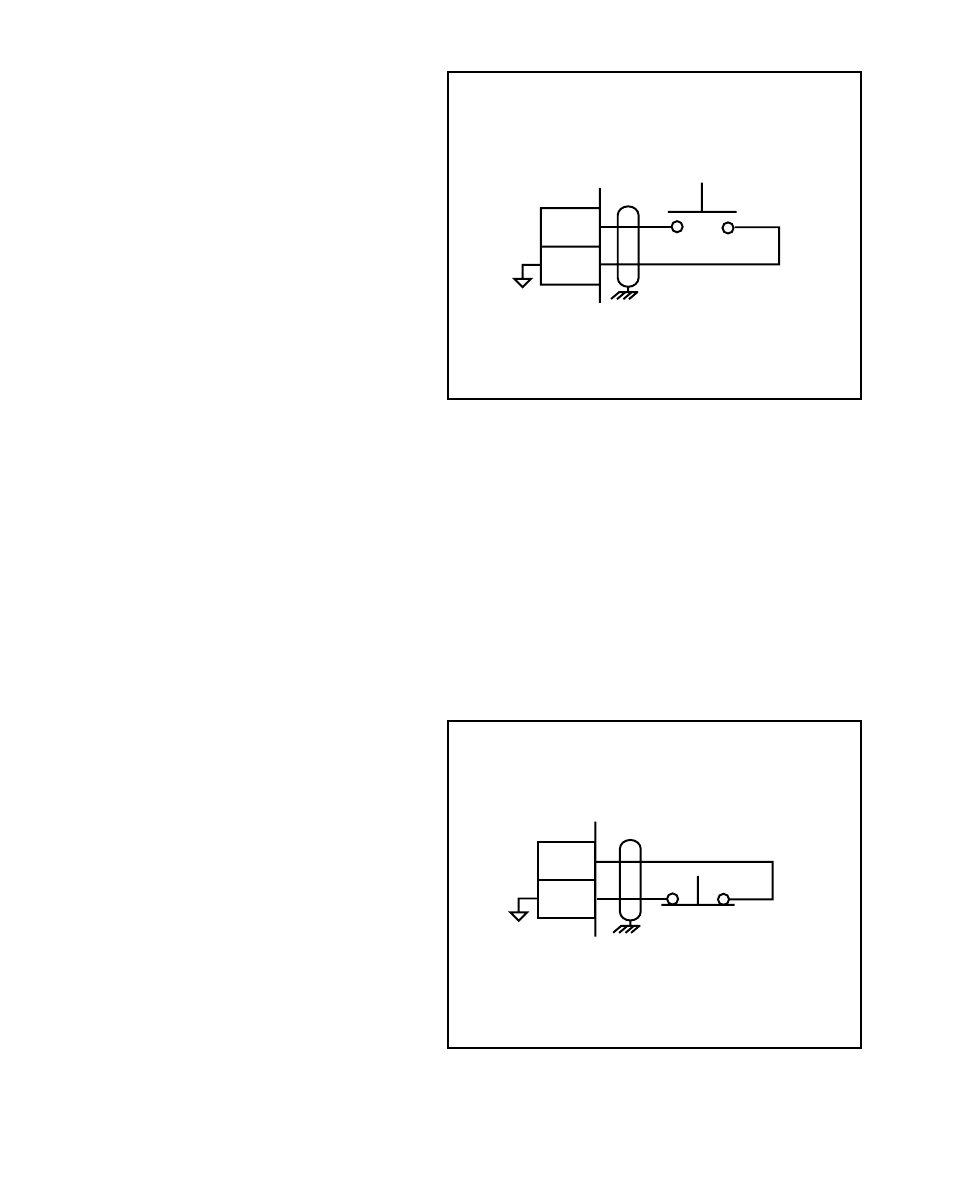

Figure 2-9 Jog

Figure 2-10 R–Stop

JOG

5

8

J6

R-STOP

6

8

J6
