EXAMPLES OF MLP–TRIM

APPLICATIONS

Figure 1-1 is an example of a Master mode of operation for a pump application. The
scaling format allows the operator to enter a setpoint in Engineering Units of gallons per
minute. The MLP–Trim compares the sensor shaft feedback to the scaled setpoint and
calculates any speed error. When the MLP–Trim finds speed error, the control
algorithm adjusts the Speed Command Out to the motor drive and reduces the error to
zero.

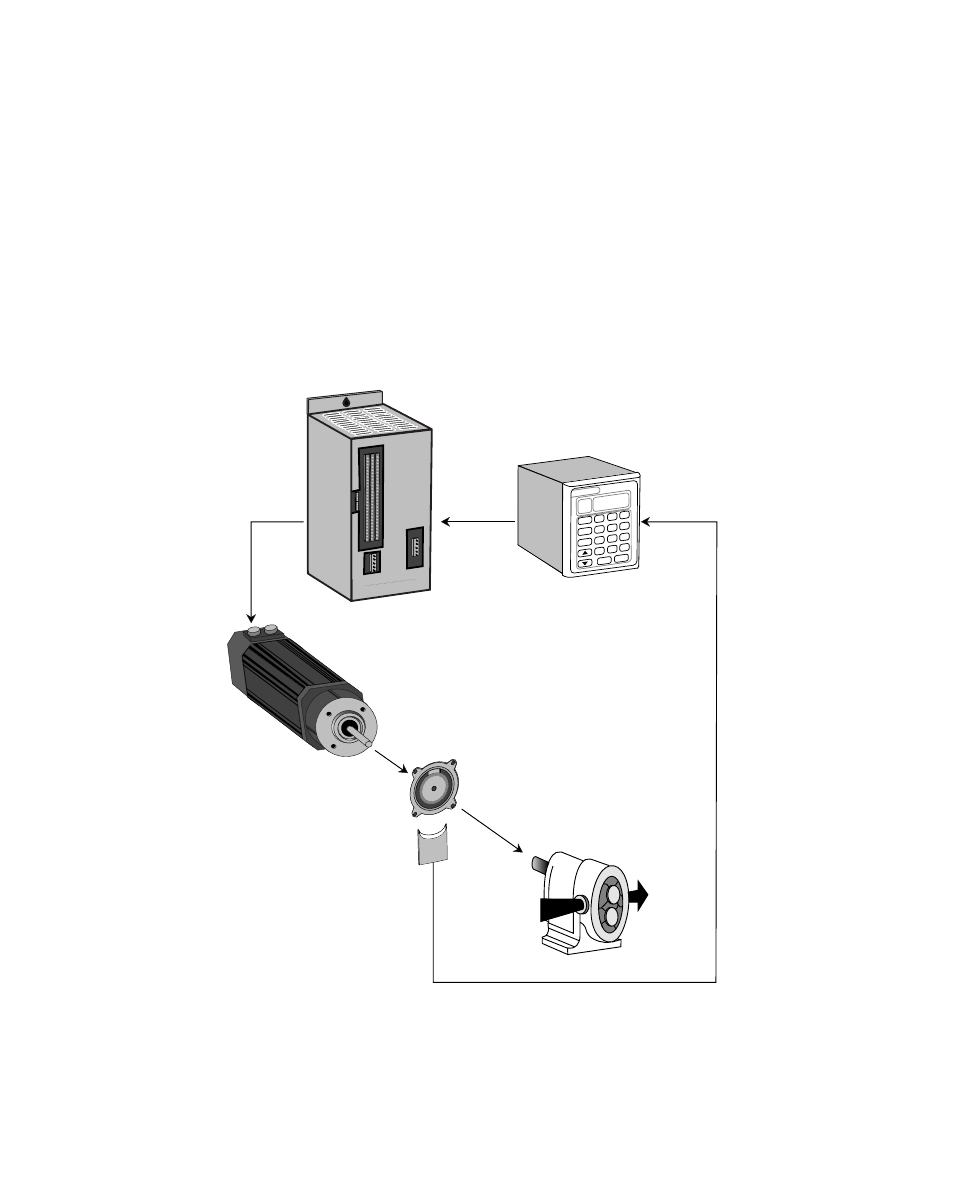

Figure 1-1 MLP–Trim Master Mode

Motor Drive

MLP–Trim

Motor

Sensor

Pump

Feedback Frequency

Speed

Command

Out

Contrex

CODE

SELECT

SET

POINT

TACH

7

8

9

4

5

6

1

2

3

0

.

ENTER

CLEAR

ontrex

C
