3 - 67

Output Monitoring

These MPs monitor the MLP–Trim's outputs.

MP-47 SPEED COMMAND OUT

The Speed Command Out (MP-47) displays the level of calibrated full scale analog
output to the motor drive (J3 pin 1). The Speed Command Out (MP-47) is displayed as
a percentage; 100 represents 100% of the calibrated full scale analog output.

MP-56 LOGIC OUTPUTS

The Logic Outputs (MP-56) displays the status of the Dig_Out1 and the Dig_Out2
outputs. The number “1” indicates an inactive or de-energized (logic high) level. The

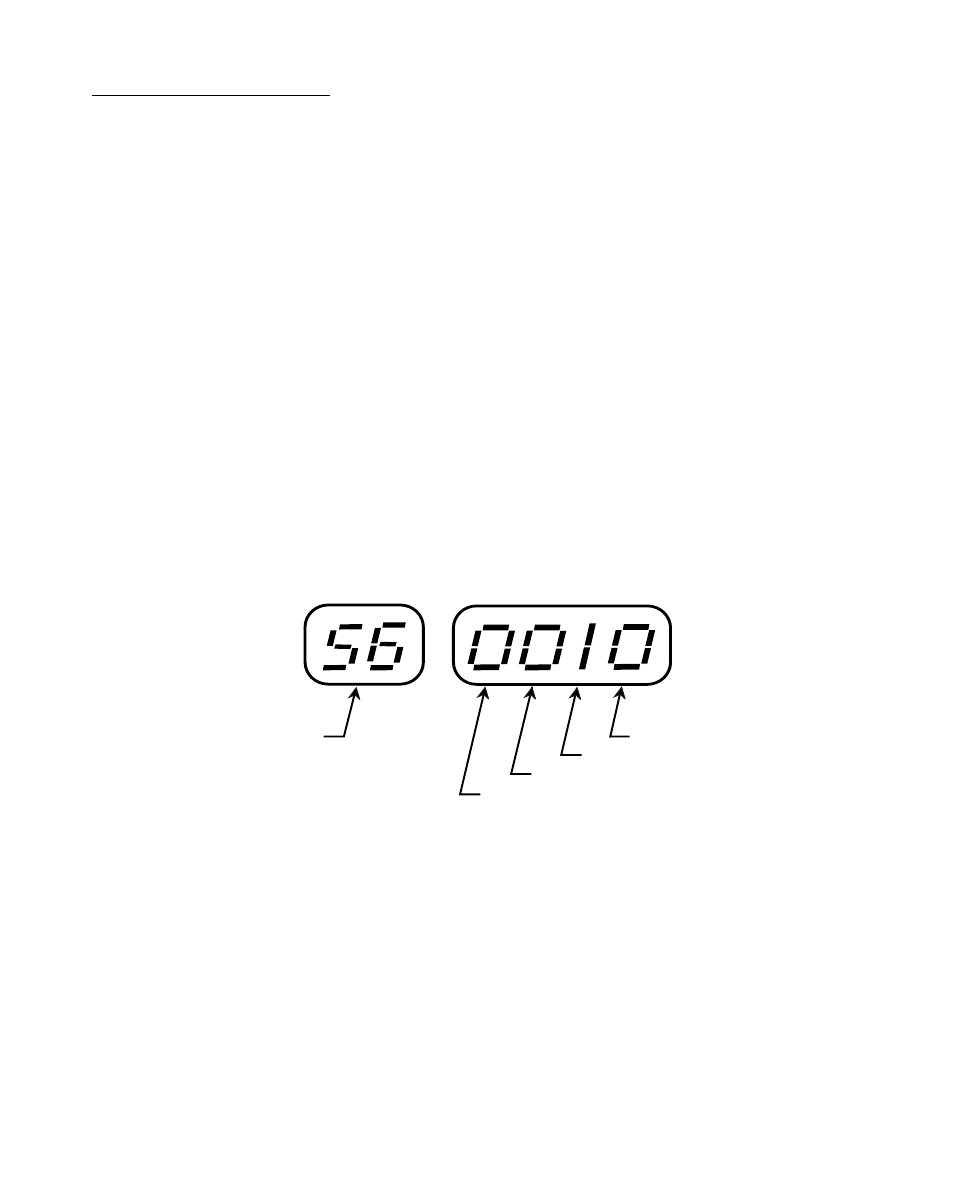

number “0” indicates an active or energized (logic low) level. In the example below,
“Dig_Out2” is the inactive or de-energized (logic high) level.

Dig_Out1 (J6 Pin 15)

Dig_Out2 (J6 Pin 16)

Not Used

Code
