MP-59 FREQUENCY OVER FLOW COUNTER
The Frequency Over Flow Counter (MP-59) is a counter that increments each time the frequency
input to the MLP–Trim causes an overflow. To reset the counter to “0”, press the Clear key.
CP-60 OPEN LOOP
If CP-60 is set to "1", then the J6 Pin 12 input acts as the Scroll Down input. If CP-60 is set to
"2", then this input is the Open/Closed Loop input.
CP-61 DIRECT ENABLE
In the Direct mode of operation, the Speed Command output from the MLP–Trim that is
connected to the motor drive can be set directly. Direct mode is an open-loop mode of
operation. Use Direct Enable (CP-61) to either enable or disable the Direct mode.
Enter "1" to enable the Direct Mode.
Enter “0” to disable the Direct Mode.

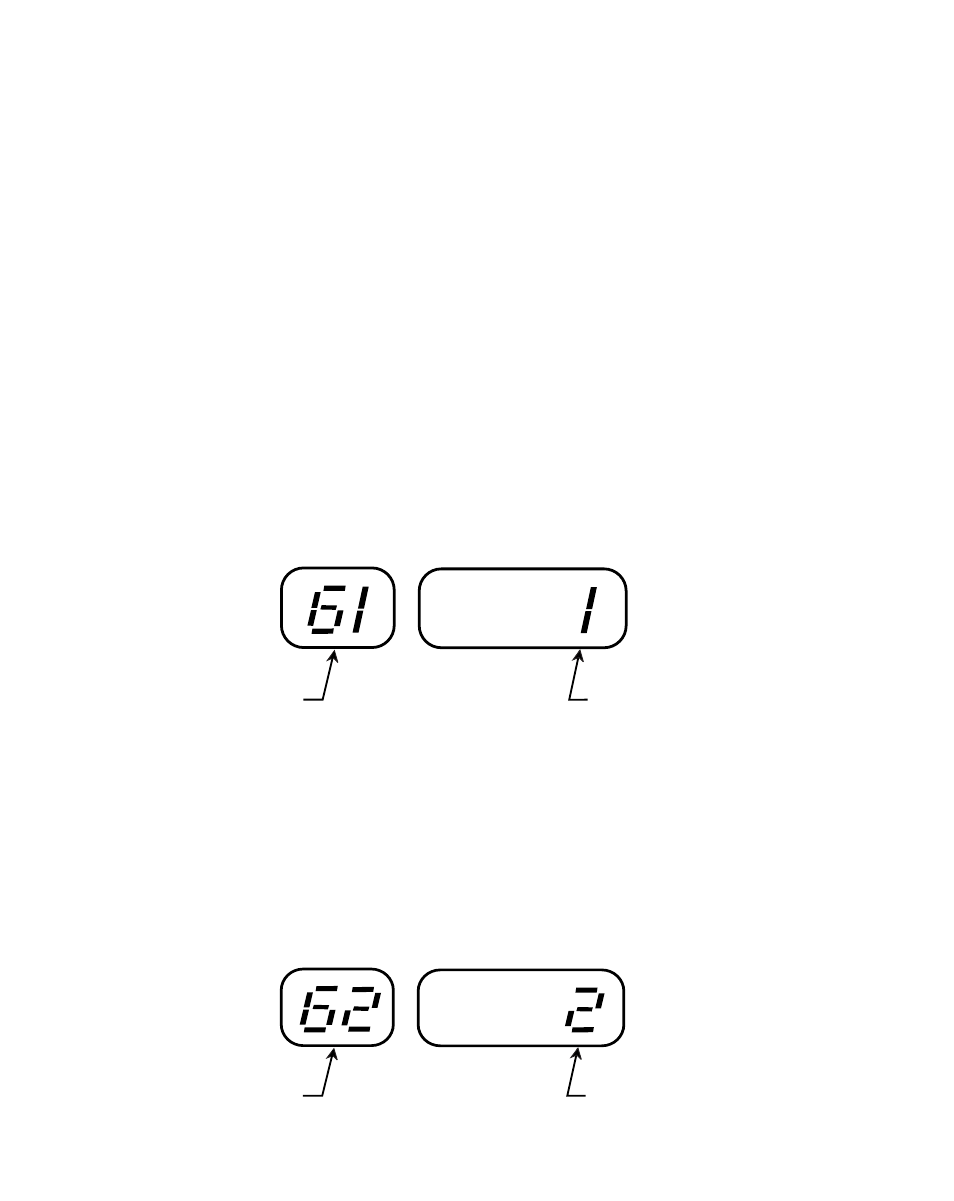

Enabled Code
CP-62 INVERSE SCALING
Use Inverse Scaling (CP-61) to select either the Standard or the Inverse setpoint scaling format.
Enter “2” for Inverse Scaling.
Enter "1" for Standard Scaling.
Inverse Scaling Code
