Common Components
Item no. Part no. Description
6 48004 Brine Well Cap
10 60626 Meter
11 60049SS Bypass

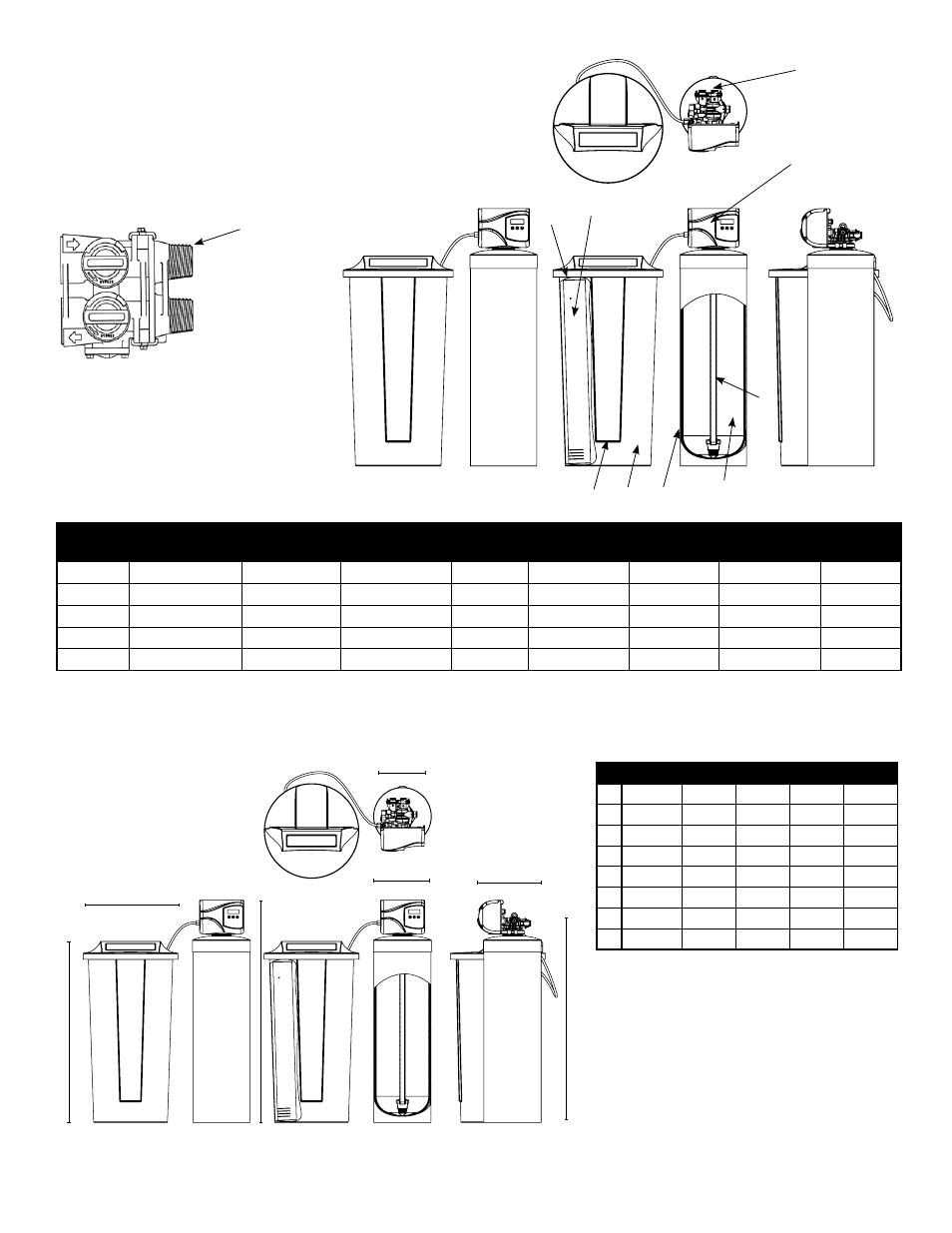

Parts Breakdown - Twin Tank
Part
number
Model
Description
Distributor
(1)
Valve
(2)
Tank
(3)
Brine Tank
(4)
Grid
(5)
Safety Float
(7)
Resin
#21502
2402 HST75 19478 HT62SV-08 100008-2 100074 N/A 136230 0.75 CF
2403 HST10 19478 HT62SV-09 100016-2 00074 N/A 136230 1.0 CF
2404 HST15 19477 HT62SV-10 100029-2 100074 N/A 136230 1.5 CF
2405 HST20 19477 HT62SV-12 100400-2 100074 95009-21 136230 2.0 CF
2406 HST25 19477 HT62SV-14 114508 100074 95009-21 136230 2.5 CF
3
Resin
1
2
10
4
7
12
5
6
Dimesions (inches)
HST75 HST10 HST15 HST20 HST25
A 36 36 33 33 33
B 15 15 15 15 15
C 8 9 10 12 14
D 50 54 60 58 56
E 15 15 15 15 15
F 46 50 56 54 52
G 2 2 2 2 2
 A
 C  E
 G
 F
 D
 B
2400 HSC75 HT62SV-09C 95233-2-1
2401 HSC10 HT62SV-10C 100014-2-1
