Hydrotech 6200 SXT Automatic Meter Initiated Water Softener - Manual (Page 14)

13

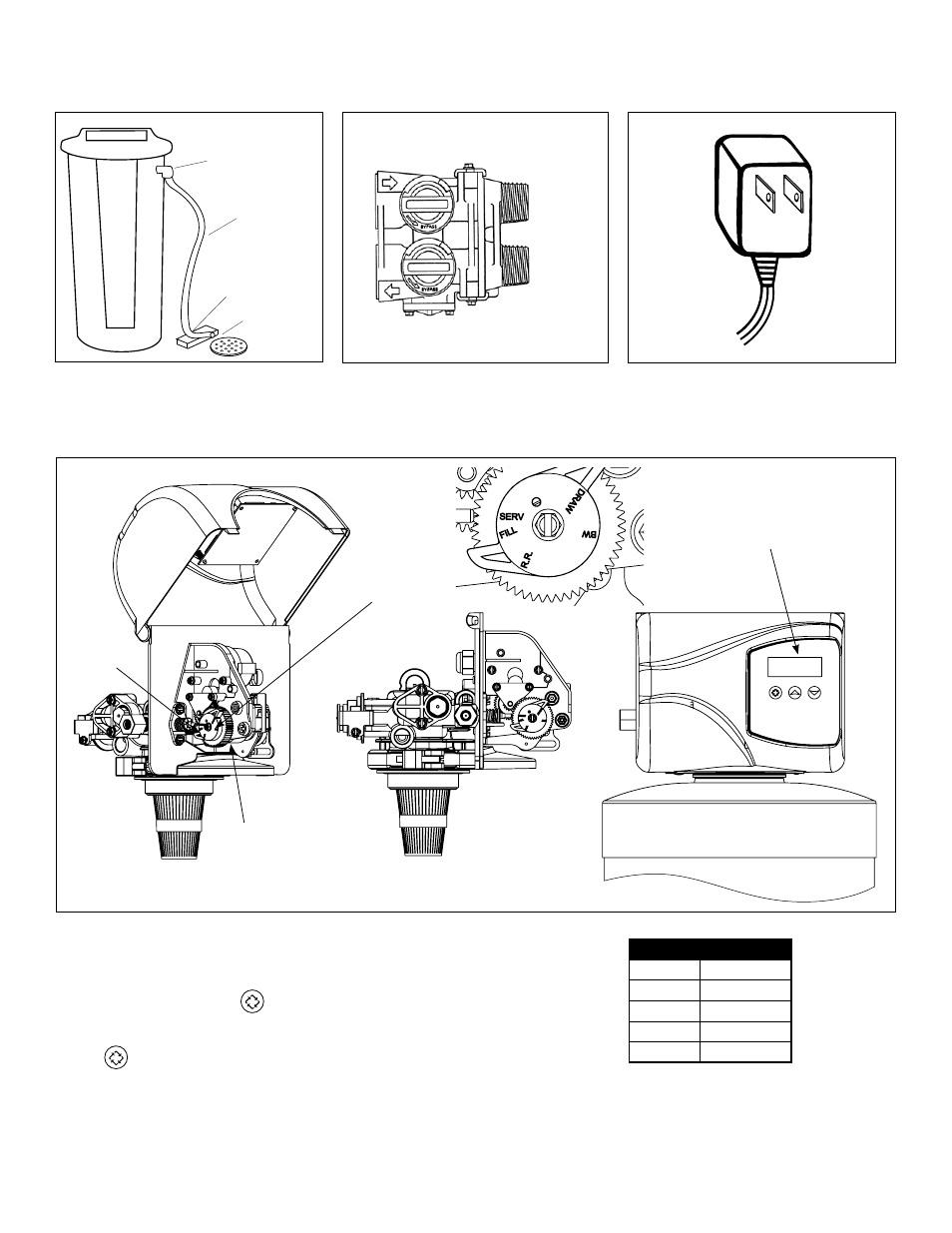

Overflow Fitting
Drain Tubing
Air Gap
Drain
Secure hose in place
8. Make sure the bypass valve is in the
service position.
9. Plug the 24-volt transformer into a
120 VAC 60 Hz outlet.
10. This valve has four positions: 1) Brine/
Rinse 2) Backwash 3) Rapid Rinse
and 4) Brine Refill. When the valve
is in the Service position
must
be pressed and held for 5 seconds
before it activates. Press and hold
the
pic for 5 seconds to ad-
vance the valve into the “1” Brine/
Rinse position. Press once more to
advance to the “2” position.
outlet
intlet
Circuit Board Screen
Brine Cam
Position Label
Brine
Valve
Cycle Step Abbreviation
BD Brine Draw
BW Backwash
RR Rapid Rinse
BF Brine Refill
SV Service
The valve position during regenera-
tion and servicing can be checked
in the circuit board screen as well
the position label on the cam.
