37
Common Components
Item no. Part no. Description
1 19495 Distributor
4 6200C Cabinet
5 48004 Brine Well Cap
6 13623-2 Safety Float
7 13308 Hose Barb*
10 60626 Meter*
11 18706-02 Yoke*
12 60049SS Bypass
*not shown

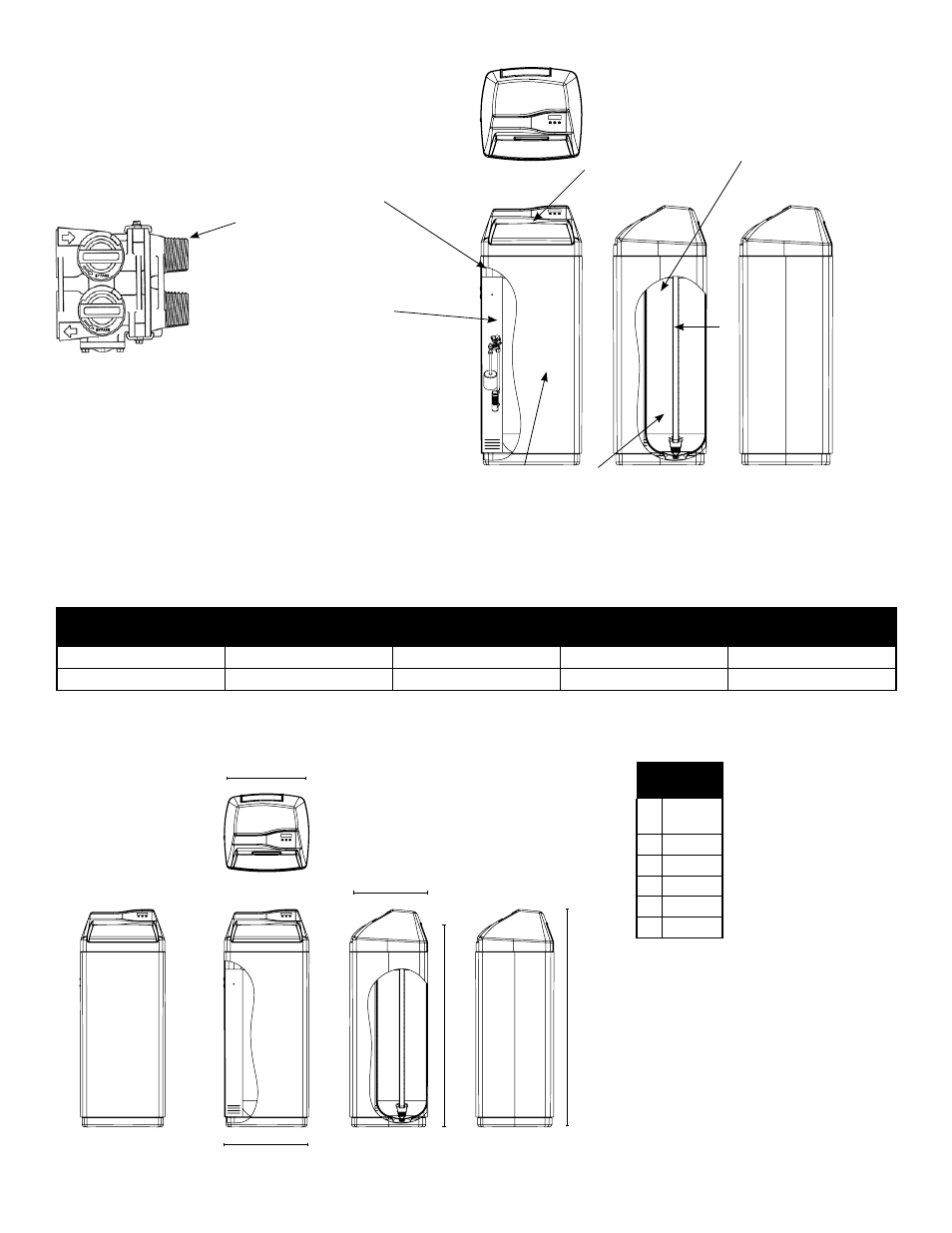

Parts Breakdown - Cabinet
Part
number
Model
Description
Valve
(2)
Tank
(3)
Resin
#21502
2400 HSC75 HT62SV-09C 95233-2-1 0.75 CF
2401 HSC10 HT62SV-10C 100014-2-1 1.00 CF
12
4
3
Resin
2
1
5
6
Dimesions
(inches)
HSC75/
HSC10
A 44
B 17
C 17
D 38
E 17
 A
 C
 E
 D
 B
2400 HSC75 HT62SV-09C 95233-2-1
2401 HSC10 HT62SV-10C 100014-2-1
