Replacing Brine Valve
1. Open the front cover of the powerhead, unscrew the
brine cam and push the brine valve in order to remove
the cam.
2. Remove the two screws from the grey brine valve bracket
and remove it from the valve back plate.
3. Pull brine valve from injector body. Also remove and dis-
card o-ring at bottom of brine valve hole.
4. Apply silicone lubricant to new o-ring and install at bot-
tom of brine valve hole.
5. Apply silicone lubricant to o-ring on new valve assembly
and press into brine valve hole. Be sure shoulder on bush-
ing is flush with injector body.
6. Reinstall the brine valve bracket. Make sure to use self
tapping screw at the bottom of the bracket. Reinstall
brine cam. Close the front cover of the control valve.

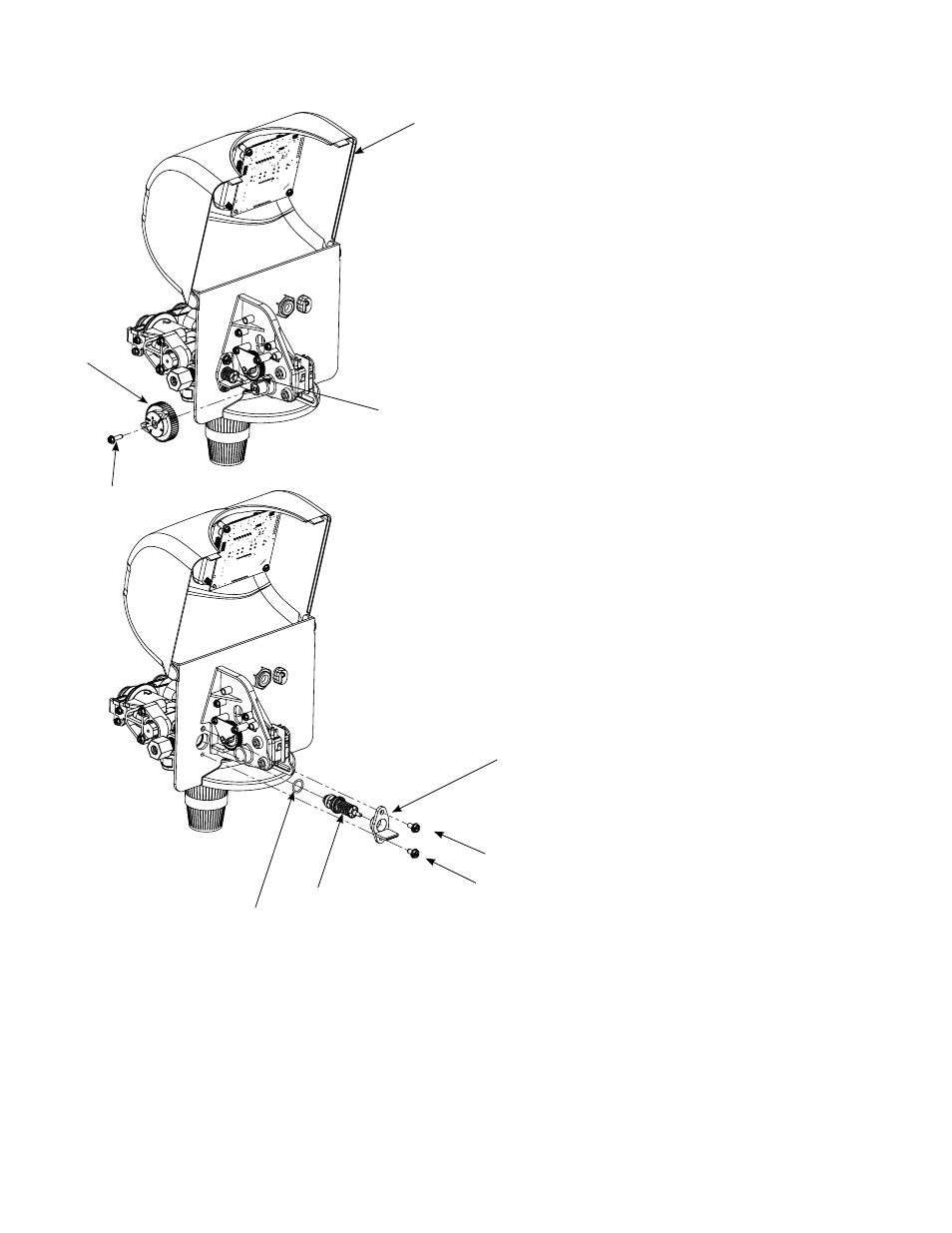

Front Cover
Brine Cam
Screw
O-ring
Brine Valve
Self tapping screw
Screw
Bracket
Brine Valve
