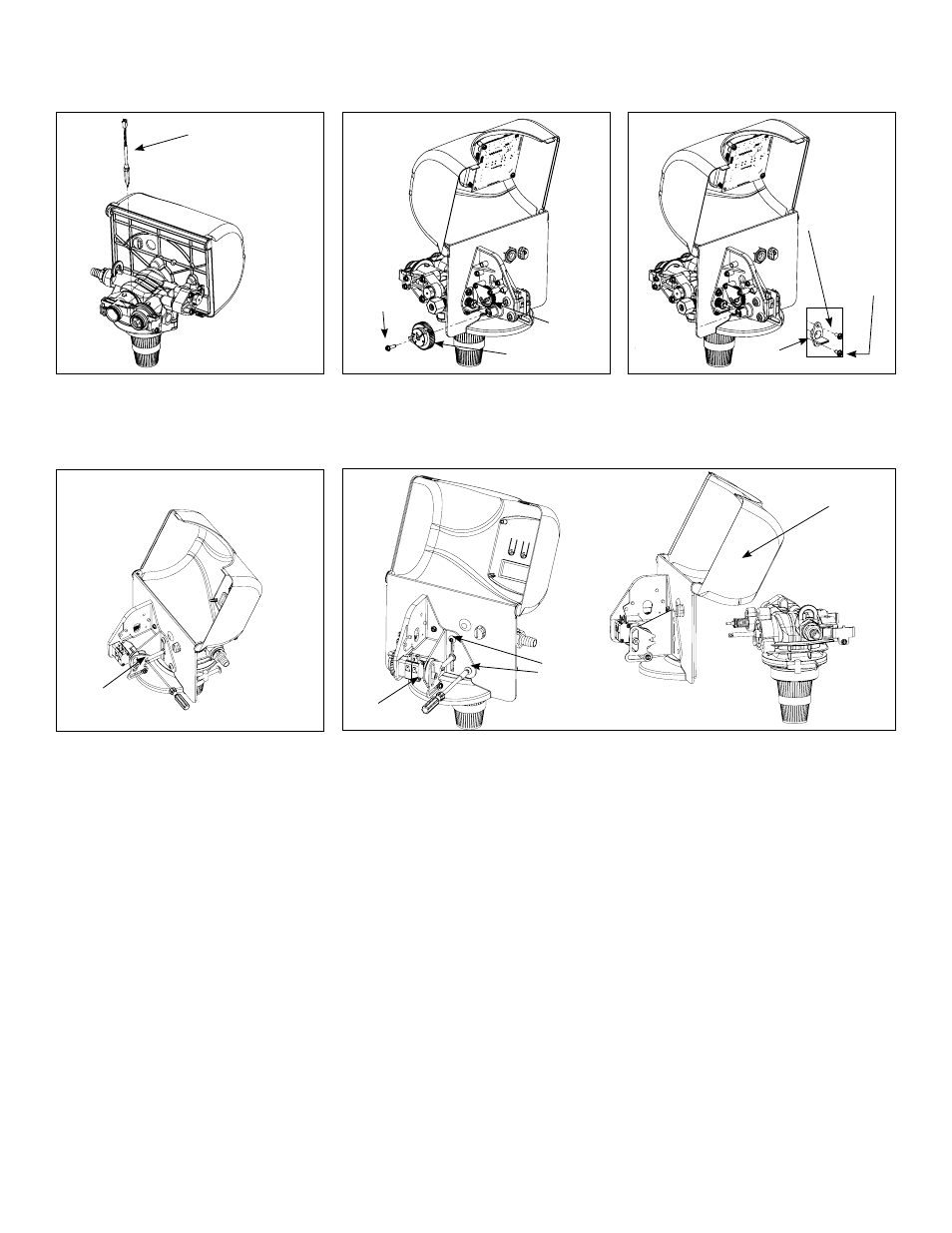

Timer Replacement

5. Remove the three screws from the front bracket. The entire timer assembly will

disconnect from the valve body.

6. Replace the timer with a new one. Attach the three screws to the front bracket

and piston screw to the piston rod. Reinstall the brine valve bracket. Reinstall
brine cam. Close the front cover of the control valve.

7. Reconnect meter cable

Piston screw

Timer Assembly

Self
tapping
screw

Screw

Bracket

Brine
Valve

Brine Cam

Meter Cable

1. Disconnect the meter cable from the

meter.

2. Open the front cover of the control

valve, unscrew the brine cam and
push the brine valve in order to re-
move the cam.

3. Remove the two screws from the

grey brine valve bracket and re-
move it from the valve back plate.

4. Remove the piston screw from the

piston rod.
