Hydrotech 6200 SXT Automatic Meter Initiated Water Softener - Manual (Page 29)

28
Dwg # Part # Part Description
82 19474-01 Harness, Power, SXT
84 19791-01 Cable Meter
36 42766-02 Circuit Board, SXT
37 17020 Screw
Dwg # Part # Part Description
37 17020 Screw, Stl Hex, 6-20 X 3/8
51 040050 Screw, Hex Washer
34 42919 Cam, Brine
85
43107 Label, Cam Position, Softener
43121 Label, Cam Position, Filter
24 13314 Screw, Slot, Hex, 8-18 X 0.60
87 18280 Collector, Top, 1"
48 19619 Bracket, Idler
47 43298 Gear Idler
42 10218 Switch, Micro
Dwg # Part # Part Description
28 19998 Shaft, Drive
27 40057 Screw, Hex Washer Head
26 40254 Clamp, Ring
92 60503 Clamp Ring Assembly
Dwg # Part # Part Description
40
43052-01 Cover, Black
43052-02 Cover, Cream
54 10231 Screw, Slot Hex, 1/4-20 X 1/2
49 19597 Motor, 24V, 50/60 Hz
35
43053-01 Backplate, Black
43053-02 Backplate, Cream
41 19581 Bracket, Drive
43 10302 Insulator, Limit Switch
32 019688 Link, Piston Rod
31 019493 Shaft, Drive
55 13363 Washer
37 17020 Screw, Hex, 6-20 X 3/8

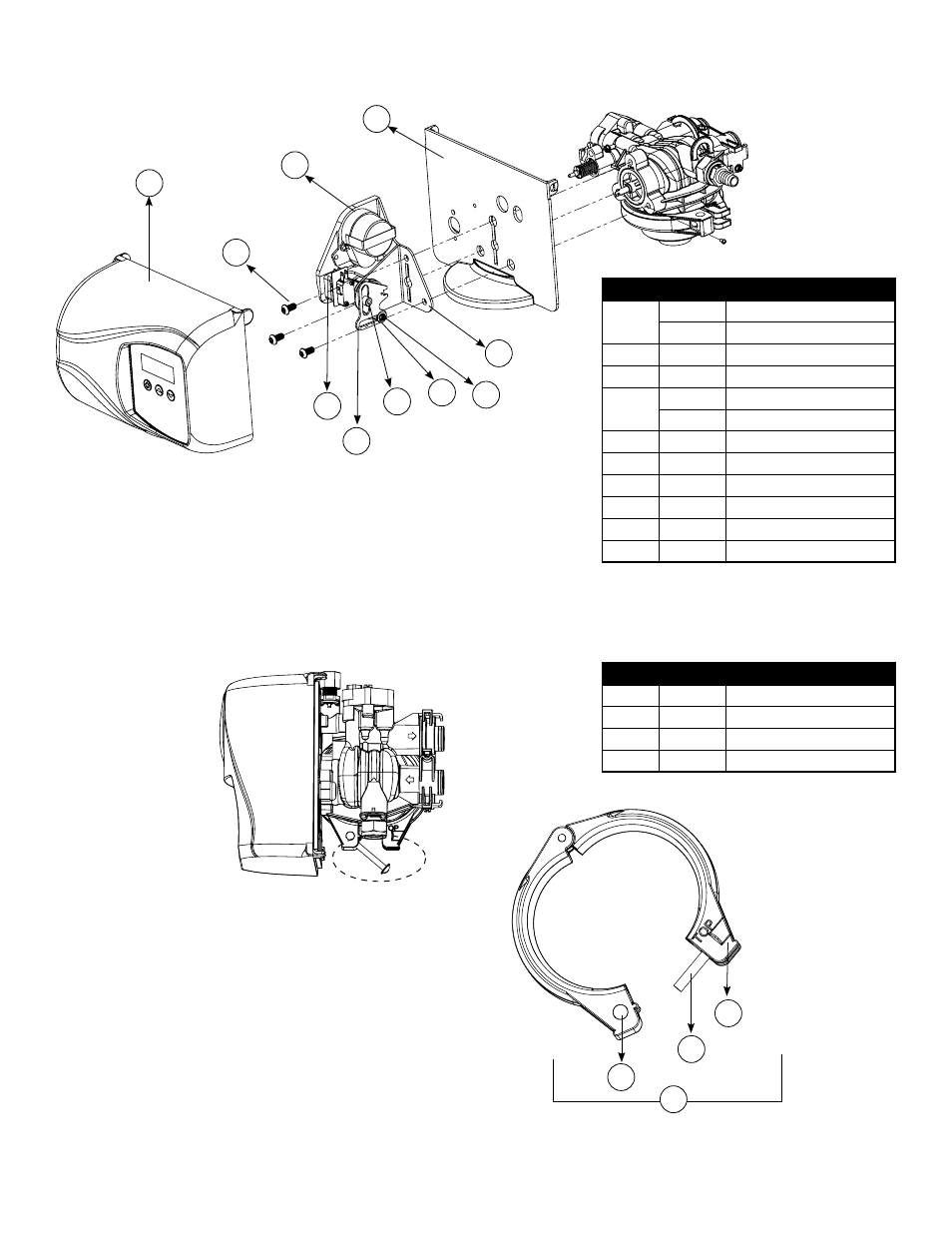

6200 Service Kits – Other Parts Continued
28
27
26
92
40
54
49
41
35
37 55
31
32
43
