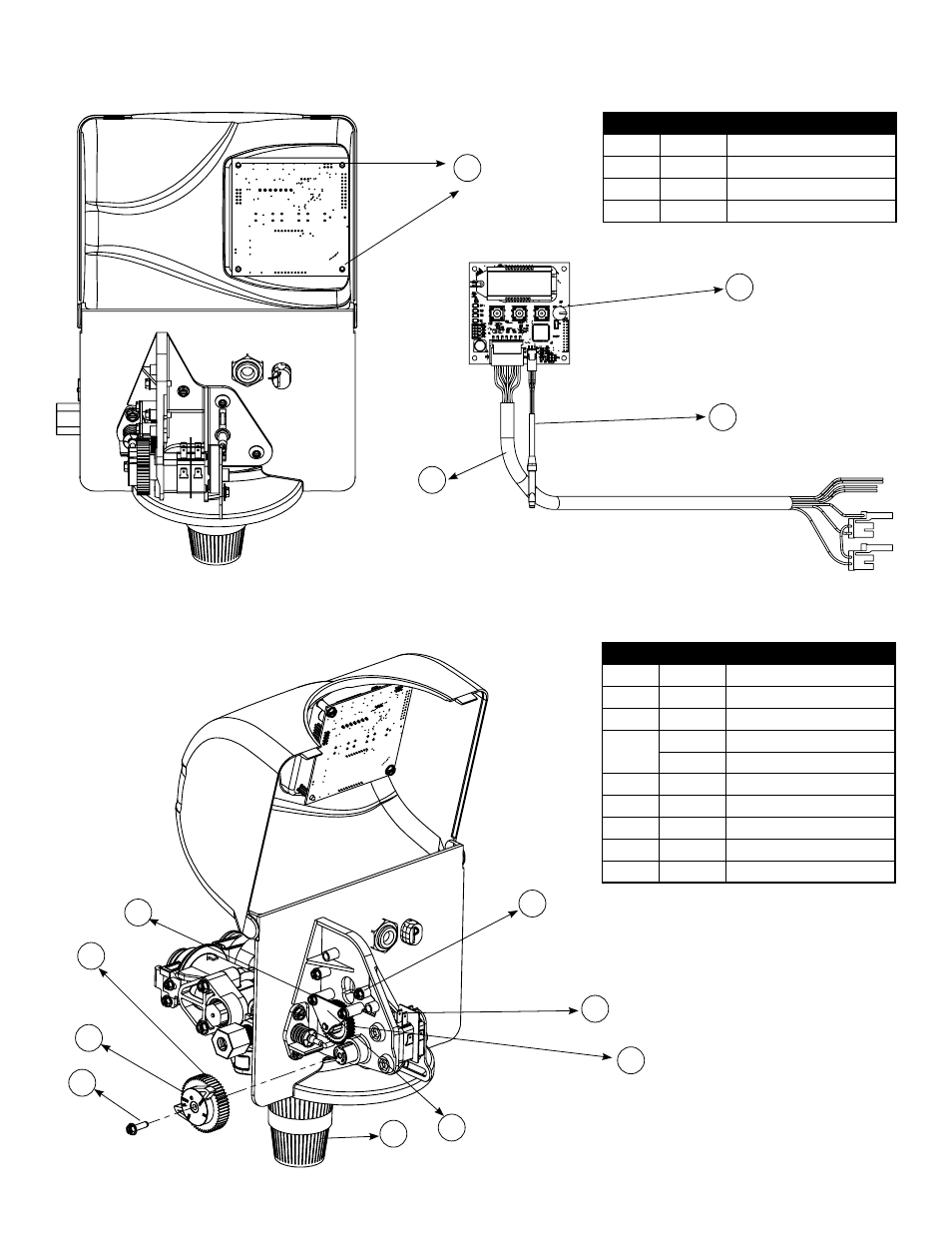

6200 Service Kits – Circuit Board
Dwg # Part # Part Description
82 19474-01 Harness, Power, SXT
84 19791-01 Cable Meter
36 42766-02 Circuit Board, SXT
37 17020 Screw
6200 Service Kits – Other Parts
Dwg # Part # Part Description
37 17020 Screw, Stl Hex, 6-20 X 3/8
51 040050 Screw, Hex Washer
34 42919 Cam, Brine
85
43107 Label, Cam Position, Softener
43121 Label, Cam Position, Filter
24 13314 Screw, Slot, Hex, 8-18 X 0.60
87 18280 Collector, Top, 1"
48 19619 Bracket, Idler
47 43298 Gear Idler
42 10218 Switch, Micro
37
82
37
85
24
87
48
47
42
51
34
84
36
