Hydra-Tech S3CML User Manual
Page 2

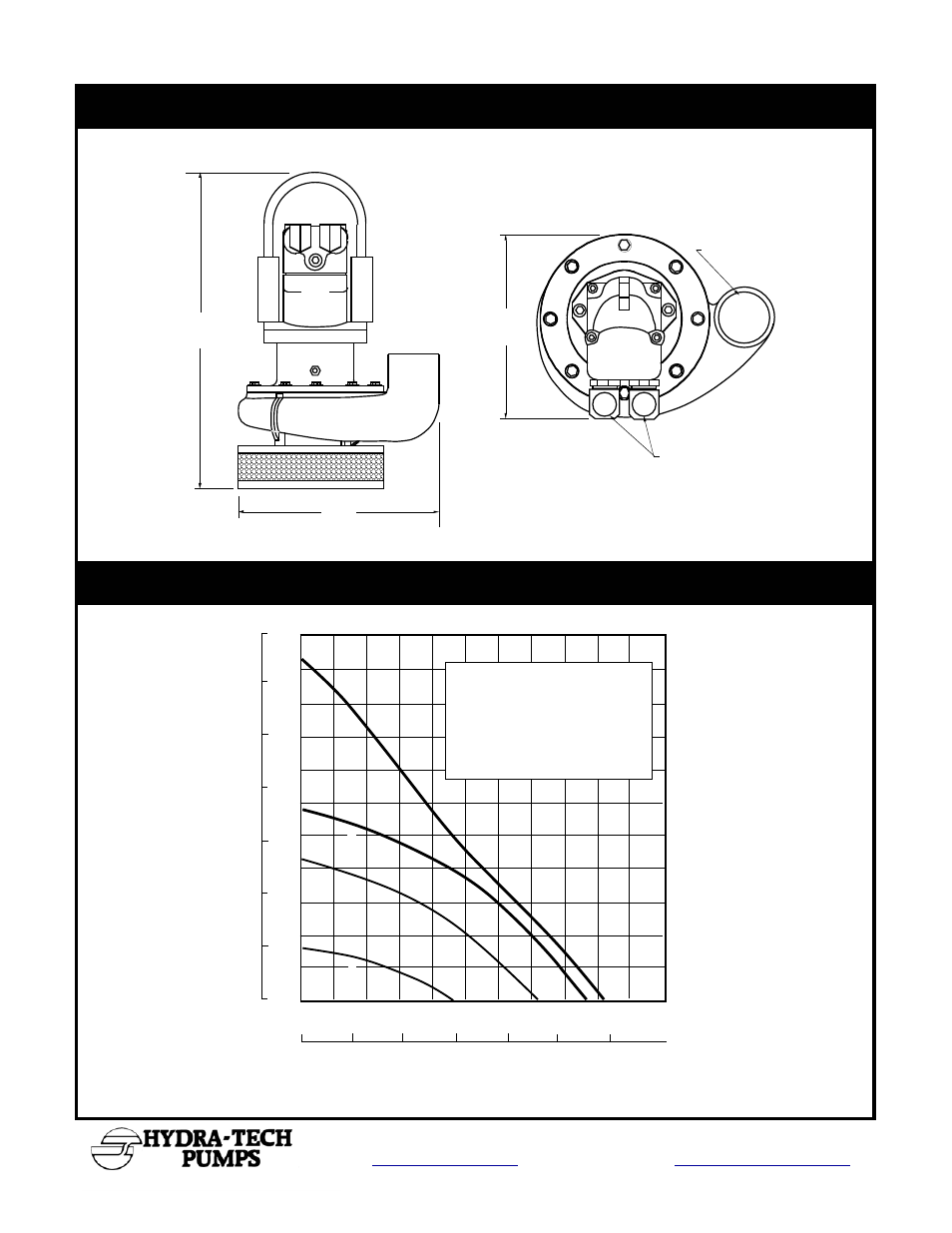

Model S3CML Overall Dimensions
S3CML Typical Performance
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website
:
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
11 3/4"
(30 cm)
16 5/8"
(42 cm)
10 1/4"
(26 cm)
Hydraulic Ports
2" NPT(F) Discharge
0
440
400
360
320
280
240
200
160
120
80
40
40
80
120
U.S.G.P.M.
Liters/Minute
Feet
Meters
300
CAPACITY
TOTAL HEAD
60
100
20
50
100
150
200
250
300
350
400
450
500
600
900
1200
1500
1800
HYDRAULIC INPUT:
A) 6 GPM @ 550 - 800 PSI
B) 10 GPM @ 1300 - 1900 PSI
C) *12 GPM @ 1750 - 2750 PSI
D) **12.8 - 16 GPM @ 2950 PSI
*Typical Performance with HT25 Power Unit
** Typical Performance with HT35 Power Unit
(Maximum Performance)
D
A
B
C
134
