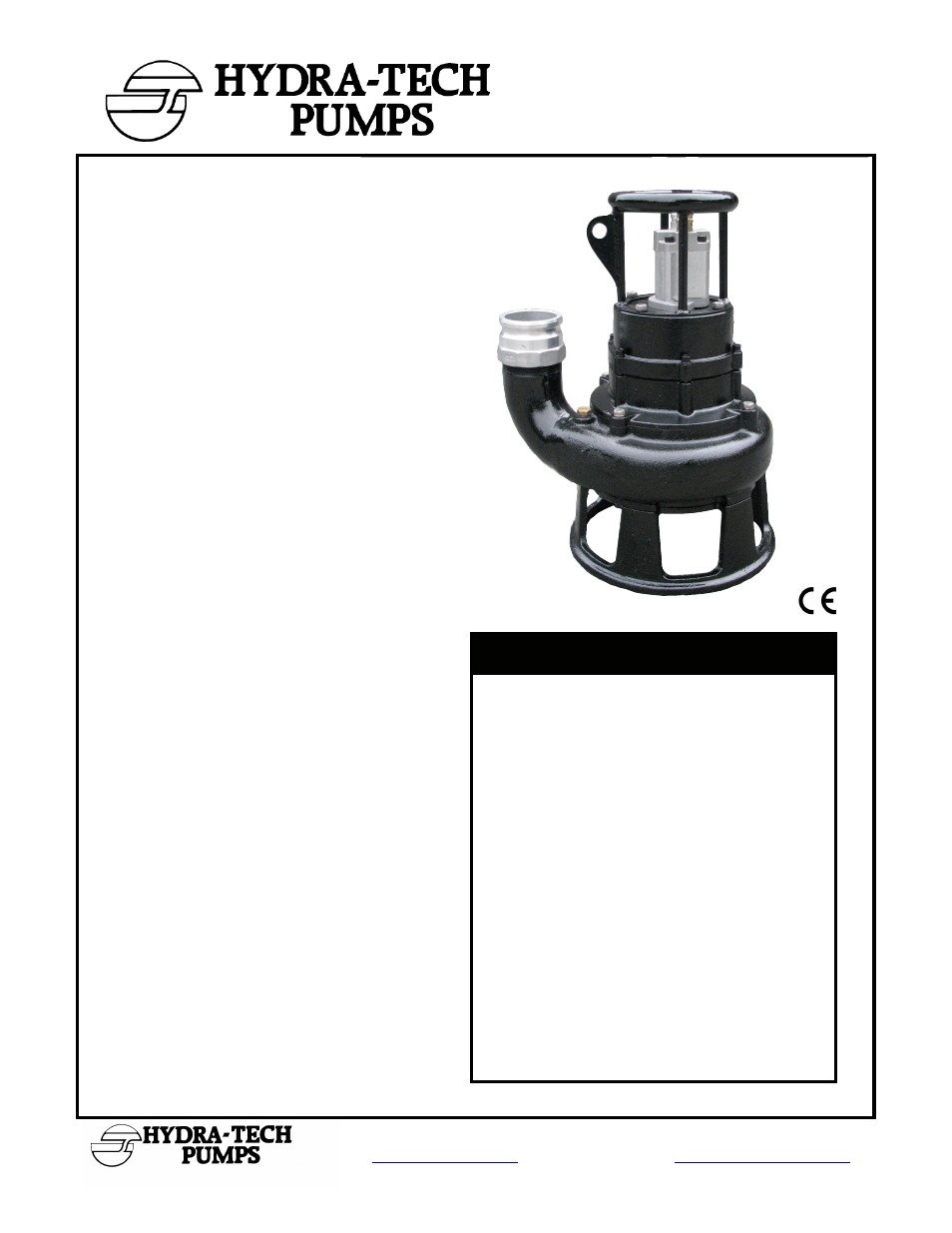

MODEL S4SHR-LP
4” (100 mm) Discharge
4” HYDRAULIC SUBMERSIBLE
SHREDDER PUMP
The S4SHR-LP is a narrow version of
the S4SHR. At only 21.5 inches wide it
will fit through most manholes. This
pump is designed to continuously rip
and shear solids with a 360° shredding
action. Great for municipal , industrial,
agricultural and institutional waste
applications.
FEATURES
•
Open-Vane Shredder Impeller with
Tungsten Carbide Cutting Tip
•
Hardened Macerator Suction Plate
•
Oil Lubricated Seals (can run dry)
•
Variable Speed hydraulic drive
•
Will Fit Into 22” Manholes
•
Safe Hydraulic Drive can be used where
electric power is hazardous or impractical
•
Dependable gear type hydraulic motor
•
Operates with our HT15 to HT35 power
units or other hydraulic power sources
capable of flows of 10 - 15 GPM
A1110
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website
: www.hydra-tech.com E-Mail : [email protected]
WEIGHT:..................................................... 225 lbs. (102 kg)
HEIGHT:.............................................................. 28" (71 cm)
WIDTH (w/Discharge elbow):........................ 21 1/2" (55 cm)
(Across Volute).................................16 3/4" (43 cm)
DISCHARGE:............................................................. 4" NPT
SOLIDS HANDLING:..................................... 3 1/2" (89 mm)
HOSE PORTS:.......................................... 3/4" (-12) SAE(F)
PUMP BODY:...................................................... Ductile Iron
IMPELLER:.......................................................... Ductile Iron
SHREDDER BLADE:................................ Tungsten Carbide
SHAFT:.......................................................... Stainless Steel
SHAFT SEAL:................................ (Upper) Carbon/Ceramic
(Lower) Silicon Carbide
ELASTOMERS:......................................................... Buna N
HYDRAULIC OIL:................. 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:.................................. Max. 15 GPM (57 LPM)
OPERATING PRESSURE:............ Max. 2600 PSI (177 Bar)
POWER SOURCE:....... Any Open Center Hydraulic System
SPECIFICATIONS
Specifications are subject to change without notice
