13.10 CURRENT OUTPUTS functional class

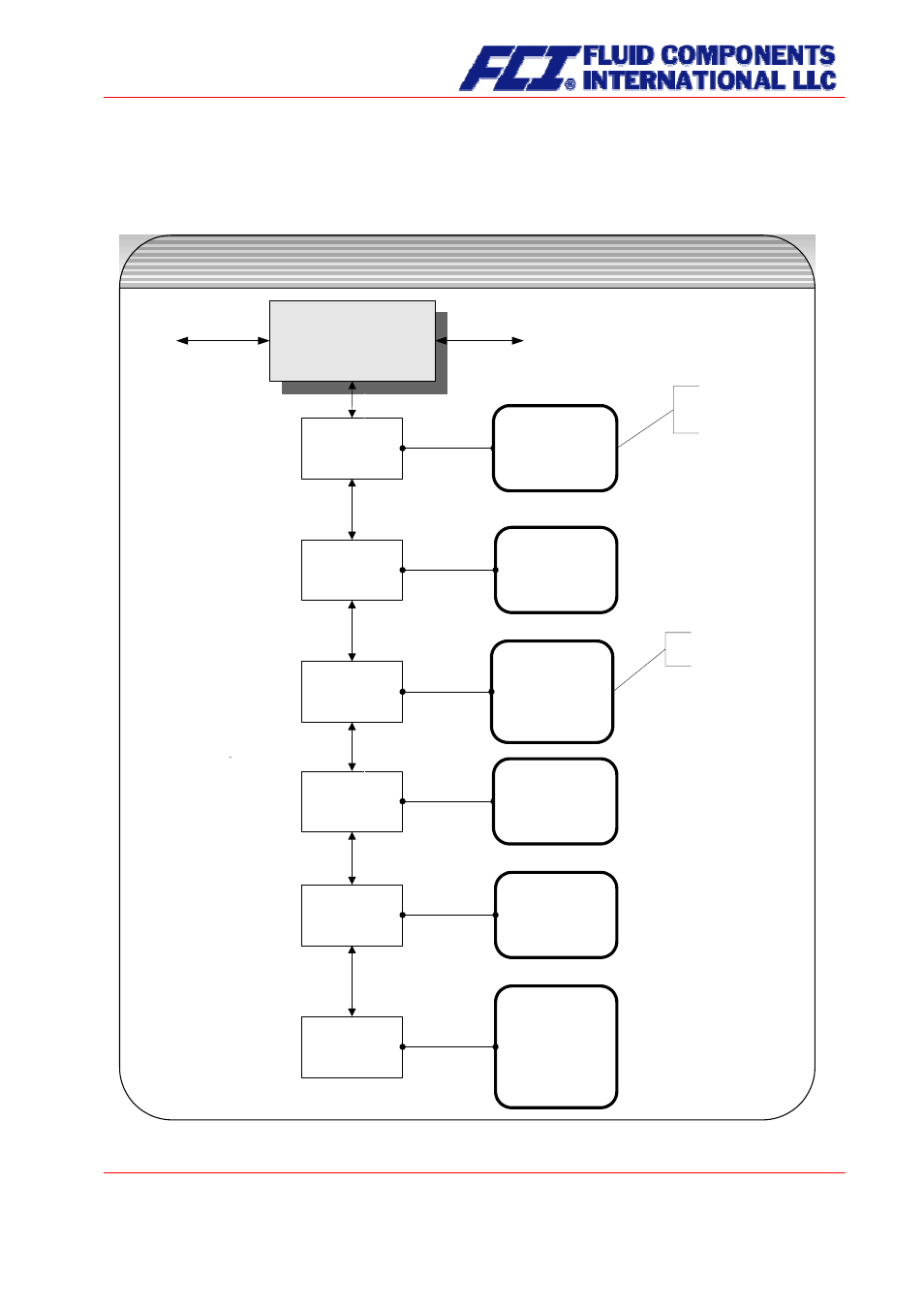

The CURRENT OUTPUT functional class allows the operator to perform the settings for the current out-
puts of the transmitter.
CURRENT OUTPUTS
CURRENT OUTPUTS
Curr. output I1
0/4 - 20 mA
Curr. output I1
0/4 - 20 mA
Curr. output I1
alarm
Curr. output I1
alarm
CURRENT OUTPUTS
functional class
Curr. output I1
[4 - 21,6mA]
_______________
0 - 21,6 mA
4 - 21,6 mA
4 - 20,5 mA
I1: alarm
[>22mA]
_______________
<3.8mA
>22 mA
not used
Curr. output I1
assignment
Curr. output I1
assignment
I1 assigned to
[Mass flow.]
______________
Mass flow.
Volume flow.
Density
Temperature
Curr. output I2
0/4 - 20 mA
Curr. output I2
0/4 - 20 mA
Curr. output I2
alarm
Curr. output I2
alarm
Curr. output I2
[4 - 21,6mA]
_______________
0 - 21,6 mA
4 - 21,6 mA
4 - 20,5 mA
I2: alarm
[not used]
_______________
<3.8mA
>22 mA
not used
Curr. output I2
assignment
Curr. output I2
assignment
I2 assigned to
[Temperature]
______________
not used
Mass flow
Volume flow
Density
Temperature
using HART:
standard I1: mass flow
using HART:
I1 always 4 - 20,5mA or
4 - 21,6mA
