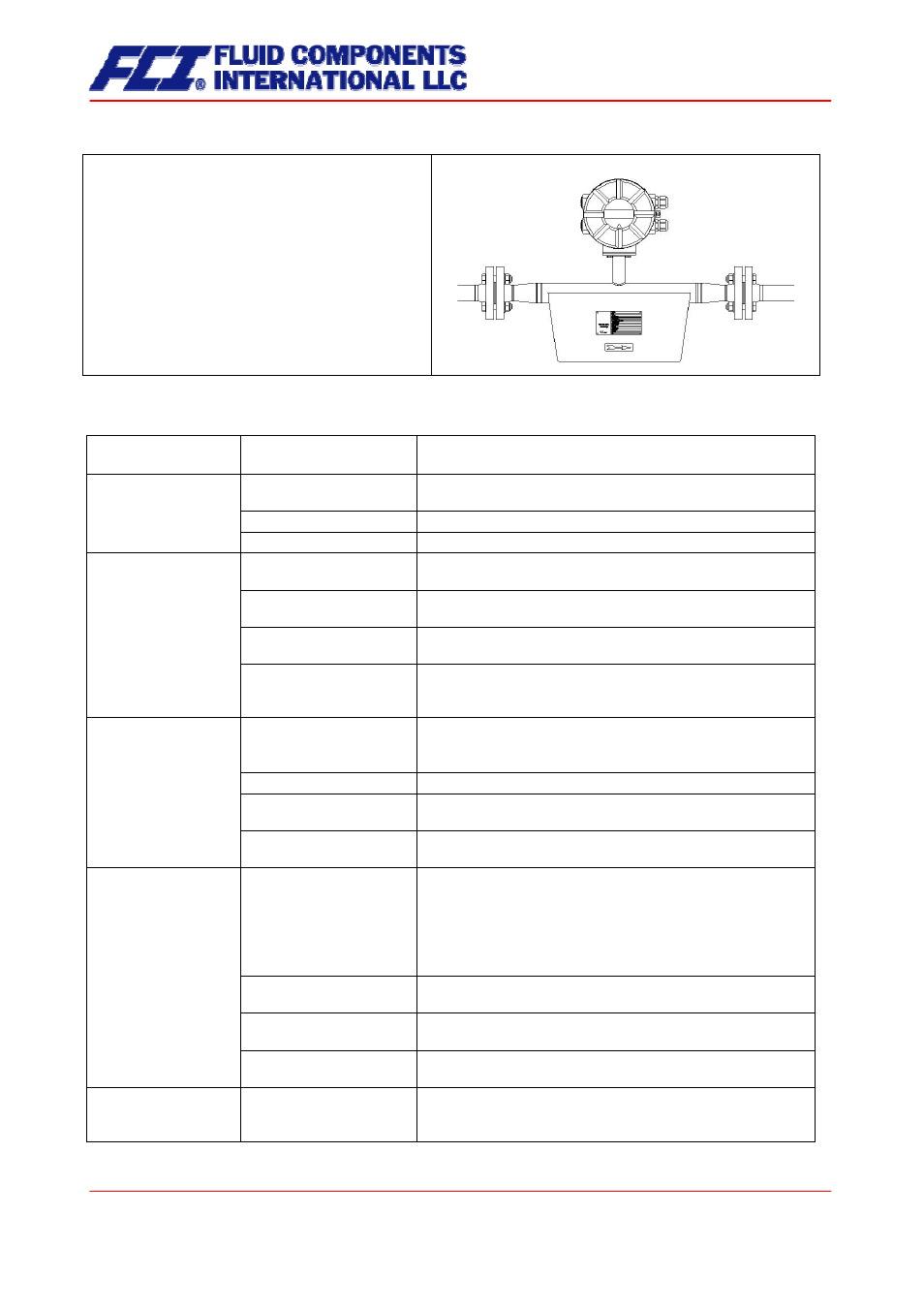

Installation position C
3.5.3 Assessment of installation position
Type of fluid Position Assessment
Pure liquids Standard installation
position Self-draining flow tubes
Position A or B OK
Position C Liquid residue remains in pipe
Liquids with gas bub-
bles Standard installation
position Self-draining flow tubes, gas bubbles do not accumulate
in flowmeter
Position A Not recommended owing to gas bubble accumulation in
flowmeter
Position B Gas bubbles may accumulate in the presence of low flow
velocities
Position C No gas bubble accumulation in flowmeter, liquid residues
may remain in device after discharge
Liquids containing
substances that could
form deposits Standard installation
position Self-draining flow tubes, no deposit formation
Position A OK
Position B Substances in the liquid could form deposits at low flow
velocities
Position C Not recommended owing to presence in flowmeter of
substances that could form deposits
Liquids containing
gas bubbles, as well
as gas bubbles con-
taining substances
that could form de-
posits Standard installation
position Self-draining flow tubes, no accumulation of gases or
substances that could form deposits
Position A Not recommended owing to gas bubble accumulation in
flowmeter
Position B Gas bubbles or substances that could form deposits at
low flow velocities
Position C Not recommended owing to presence in flowmeter of
substances that could form deposits
Gases that do not
form a condensate Standard installation
position,
Position A, B or C Any of these installations positions can be used
