13.14.3 Flow direction
This function allows the operator to define the flow direction that the transmitter will evaluate. Only “for-
ward” should be selected so as to prevent reverse flow from being measured. The standard factory set-
ting is “forward & reverse.” After selecting the Flow direction function, press
↵ to display the current set-
ting.
Flow direction
[forward]
As mentioned in Section 12.4.3.1 Selection window/make a selection the operator can choose between:
• forward
• reverse
• forward & reverse

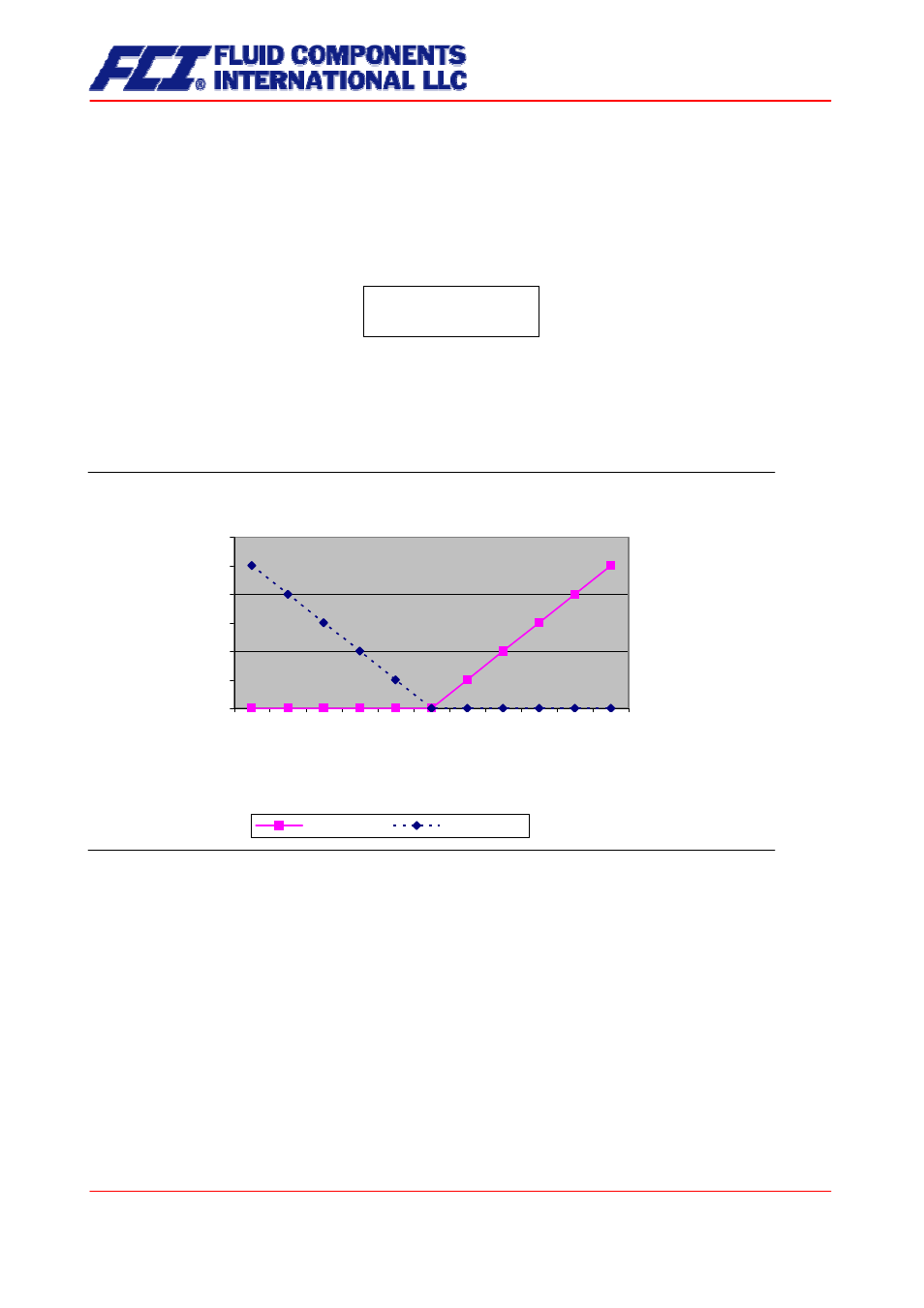

Flow direction
0%
20%
40%
60%
80%
100%
120%
-1
00
%
-80
%
-60
%
-4
0%
-20
%
0%
20
%
40% 60% 80% 10
0%
Measured value
Ou
tp
u
t (
c
u
rr
e
n
t, p
u
ls
e
)
forward flow reverse flow
