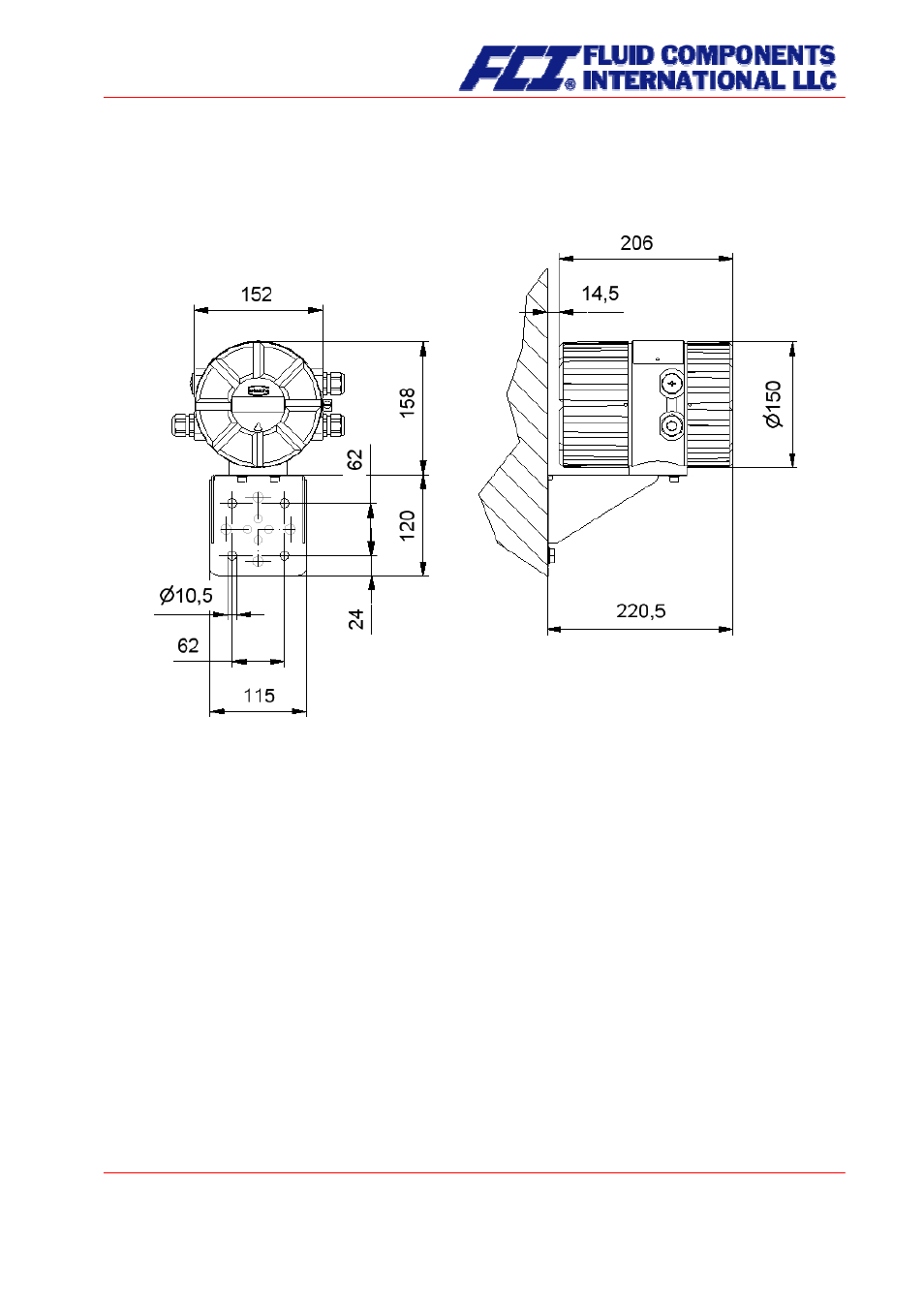

11.2 Weight

4.5 kg (10 lbs) (separate CT transmitter)

11.3 Material

Housing: GK Al Si 12 MG wa, passivated in chromic acid before being varnished

11.4 End connection

Direct (wireless) connection with the sensor or cable connection. For further details see Section 3.7
Connection to the transmitter on page 23, Section 11.5.2.
1 Wiring diagram for the integral mount configu-
ration of sensor and CT on page 46 and Section 11.5.2.2
Wiring diagram for the remote mount configura-
tion of sensor and CT on page 47.

CMU & CT OPERATING MANUAL
Part No 06EN003380 rev 1.6

Page 43 of 112
