1
Getting Started
English
1. GETTING STARTED
Ceiling/Flush
Mount Screws
Instruction Manual
Camera and
Wall Mount
Foam Pad
Wall Mount Screws
Before you start, ensure you have received all the items listed below:
1.1 OPTIONAL ACCESSORIES
Ceiling Mount PTZ Controller
Contact your distributor for details.
2
Connecting the Camera

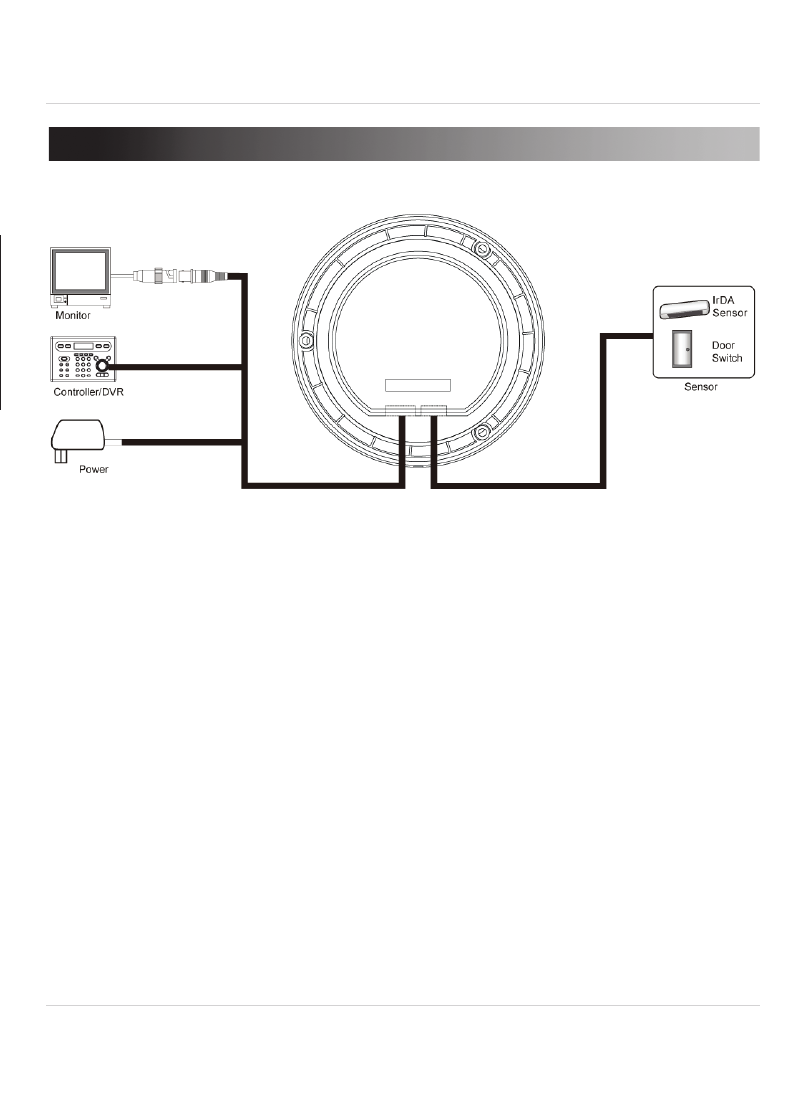

2. CONNECTING THE CAMERA
Video Cable (6-pin) Alarm Cable (5-pin)
BNC
RS485
12V DC
NOTE: Video and Alarm Cable are pre-attached to the camera.
2.1 DEFAULT PROTOCOL INFORMATION
• Default ID: 1
• Default Baud Rate: 2400
• Default Protocol: Pelco-D
If you need to change the PTZ protocol information, see “Changing
Protocol Information” on page 5.
2.2 POWER REQUIREMENTS
This high voltage PTZ camera uses 12V DC power only.
• Max Power Consumption: 850 mA / 7.2W.
eLineTechnology.com
