11
Installation
En
gl
is
h
4.3 CEILING MOUNTING (INDOOR ONLY)
Camera is not weatherproof if installed using this method.
Use the included wall mount or accessory ceiling mount (not
included) for outdoor installations.
Make sure to disconnect power before installing the camera.
Camera will begin moving immediately when power is connected.
To install the camera:
1. You must remove the camera from the included wall mount for indoor
ceiling mounting. To do so:
• Rotate the dome cover counterclockwise to remove.
• Remove the base attachment screws (3x) and remove the camera
from the camera base.
• Remove the camera base by removing the camera attachment screws
inside the wall mount (4x).
• Disconnect the video and alarm cables from the camera.
1
12
Installation
2. If necessary, change the camera’s ID and protocol information. See
“Changing Protocol Information” on page 5.

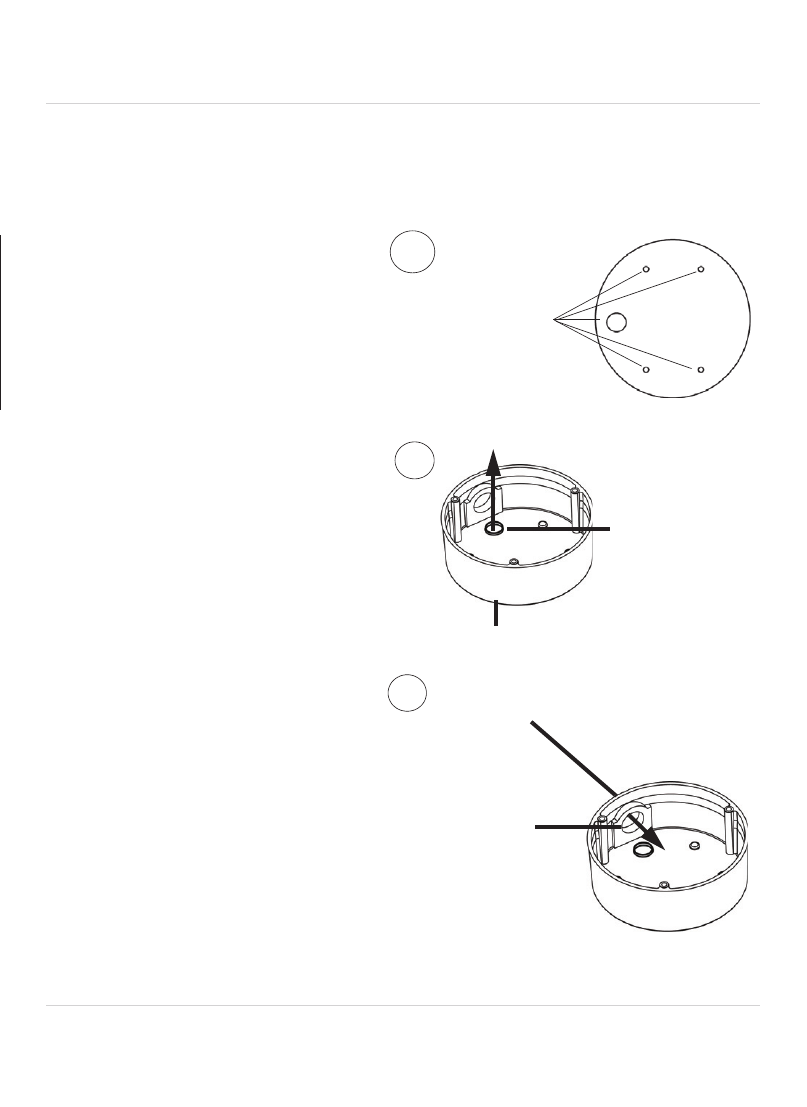

3. Remove the adhesive from the
foam pad. Remove the cutouts
for the cables and mounting
screw holes and attach the
foam pad to the bottom of the
camera base with the cutouts
aligned with the screw and
cable holes.
3
Foam Pad
Cable and
mounting screw
cutouts
4. A. If you are running the
cables through the surface,
remove the rubber plug on the
bottom of the camera base and
run the video cable and the
alarm cable connectors
through the bottom cable hole.
Bottom cable
hole
4A
Video and Alarm Cable
OR:
• B. If you are running cables
through the side of the
camera, unscrew the side
conduit cap with a flathead
screwdriver, and run the
video cable and alarm cable
connectors through the
conduit hole.
Conduit hole
4B
Video and
Alarm cable
