Using the OSD Menu
En
gl
is
h
5.3.4 SWING SETUP
You can setup up to 8 swings.

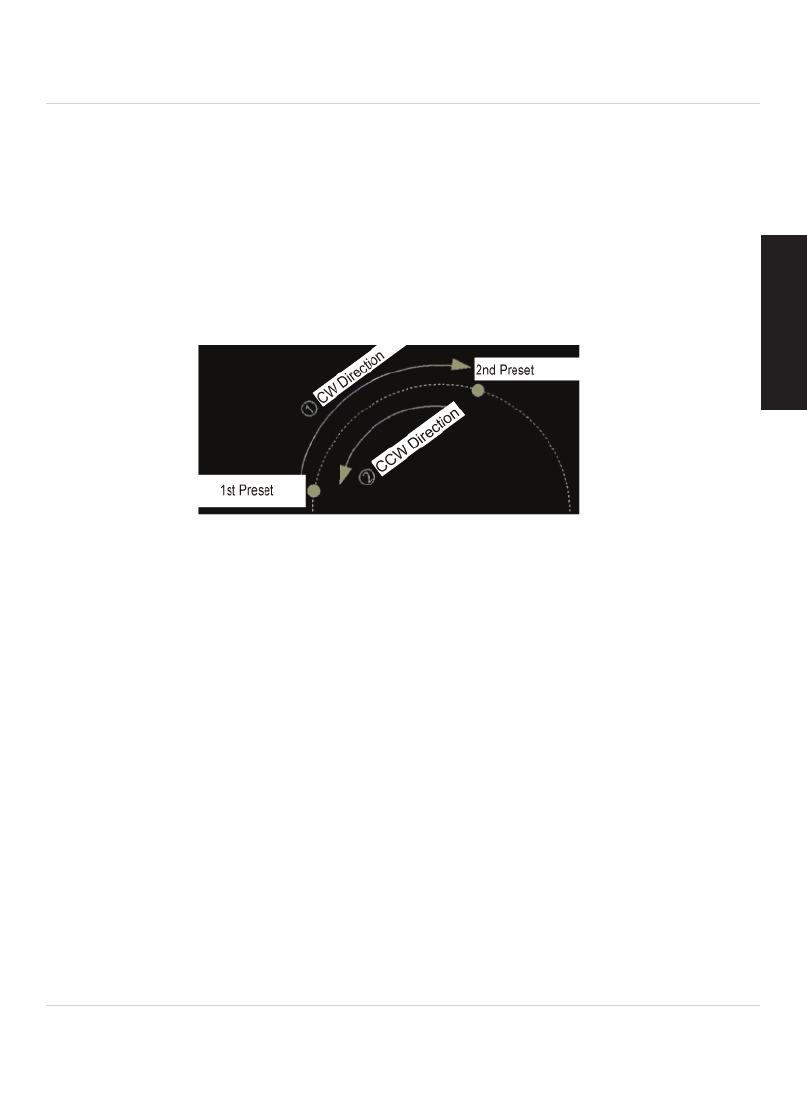

During a swing, the camera moves between 2 Preset positions
repeatedly. When Swing function runs, the camera moves from the
preset assigned as the 1st point to the preset assigned as the 2nd point
in CW (Clockwise) direction. Then, the camera moves from the preset
assigned as the 2nd point to the preset assigned as the 1st point in CCW
(Counterclockwise) direction.
If the preset assigned as the 1st point is the same as the preset assigned
as the 2nd point, camera turns on its axis by 360° in CW (Clockwise)
direction and then it turns on its axis by 360° in CCW (Counterclockwise)
direction.
Speed can be set up from 1° / sec to 180° / sec.
To run a swing using keyboard controller shortcuts:
• Press [141~148] and then press [Preset] to runs swings 1 ~ 8.
To create swings:
1. Setup the desired presets you would like to use to create Swings.
