06-TTM-UM-00158 8/2012 27

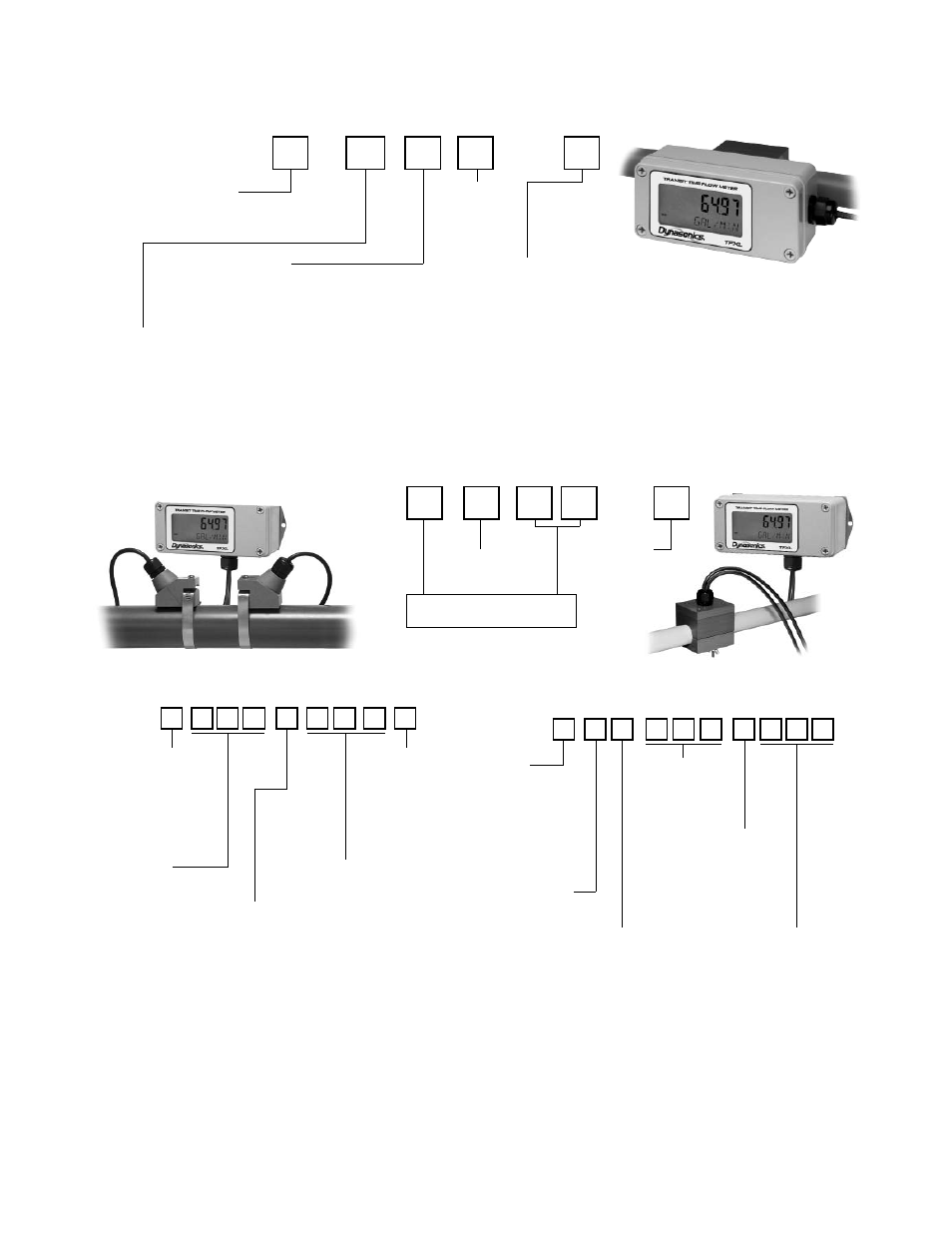

Part Number Construction
Integral System 1/2"…2" (12…50 mm)
Part Number:
DTFXL - - N
Display Options Output
1) No display 1) 4-20 mA
2) Rate & Toatalizer display & TTL Pulse
3) Totalizer Pulse
Connector Options Options
N) 1/2" Conduit Hole (2) N) None
A) Water-tight Cable Clamp(2) C) CPVC Transducer Material
C) 4-Pin (male) Brad Harrison® Micro-Change® Connector
D) 1/2" Flexible Conduit Connectors (2)
Pipe Size
A) 1/2" ANSI Pipe (DN 15)
D) 1-1/4" ANSI Pipe (DN 32) G) 1/2" Copper J) 1-1/4" Copper M) 1/2" Tubing Q) 1-1/4" Tubing
B) 3/4" ANSI Pipe (DN 20) E) 1-1/2" ANSI Pipe (DN 40) H) 3/4" Copper K) 1-1/2" Copper N) 3/4" Tubing R) 1-1/2" Tubing
C) 1" ANSI Pipe (DN 25) F) 2" ANSI Pipe (DN 50) I ) 1" Copper L) 2" Copper P) 1" Tubing S) 2" Tubing
Remote System 1/2" and larger (12 mm and larger)
A system consists of one DTFXL part number and a choice of one large or small pipe transducer part number.
DTFXL - - N
Options
System Size
X) Large Pipe
N) None
Y) Small Pipe F) I.S. DTTN
Select Options from
Integral System Table
Transducer
Standard Pipe Transducer
Pipes larger than 2" (DN 50 mm)
D T T - - -
Piping Environment Area Options
N) Standard: 250° F N) None
(121° C) Max. Temp. F) Class I, Div. 1,
L) Large Pipe: 250° F Groups C & D
(121° C) Max. Temp. w/I.S. barrrier
H) High Temp: 350° F P) Portable w/
(176° C) Max. Temp. I.S. barrier
Cable Length Conduit Length
020) 20 feet (6 m) 000) 0 feet (0 m)
050) 50 feet (15 m) 020) 20 feet (6 m)
100) 100 feet (30 m) Transducer 050) 50 feet (15 m)
Options 100) 100 feet (30 m)
N) None
S) Submersible (IP68)
A) Flexible armored
P) BNC Connectors
Small Pipe Transducer
Pipes 1/2…2" (12…50 mm)
D T T - - -
Piping Cable Length
Environment 020) 20 ft. (6.1 m)
S) Standard: 185° F 050) 50 ft. (15 m)
185° F (85° C) 100) 100 ft. (30 m)
(PVC, Ultem®)
C) High Temp: Conduit Type
250° F (121° C) N) None
(CPVC, Ultem®) A) Flexible
Armored
Nominal P) BNC
Pipe Size Connectors
D) 1/2"
F) 3/4"
Pipe Type Conduit Length
G) 1" P) ANSI Pipe 000) 0 ft. (0 m)
H) 1-1/4" C) Copper Pipe 020) 20 ft. (6.1 m)
J) 1-1/2" T) Tubing 050) 50 ft. (15 m)
L) 2" 100) 100 ft. (30 m)
