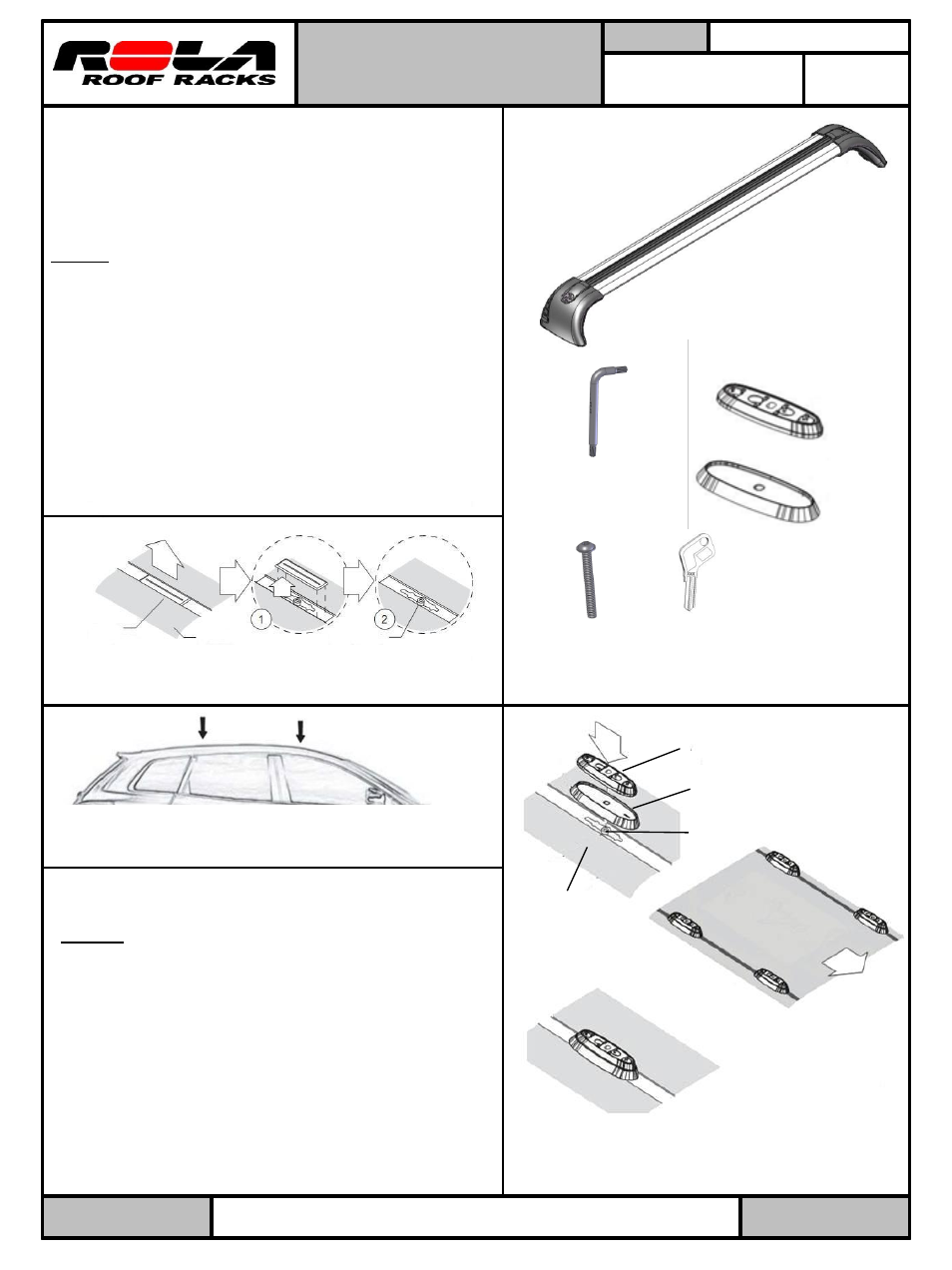

59832 / 59833

PART No:

59832-3N Rev 10/11/11

Fitting Instructions

AP-GTX (Anchor Point GTX)

Cross Bar Kits


CARRYING CAPACITY:

Pg 1 of 2

50Kgs/

110 Lbs

Printed in China

Note: Prior to Assembly

Prior to assembling your cross bar kit check that the kit
contains all the parts you will need to fit the cross bars.
Refer to parts lists for guidance. L-Wrench is stored in the
End Support.
Please read these instructions before assembly.

Step 1: Removing the vehicles anchor point covers.

A.

On the vehicles roof or ditch molding you will find fore and aft
anchor point covers. (fig 1)

B.

Carefully remove these covers by sliding them in the direction
shown on the cover. This will reveal the anchor points. It is
advisable to screw the bolts into the anchor point threads at
this time to clean the threads.

Note: Take care when removing the covers to avoid damaging or
losing clips. Covers will not be replaced while the cross bars are
on the vehicle.
Store the covers and any plugs while cross bars are in use for
later replacement.

Step 2: Installing Rubber Gaskets and Adaptor

A.

Position the rubber gaskets over the anchor points as
shown in figure. (fig 2)

B.

Ensure that the gasket is properly aligned.

C.

If your gasket has a directional arrow this always points
toward the front of vehicle.

D.

Ensure that the gasket slots are centered over the anchor
point threads in the roof.

E.

Place the plastic adaptors into the gasket’s recessed top
surface. (fig 3) Repeat for all four anchor points. (fig 4)

Cross Bar / End Support

Assembly (2)

Plastic adaptor (4)

Rubber Gasket (4)

L-Wrench

– Security

Key(2) (Stored in End

Support)

Anchor point

cover

Vehicle’s roof

Anchor point

Plastic adaptor

Vehicle’s roof

Anchor point

Rubber Gasket

Front of vehicle

Vehicle’s

roof

Location of anchor points on vehicle

Fig 1

Fig 2

Fig 3

Parts list

Key (4)

Bolt (4)

Fig 4
