(T258) 112816 10-18-05 Rev A
Adventure System
59109 / 59110

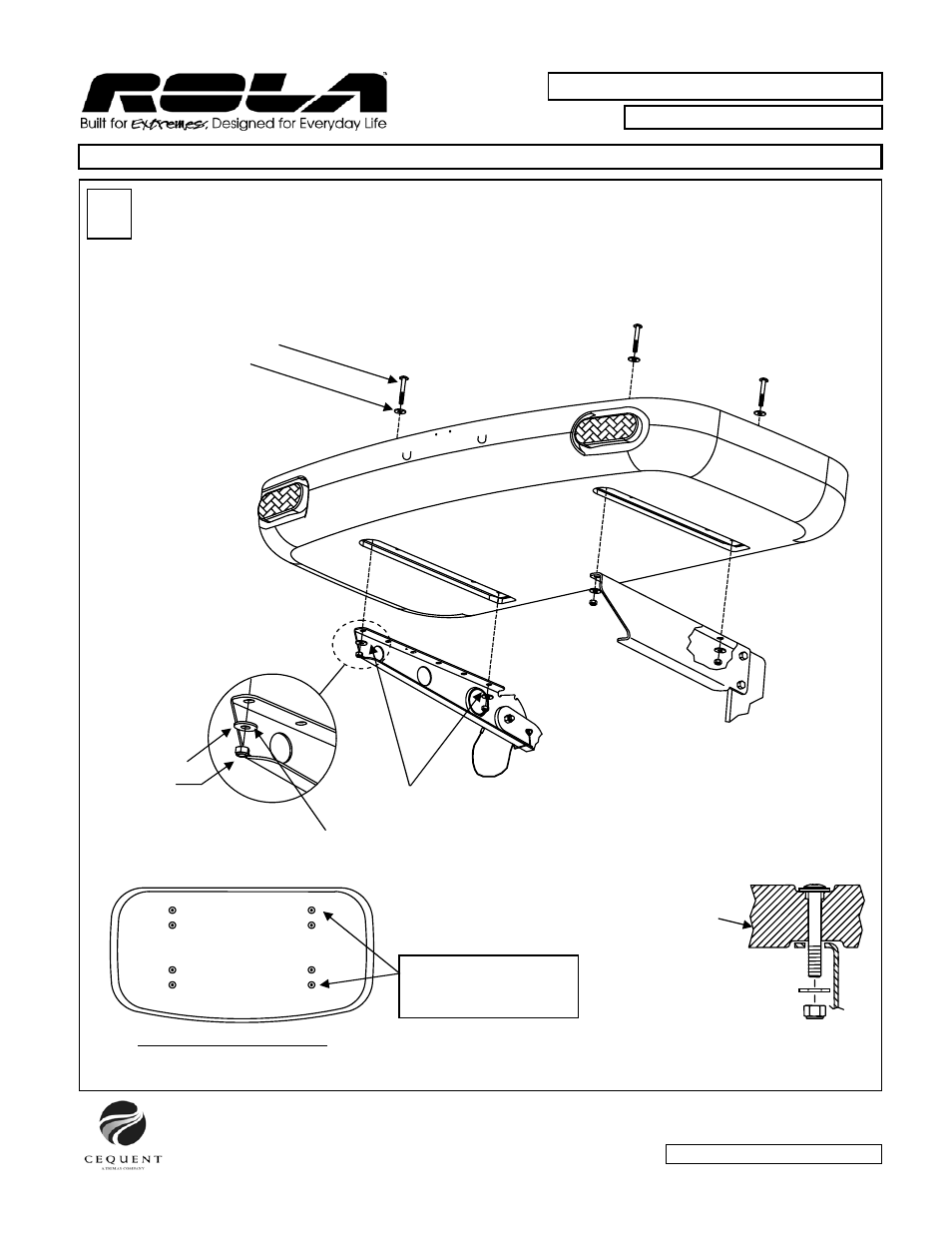

Use outermost holes to
attach cargo tray to
support brackets.
Place the empty Cargo Tray onto the support brackets with the lights or reflectors facing rearward.
Line up the outer holes in Cargo Tray with the last hole in each end of the support brackets.
Install the four (4) 5/16” x 2-1/4” long cap screws with 5/16” black zinc flat washers through
the cargo tray and holes in support brackets.
Loosely install the bright or black zinc 5/16” flat washers and lock nuts on cap screws.
Tighten 5/16” cap screws to 12-24 ft-lb.
View of fasteners
to mount tray.
6
TOP VIEW OF CARGO TRAY
5/16 x 2-1/4” CAP SCREWS
5/16” FLAT WASHER
(Black Zinc Finish)
5/16” FLAT WASHER
5/16” LOCK NUT
(4 PLACES)
USE THE LAST HOLE IN EACH
END OF SUPPORT BRACKETS
FLAT WASHER
LOCK NUT
Cargo Tray
Please read all instructions carefully before assembly, installation and/or use of this product.
Page 5 of 27
Bright Zinc flat washer – if equipped
