Draw-Tite 59109 ADVENTURE SYSTEM - Manual (Page 2)

Product Code:
Product Name:
Cequent Consumer Products, Inc.
Solon, OH 44139 USA
Cequent Help Hotline: 1-800-234-6992
www.rolaproducts.com
(T258) 112816 10-18-05 Rev A
Adventure System
59109 / 59110

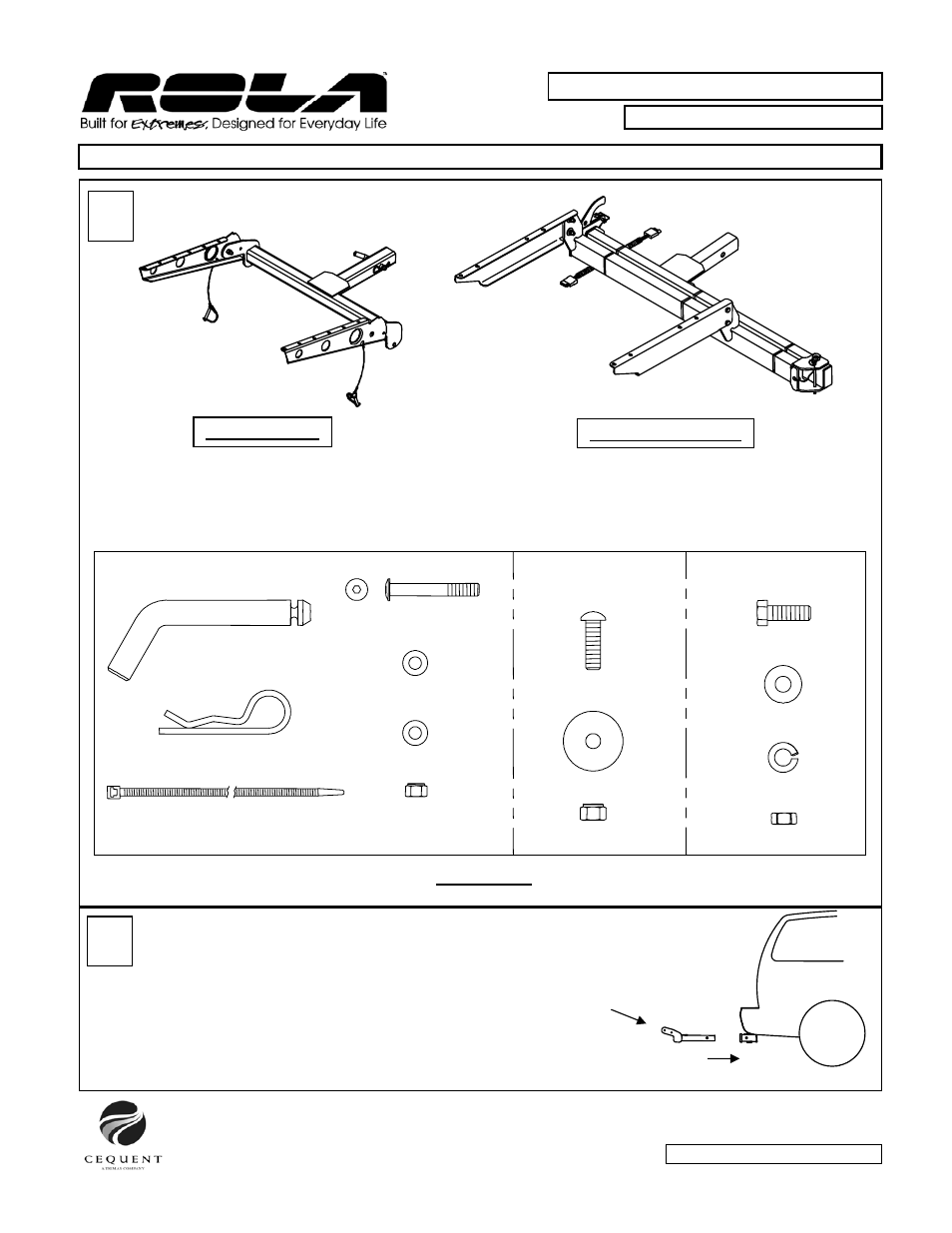

• Check the contents of your Adventure System Cargo Carrier.
Parts List: (1) - Tilt-Up Assembly -or- (1) - Swing-Away Assembly; (1) - Cargo Tray and/or Bumper Pack
(1) - Hardware Kit; (2) – Mounting Brackets; (1) - Warranty Information; (1) Wiring Harness (Swing-Away
Models ONLY)
Tilt-Up Assembly Swing-Away Assembly
1
Please read all instructions carefully before assembly, installation and/or use of this product.
Page 2 of 27
Hardware Kit
Slide the 2” square shank portion of the Main support assembly into your
vehicle's hitch as shown. Install 5/8” pin and spring clip.
Note: For ease of assembly, it is recommended the the vehicle’s hitch is used to
hold main support.
2
MAIN SUPPORT
5/8" Pin - (1)
Spring Clip - (1)
3/8" x 1.25 Lg. Cap Screw - (2)
3/8" Flat Washer - (2)
3/8" Lock Nut - (2)
5/16" x 2-1/4" Lg. Cap Screw - (4)
5/16" Flat Washer - ( )
5/16" Lock Nut -(4)
(Black Zinc Finish)
(Black Zinc Finish)
5/16" Flat Washer - (4)
(Silver Zinc Finish)
3/8" Hex Nut -(4)
3/8" Lock Washer - (4)
3/8" Flat Washer - (4)
3/8" x 1-1/4" Lg. Hex Bolt - (4)
ALL MODELS FOR 59110 MODELS ONLY FOR 59109 MODELS ONLY
Cable Tie - (6)
*
*
Note: The Swing-Away Systems have eight black zinc flat washers.
