Draw-Tite 59508 BIKE CARRIER - NV2 - HITCH MOUNT User Manual
Page 11
Product Code:
59508
Product Name:
NV2
www.rolaproducts.com
www.rola.com.au
59508N Rev F 01/12
Cequent Performance Products - Plymouth, MI. USA.
Technical Service: (888) 521-0510
Cequent , a division of TriMas Corporation Pty Ltd.
20-50 Waterview Close, Dandenong South, VIC, Australia 3175
Ph:1300 888 051
PRINTED IN CHINA

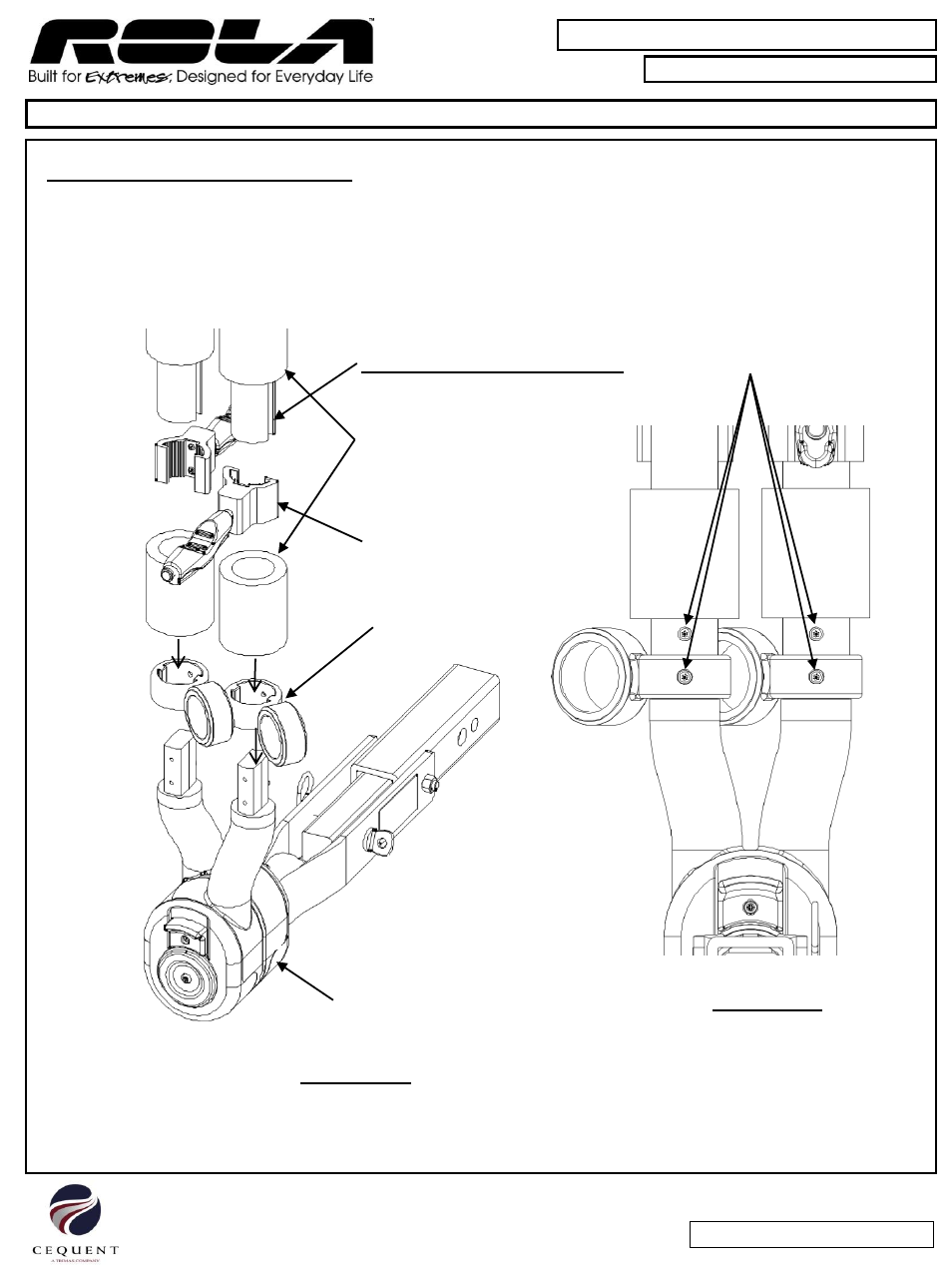

Diagramme 2
Diagramme 1
Veuillez lire toutes les instructions attentivement avant le montage, l’installation et/ou l’usage de ce produit.
Montez les tubes-
supports, les protecteurs de cadre en mousse, les griffes de stabilisation et l’anneau de verrouillage de
câble sur le moyeu, comme illustré sur les diagrammes #1 et #2. Utilisez la clé de sécurité Torx T20 pour fixer les
composants à l’aide des quatre (4) vis de sécurité #8-32 x 1 po fournies.
Montage des tubes-supports au moyeu :
Anneau de verrouillage
de câble
Protecteurs de cadre
en mousse
Montage des tubes-supports au moyeu
Moyeu
#8-32 x 1 Vis de sécurité
Torx
Griffe de stabilisation
