Draw-Tite 59513 ACCESSORY SHANK User Manual

1/4” rise shank adapter

background image

Product Code:

Product Name:

59513

1-1/4” Rise Shank Adapter

Please read all instructions carefully before assembly, installation and/or use of this product.

TO REMOVE AND REPLACE SHANK

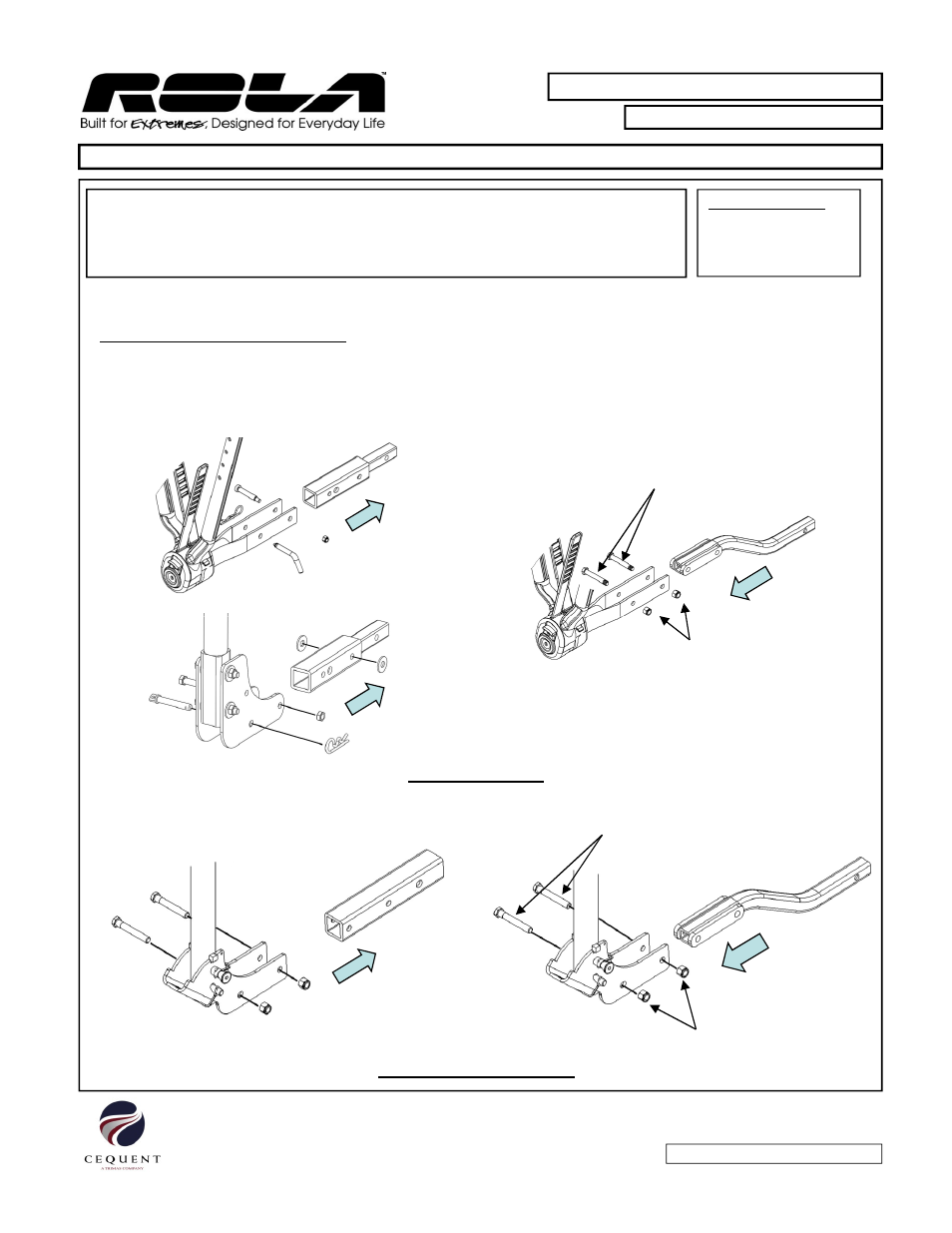

Remove the ½” pin, clip, ½” bolt and lock nut, or (2) two 1/2 hex bolts from existing bike shank assembly.

Attach the new 1-1/4” rise shank using the (2) two ½-13 x 3-1/2” long hex bolts and ½-13 locknuts supplied.

Tighten all ½” grade 5 bolts to 50 FT-LBS (68 N*M)

TOOLS REQUIRED:
9/16 Wrench
¾ Wrench
1/4 Hex Allen Wrench
Torque wrench

WARNING: DO NOT EXCEED lower of vehicle mfg’s or hitch mfg’s maximum tongue

weight rating.

WARNING: DO NOT EXCEED bike carrier maximum weight rating.

WARNING: Do not lubricate threads. Bolt failure may occur due to over tightening.

WARNING: Do not drill or weld to this product.

Hex Bolt
½-13 x 3-1/2” GR5
(2) Places

Note: This product is designed for use with Cequent part numbers 59400, 59401, 59403, 59508, and 63123.

www.rolaproducts.com

Cequent Performance Products, Inc.
Plymouth, MI 48170

59513N Rev A 10-27-11

Page 1

½-13 GR2 Lock Nut
(2) Places

59508 and 63123

Hex Bolt
½-13 x 3-1/2” GR5
(2) Places

½-13 GR2 Lock Nut
(2) Places

59400, 59401, and 59403
