Step 2: Connect PHD Equipment

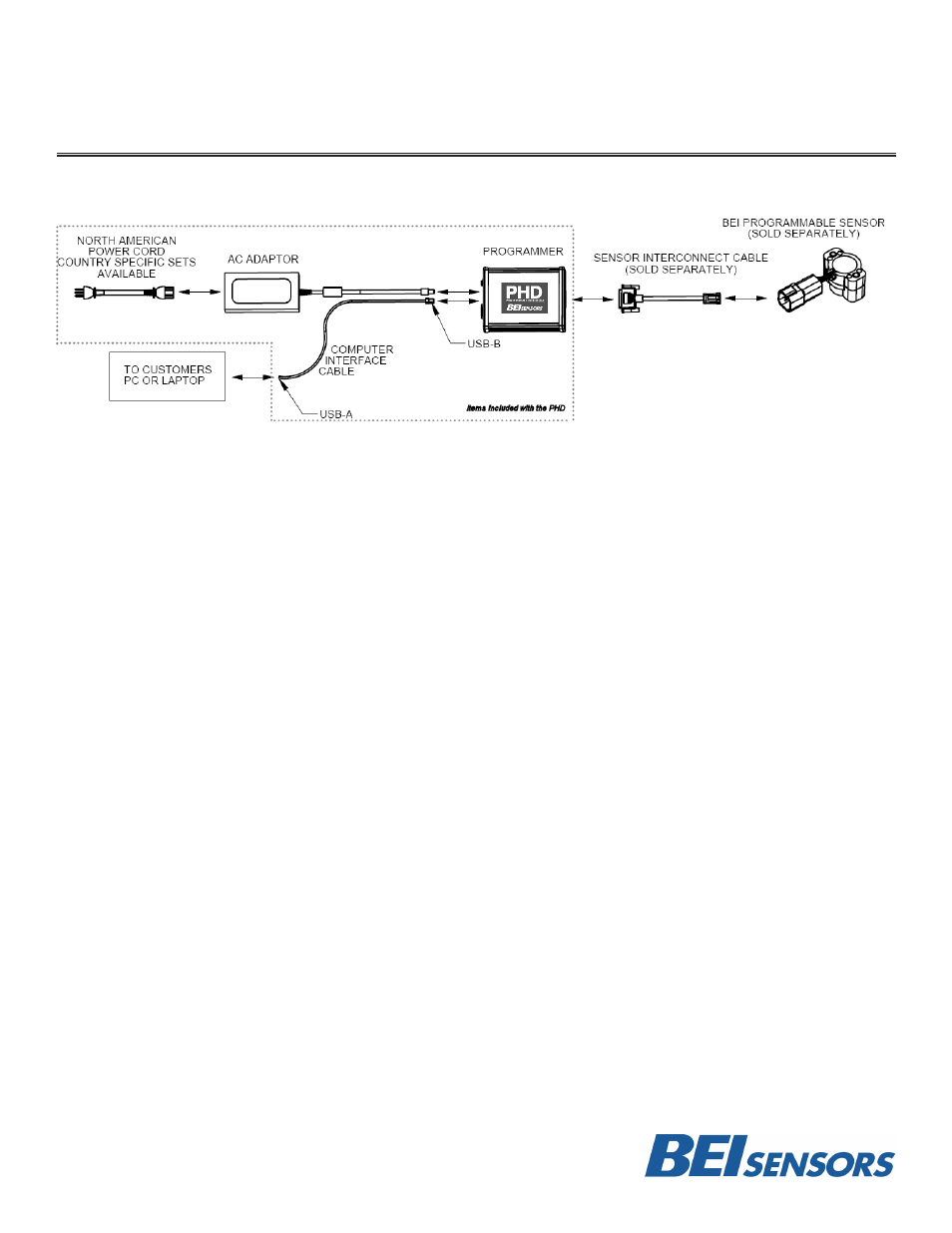

1. Connect the USB-A end of the Computer Interface Cable to the USB port on your computer.
2. Connect the USB-B end of the Computer Interconnect Cable to the USB port on the
Programmer.
3. Connect the AC Power Cord to the AC Adaptor.
4. Connect the AC Adaptor to the Programmer.
