Step 6: view output and verify configuration – BEI Sensors Programmable Hall Device User Manual
Page 12
7230 Hollister Avenue, Goleta, California 93117 | Tel: 805-968-0782 | Fax: 805-968-3154 |
www.beisensors.com
12
Specification No.: 02135 Rev: 5-23-2013
PHD User Manual
Step 6: View output and verify configuration

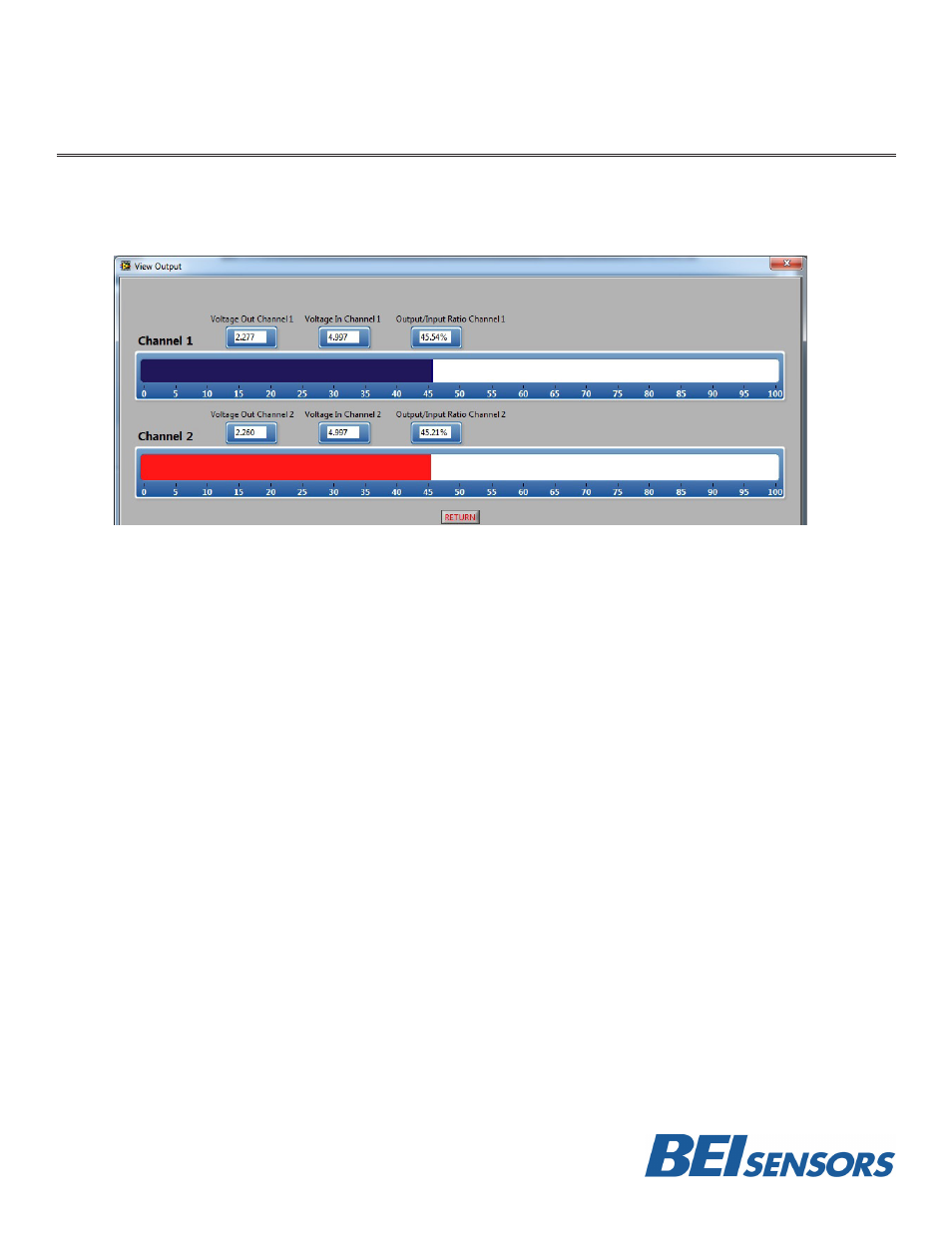

1. If you wish to verify the output of the programmed sensor select the “View Output” button on
the lower right hand section of the screen to bring up a real-time graph of the sensor output.
2. Rotate the part to observe how it’s output changes.
