Step 4: Run PHD Application and create the desired program

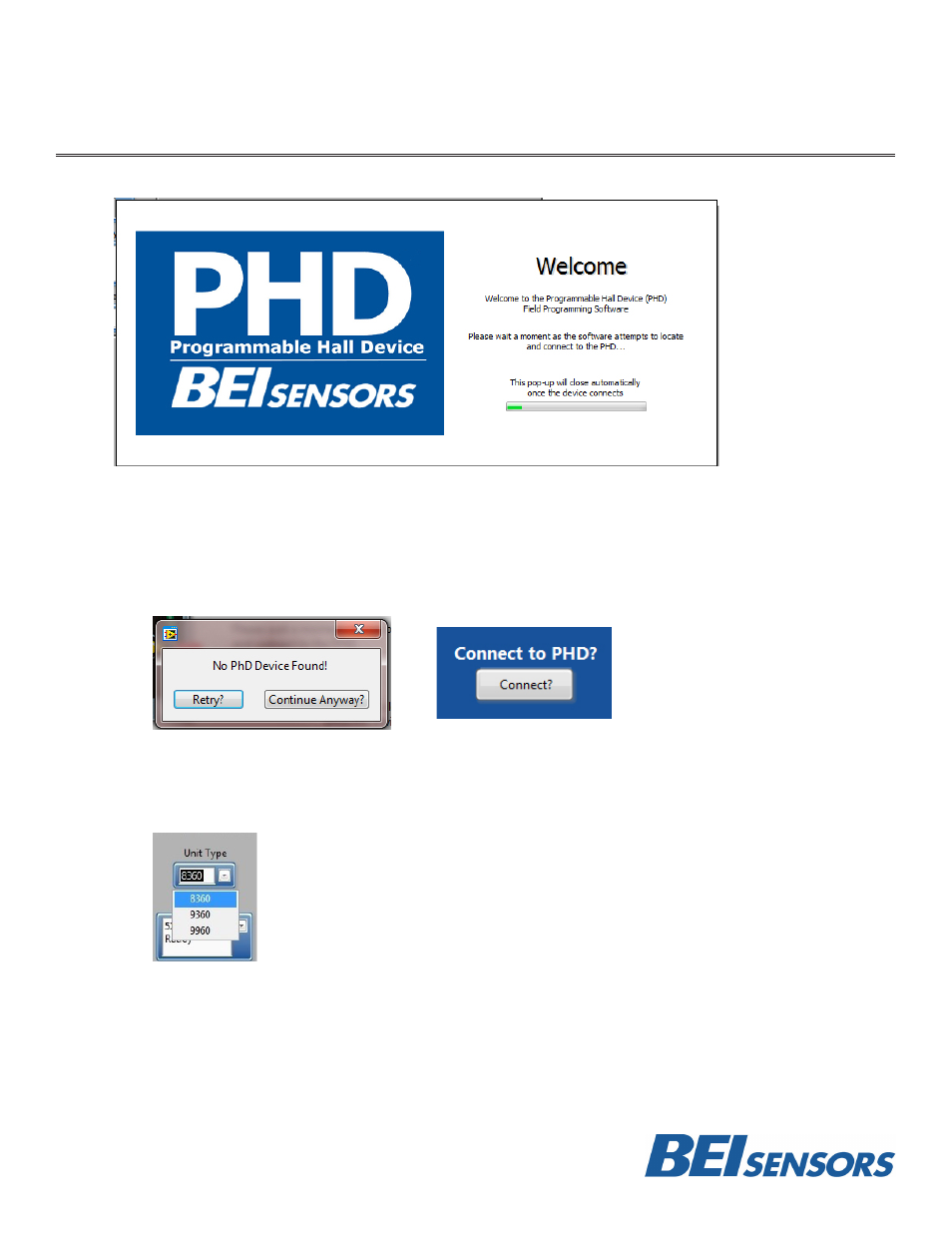

1. Run the PHD Application. It will automatically find and connect to the PHD Programmer.
2. If the software cannot find a PHD Programmer a “No PHD Device Found!” message will
appear.
• *Note: The user can continue without a PHD Device connected to create programming
profiles for later use. If there is no Programmer connected, a “Connect to PHD?” dialog
will appear. Once you have connected the programmer, select “Connect” to continue.
3. Select the Unit Type: This is the series of BEI’s programmable sensor you will be
programming.
• *Note: Programmable versions of the 8360 and 9360 series will be available soon.
