PHD User Manual

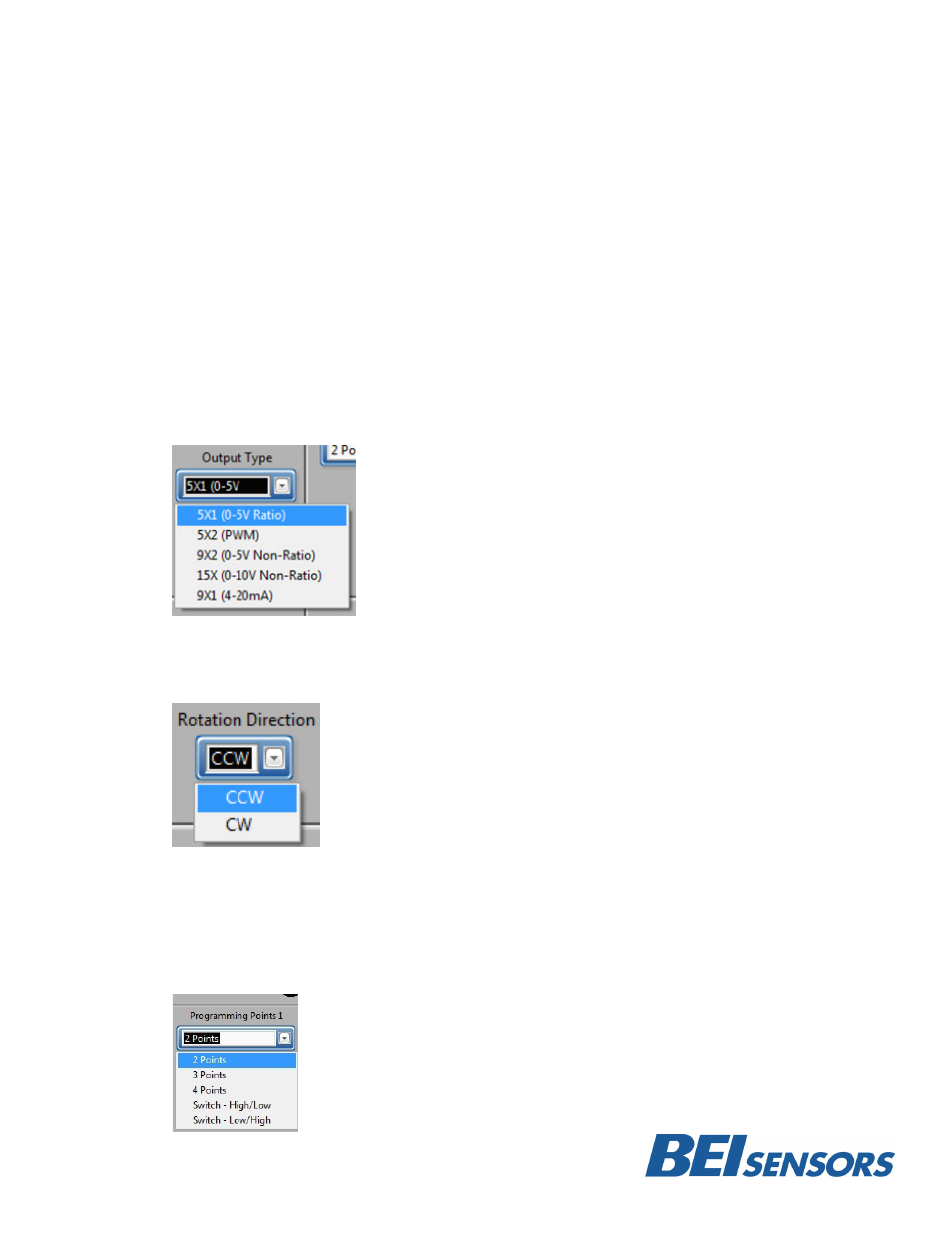

4. Select the Output Type: The output type is selected based on the “Unit Type” chosen in Step
#4.
• *NOTE: The desired programming will not be achieved if the incorrect Output Type is
choosen.
• Unit Type 9960–this sensor series has several different versions of programmable types.
•
0-5V Ratio – This is a 9960-5A Input/Output version, 0-5V Input for 0-5V Output.
•
PWM – This is a 9960-5X2 Input/Output version, 5V Input only.
•
0-5V Non- Ratiometric – This is a 9960-9X2 Input/Output version, 9-30V Input for 0-5V
Output
•
0-10V Non-Ratiometric – This is a 9960-15X Input/Output version, 15-30V Input for
0-10V Output
•
4-20mA – This is a 9960-9X1 Input/Output version, 9-30V Input for 4-20mA Output
5. Define the Rotation Direction of the sensor. In the Rotation Direction box there are two
options, Clockwise (CW) and Counterclockwise (CCW).
•
CW– Choose Clockwise for both outputs if the desired
output slopes you are programming occur when the rotor is rotated
clockwise (when viewed from the rotor side of the sensor).
•
CCW– Choose Counterclockwise for both outputs if the
desired output slopes you are programming occur when the rotor is
rotated counter clockwise (when viewed from the rotor side of the
sensor).
6. Define the Programming Points for Sensors 1 and 2 (Sensor 1 and Sensor 2 do not have to
have the same number of programming points).
You are able to choose where in the rotational angle each of these points are as well as the
output percentage at each point. For example, 3 Point options are most commonly defined as:
•
Point “A”– percentage of output at beginning of travel
•
Point “B”– between Points “A” and “C”, usually midway (50%)
•
Point “C”– percentage of output at end of travel
• The percentage output for Point “A” and Point “C” depends on your
needs. For proper operation the % for Points ‘A”, “B” and “C” must be
greater than the Clamp Low % and less than the Clamp High %.
