59
7-3. EXTERNAL PROGRAMMING
If you need to use your own Software Control program from a PC or automation, the device allows communication
through an ASCII code protocol. All commands can be found on our website: www.analogway.com
All Analog Way products equipped with an RS232 input are compatible with Crestron, AMX, Medialon, and most
major control systems. TCP/IP control ports are also available on most Analog Way products, as standard or
as options.
To control an STE100 product with an External Remote Controller (PC Software Control - Touch Pad Controller…)
follow the indications below:
1. First establish an RS-232 communication between the Remote
Control Software and the STE100 , in order to setup the LAN parameters
of the product.

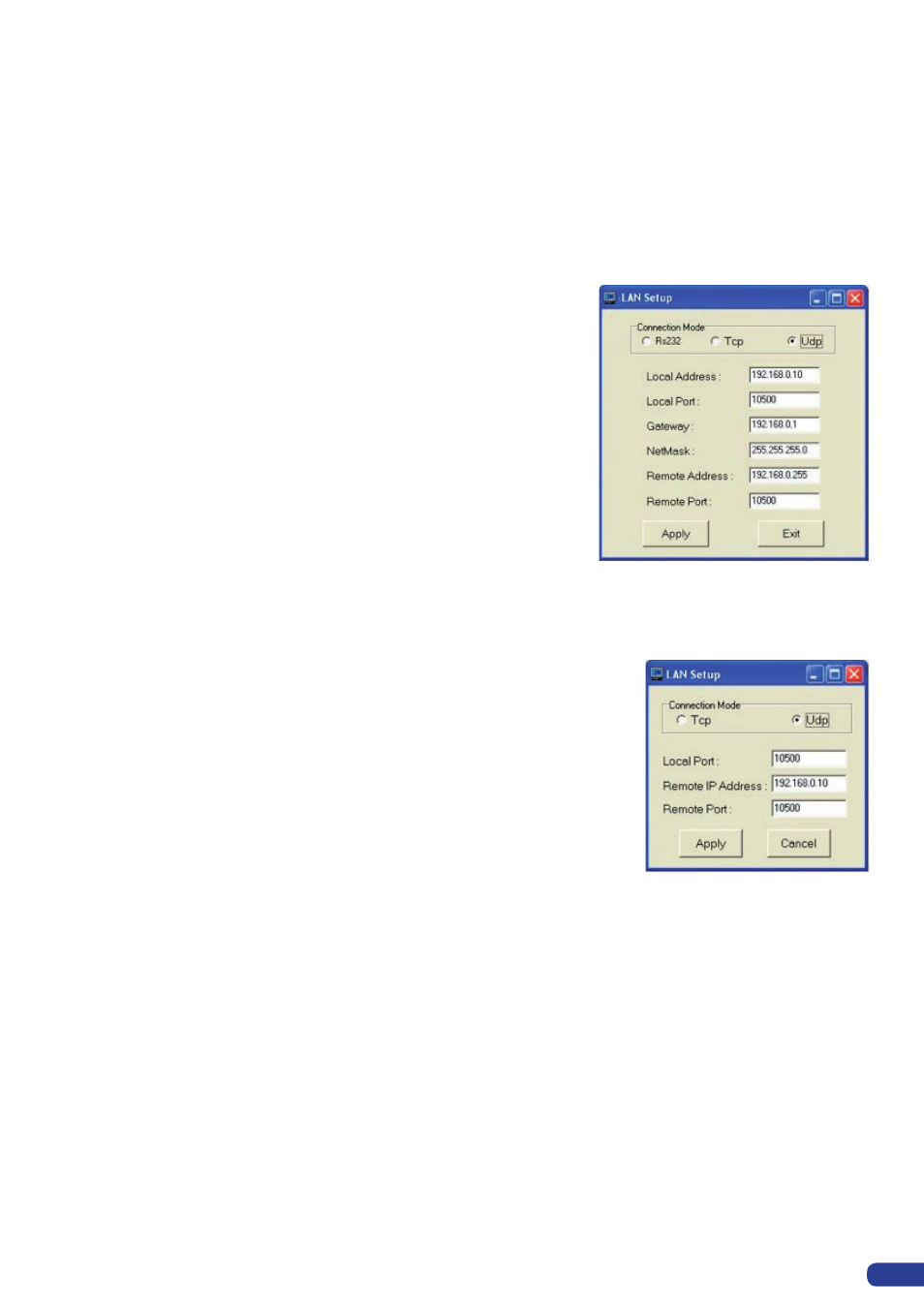

2. In the “Control” - “STE100 LAN Setup” menu, configure the connection
of the STE100 product in UDP mode and setup the Local and Remote
Addresses as well as the Local and Remote Ports in concordance with
your Network.
3. Configure the TCP/IP address of your External Remote Controller.
In example: 192.168.000.001
4. Setup the UDP connection of your External Remote Controller in
concordance with your Network.
In example on the Remote Software in the “Control” - “RS232/LAN Setup” - “LAN/Setup” menu.
5. Setup the LAN parameters in UDP mode in the “Console” - “LAN Setup” menu.
In example: RK Address: 192.168.000.002
Remote Address: 192.168.000.010
Gateway Address: 192.168.000.001
RK Port: 10500
Remote Port: 10500
Netmask: 255.255.255.000
6. Select the LAN communication port in the remote controller console -
“RS232/LAN port” menu.
7. You can now control your STE100 product with an External Remote
Controller.
