4-2. THE STE100 MENU

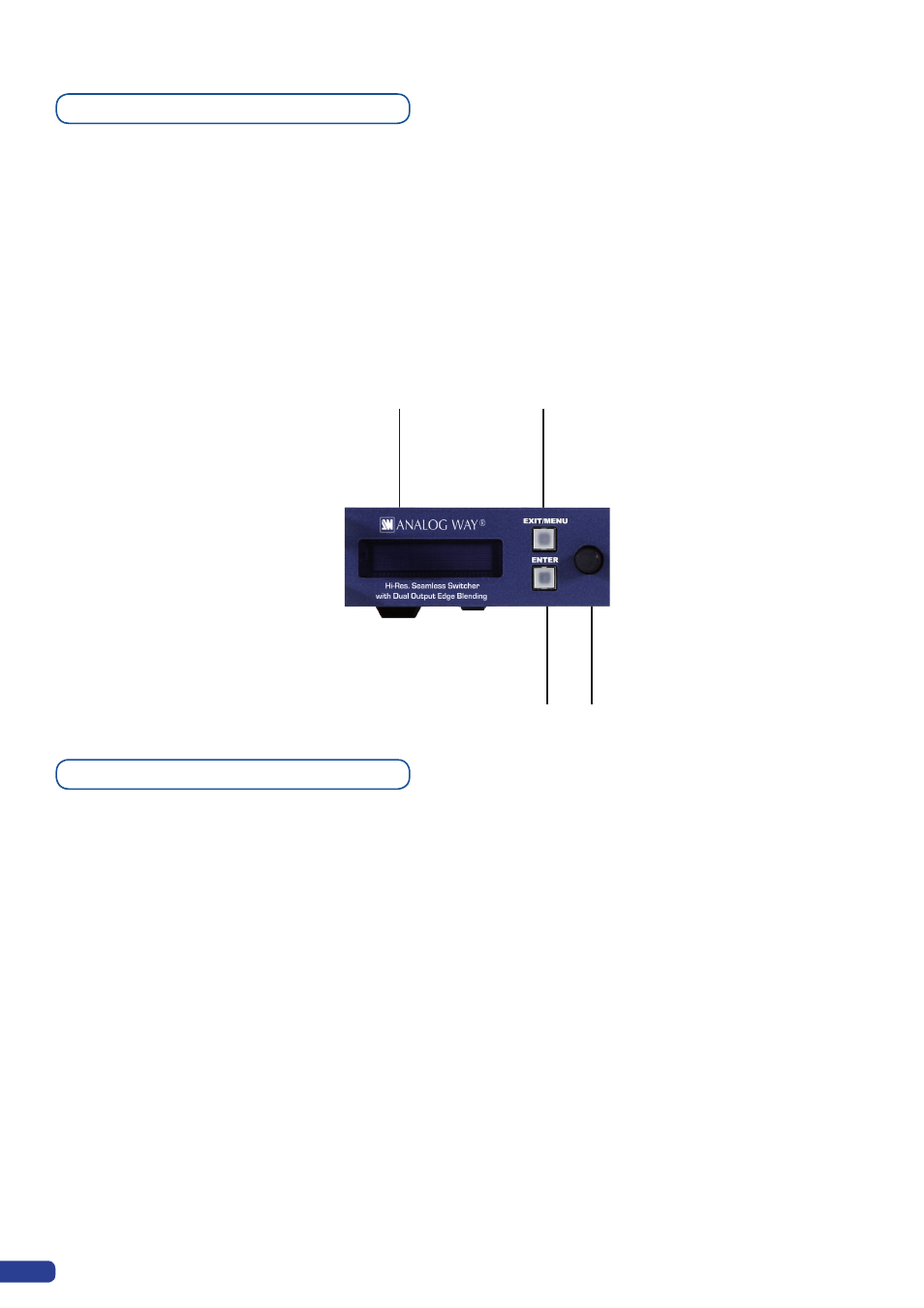

To access the

STE100

menu, press the

[EXIT/MENU]

button in the control section (4). To highlight items in

the menu which will appear on the VFD screen (2), turn the scroll knob (3) left or right to the desired menu

item. When you have reached the desired menu item, press the

[ENTER]

button in the control section (4) to

access that menu function. Pressing the

[ENTER]

button (1) when a selection has been made sets the value

to that selection in the

STE100

memory. When all settings have been made, press the

[EXIT/MENU]

button

to exit sub-menus and return to the main menu.

* IMPORTANT * : simply selecting a menu item will not set it to that value. Be sure to press the [ENTER]

button when parametering the menu items.

Pressing the

[MENU]

button in the menu section of the

STE100

, will display and give you access to the

following items on the menu VFD screen:

- INPUT:

select to configure the 10 individual input types and resolutions.

- OUTPUT 1:

select to set the output types and resolutions of Output #1.

- OUTPUT 2:

select to set the output types and resolutions of Output #2.

- PRESET:

select to store and use presets.

- IMAGE:

select to change source image settings of an input.

- KEYING/TITLING:

select to access keying and titling controls and parameters when video layer is selected.

- LAYER:

select to adjust layer size, position, border, transparency or transitions.

- AUDIO:

select to access all audio input and output parameters.

- SOFT EDGE:

select to access controls and parameters for Embedded Soft Edge Mode.

- CONTROL:

select to access device software information, LAN settings, reset factory settings, amongst

other user oriented functions.

- VIRTUAL T-BAR:

select to access the Virtual T-Bar.

Menu navigation

Home menu
