CONNECTING THE STE100

3-1. CONNECTING THE STE100

The

STE100

can be set up with up to 10 different sources, and will drive up to 2 digital DVI-D sources, 2 SD/

HD-SDI sources and 6 analog computer/video sources simultaneously. The versatility of the

STE100

will allow

for almost any event configuration and cater for all your projection needs.

The intuitive rear panel of the

STE100

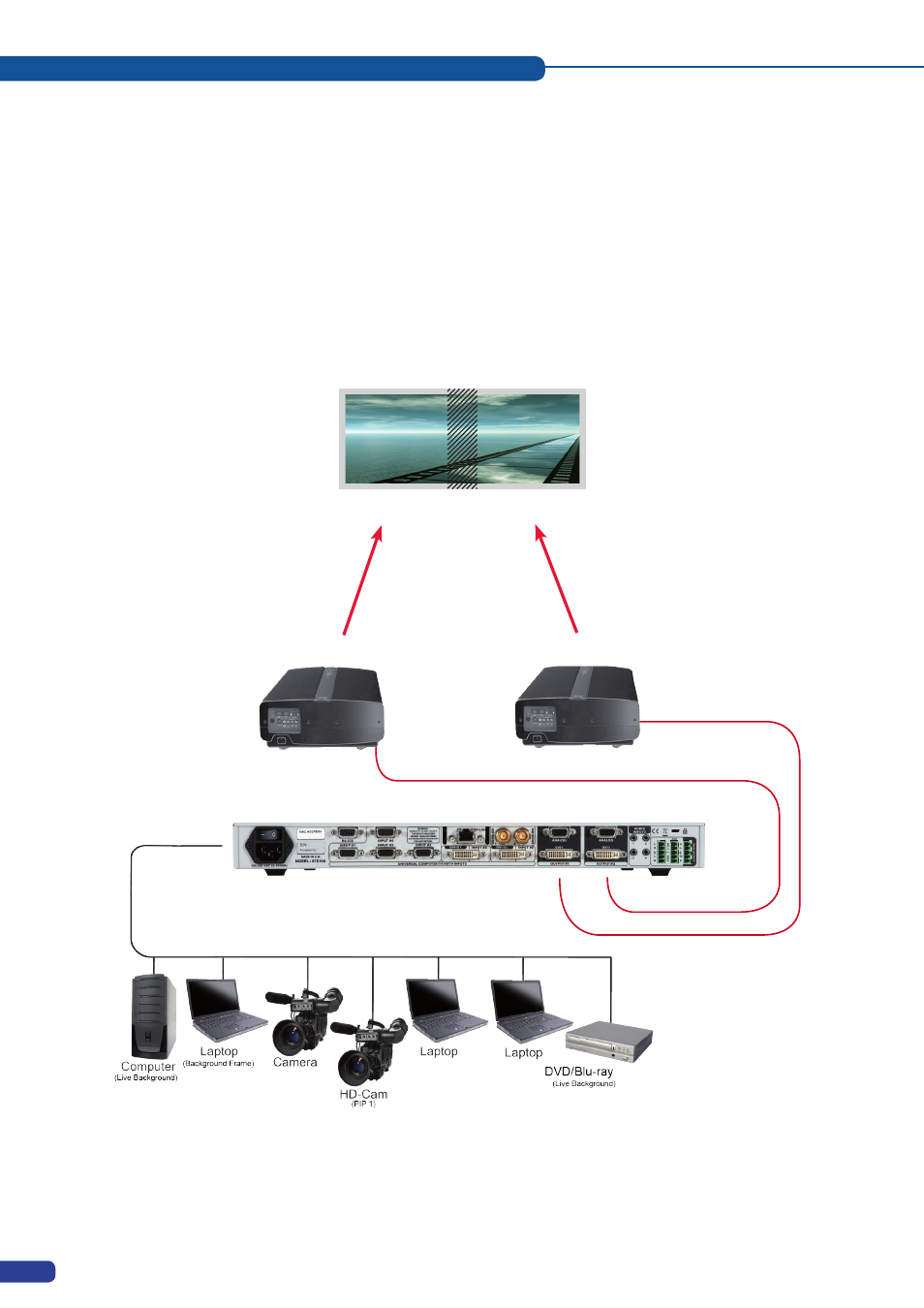

will let you set up for the first time quickly and easily. Here is an

example of a typical

STE100

setup.

LEFT

output #1

output #2

RIGHT
