COMPONENT VIDEO SOURCES:

The Component Video signal, also called YUV (Y, Pr, Pb)

or BETACAM™ is widely used in broadcasting and is

available on high-quality DVD players.

The COMPONENT signal is transmitted with 3 coaxial

cables, and also has a better quality picture than

COMPOSITE and S.VIDEO signals.

The COMPONENT connectors are usually RCA (x3), or

BNC (x3).

RGBS VIDEO SOURCES:

This signal is widely used in broadcasting and is available

on European DVD player. The RGB/S signal is transmitted

with 4 coaxial cables, and also has a better picture quality

than COMPOSITE and S.VIDEO signals. The RGB/S

connectors are usually BNC connectors for Broadcasting

equipment, and SCART connector for DVD players.

For inputs #1 to #4: connect a HD15 to 4 x BNC cable

between the HD15 connector of the device and your

RGB/S source.

DVI AND ANALOG SOURCES:

DVI Inputs #1- #2 on the

STE100

accept up to 2 live sources

in Digital format.

DVI-I: 1 x digital (DVI) and 1 x analog input on female

DVI-I universal connector.

SD/HD-SDI SOURCES:

SD/HD-SDI Inputs #1- #2 on the

STE100

accept up to 2 live

sources in Digital formats.

SD/HD-SDI: 1 x digital input on female BNC connector.

ANALOG:

1 x analog output for the main display

device on female HD15 connector.

DIGITAL/ANALOG:

1 x main output on female DVI-I

connector (simultaneous analog and

digital).

Output #1: Left side of image.

Output #2: Right side of image.

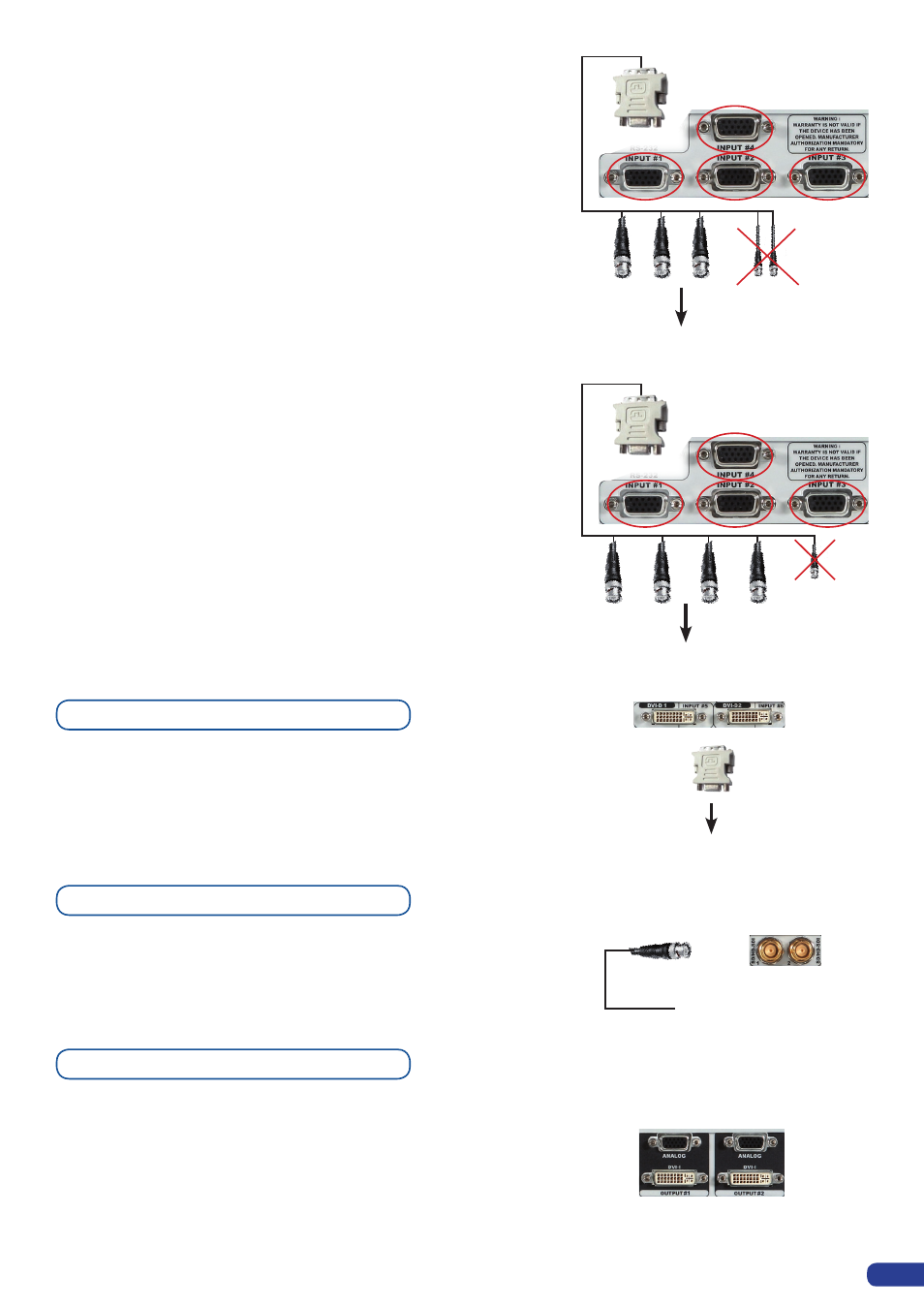

RGBS Source

Analog Computer Source

BNC

HD/SDI Source

DVI-D

Component (YUV) Source

DVI Inputs #1 & #2

SD/HD-SDI Inputs #1 & #2

Output #1 & Output #2
