Analog Way Smart Edge User Manual

Page 36

- Soft Edge Blending Adjustments (continued)

Finally, since the overlapping zone receives the same image from the video projectors twice, adjustments

have to be done inside the overlapping area.

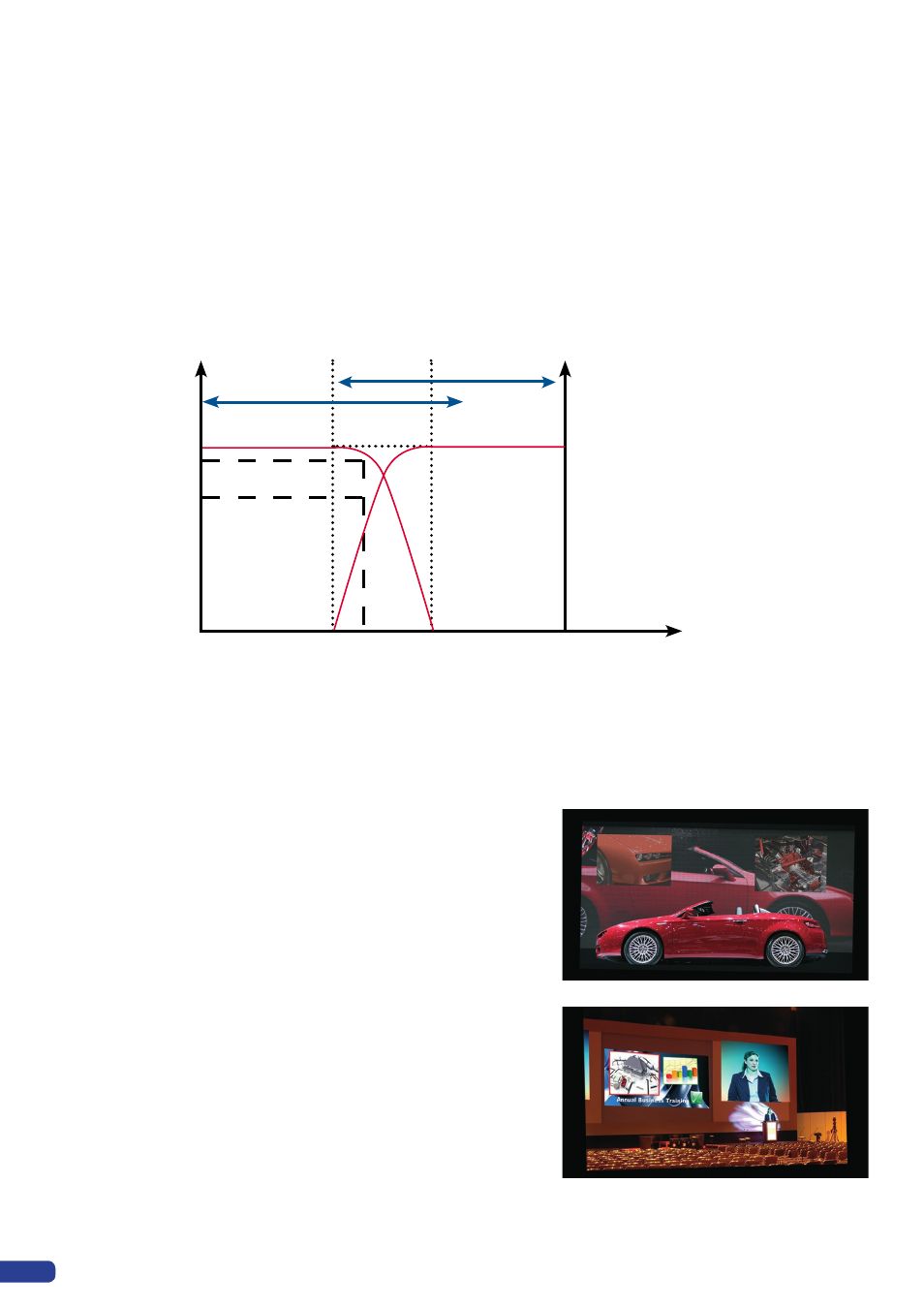

Making a perfect blend entails gradually decreasing the light provided by the video projector on the left side

of the overlapping zone, while gradually increasing the light provided by the video projector on the right side,

at the same time.

With the help of these different adjustments, the overlapping areas are less visible, and you are ready to

achieve a projection that is as seamless as possible.

Result is:

- Soft Edge Blending Contents for Projection

To develop an effective presentation, you are encouraged to use

various types of sources: computer, camera, VCR, DVD, Blu-

Ray... Many options are possible and they will help you create an

attractive presentation that compellingly conveys your message.

Here are a few tips to obtain the best possible results. To ensure

a successful Edge Blend it is fundamentally important that the

image used as the background be at the same resolution and

aspect ratio as the blended projection. In other words, the image

needs to fit with the size of your screen. If your image is too large,

part of it will not appear on the screen. If too small, the image will

not cover the entire surface of the screen, which will not produce

a satisfying result.

Luma

Left projector

Right projector

100%

Screen
