51
6) Adjust and size each input so that they are full screen in the test pattern.
- For computer sources: click on the Centering button in the Image main tab. As required, adjust the position
with the H & V position adjustments.
- For video sources: Select the Image main tab and adjust the position with the H & V position adjustments.

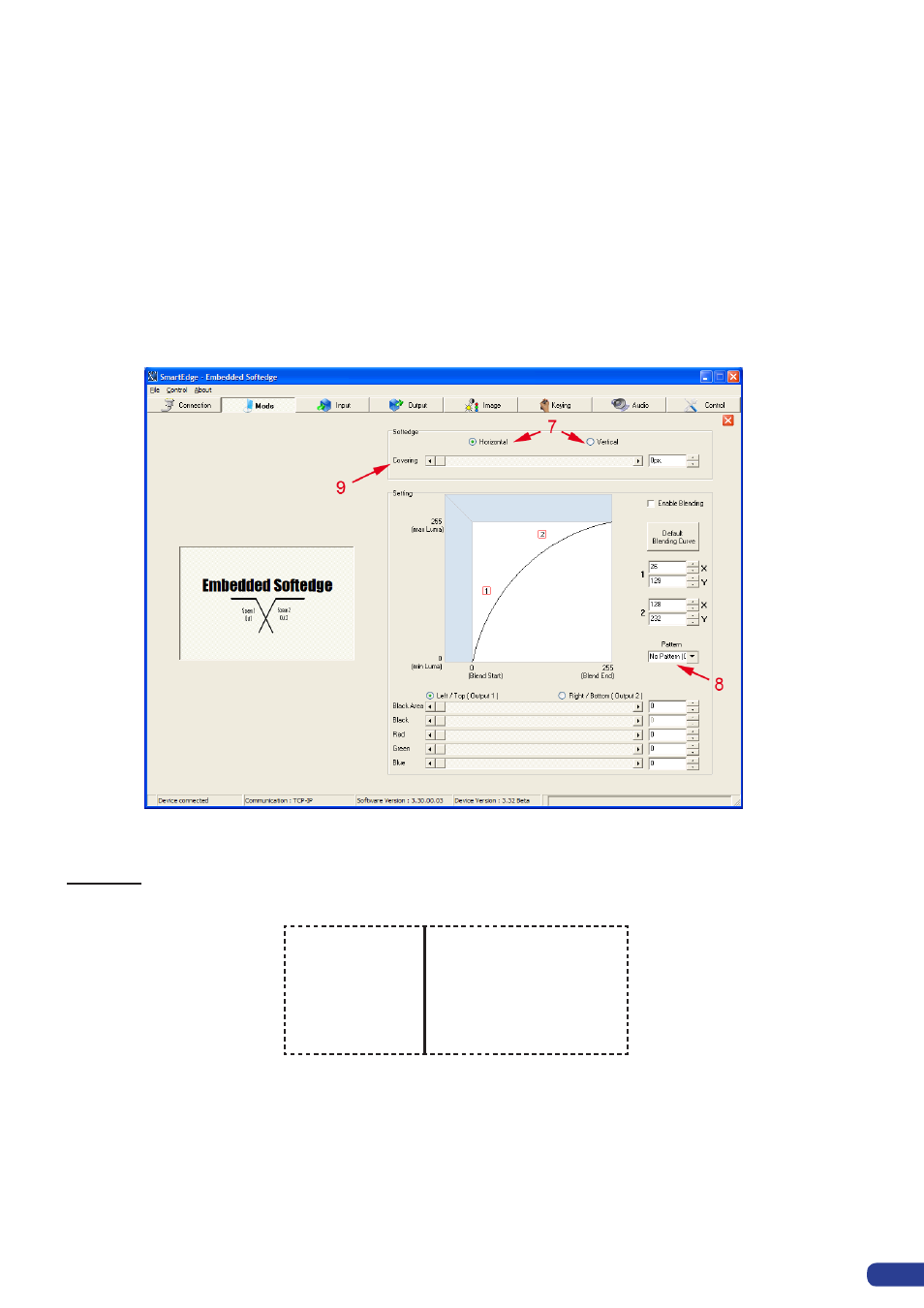

7) Select the Horizontal or Vertical edge blending mode by clicking on the horizontal or vertical button.
8) Display a Black screen (click on the BLACK button in the input selection row) and click on the Covering
button to activate the Covering Pattern.
* NOTE *: Verify that the Soft Edge is not enable (Enable Soft Edge button not activates).
9) Adjust the Covering size so that the test pattern overlaps each other at the junctions of the projectors.
• Example: Test pattern in horizontal SE configuration.
This operation is to match physical covering with software covering value used for calibration of the source
covering image area.
