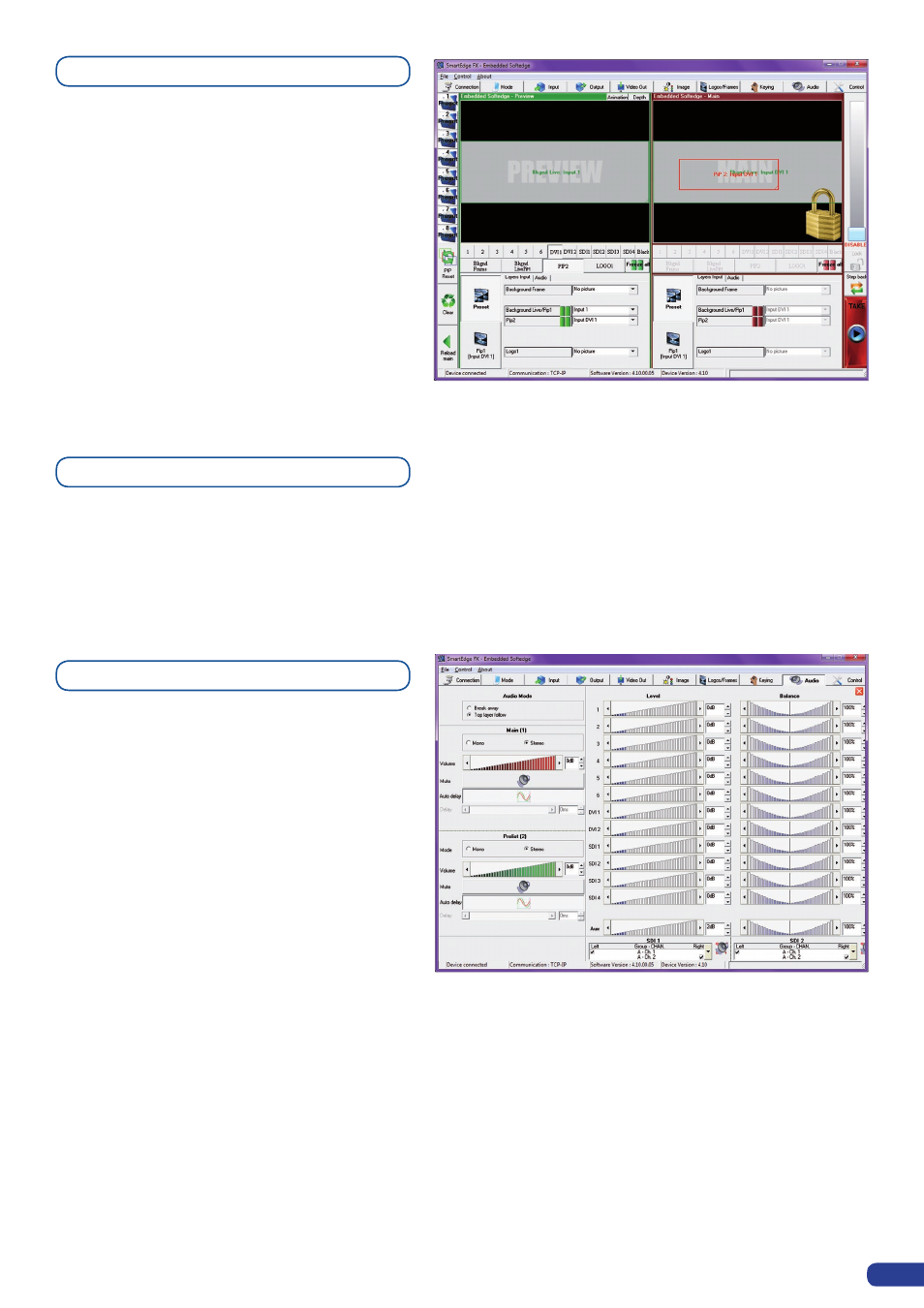

The four STE200 user presets can be called back
at any stage during your show or event.
1. Click on one of the 8 available Preset buttons
to choose which memory you wish to use.
Select Load to Preview from the dropdown
menu, your preset will appear on the Preview
screen.
2. Once you have selected your preset, simply
click on the Take button to view the result on
your main screen.
To configure audio settings of the STE200 , plug
all audio inputs into the device, and click on the
Audio tab of the RCS home page.
1. Set the Main audio output level and delay
(accessible only if Delay Mode is set to
Manual Adjust), or click on the Mute button to
mute Main audio output.
2. Repeat step 2 for the Prelist audio output.
3. Individual source settings (level and balance)
for each audio input can be configured in the
right hand section of the Audio tab.
The STE200 allows to work with up to 8 stereo inputs, 1 auxiliary input, and 4 embedded SDI audio inputs
(via the SDI BNC connectors), all accessible via the Audio menu of the STE200 , and which can
be affected to one or both of the 2 independent symetrical/asymetrical outputs of the device.
Working with Presets
Audio configuration
Working with Audio
