4-2. THE STE200 MENU

To access the

STE200

menu, press the

[EXIT/MENU]

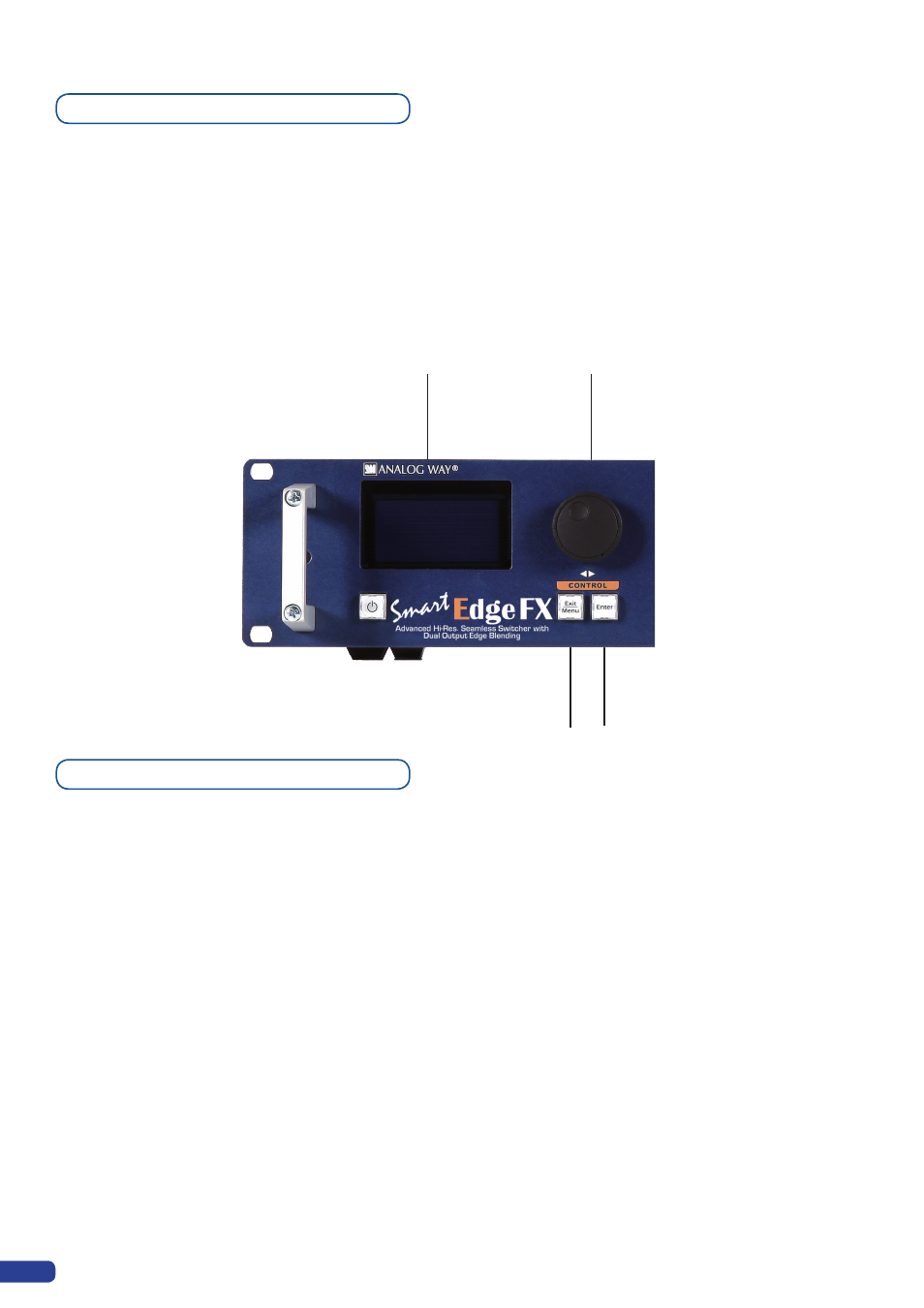

button in the control section (4). To highlight items in

the menu which will appear on the VFD screen (2), turn the scroll knob (4) left or right to the desired menu

item. When you have reached the desired menu item, press the

[ENTER]

button in the control section (3) to

access that menu function. Pressing the

[ENTER]

button (1) when a selection has been made sets the value

to that selection in the

STE200

memory. When all settings have been made, press the

[EXIT/MENU]

button

to exit sub-menus and return to the main menu.

* IMPORTANT * : simply selecting a menu item will not set it to that value. Be sure to press the [ENTER]

button when parametering the menu items.

Pressing the

[MENU]

button in the menu section of the

STE200

, will display and give you access to the

following items on the menu VFD screen:

- INPUT:

select to configure the 12 individual input types and resolutions.

- OUTPUT 1:

select to set the output types and resolutions of Output #1.

- OUTPUT 2:

select to set the output types and resolutions of Output #2.

- VIDEO OUT:

select to configure Video output card settings.

- PRESET:

select to store and use presets.

- AUDIO:

select to access all audio input and output parameters.

- CONTROL:

select to access device software information, LAN settings, reset factory settings, amongst

other user oriented functions.

Menu navigation

Home menu
