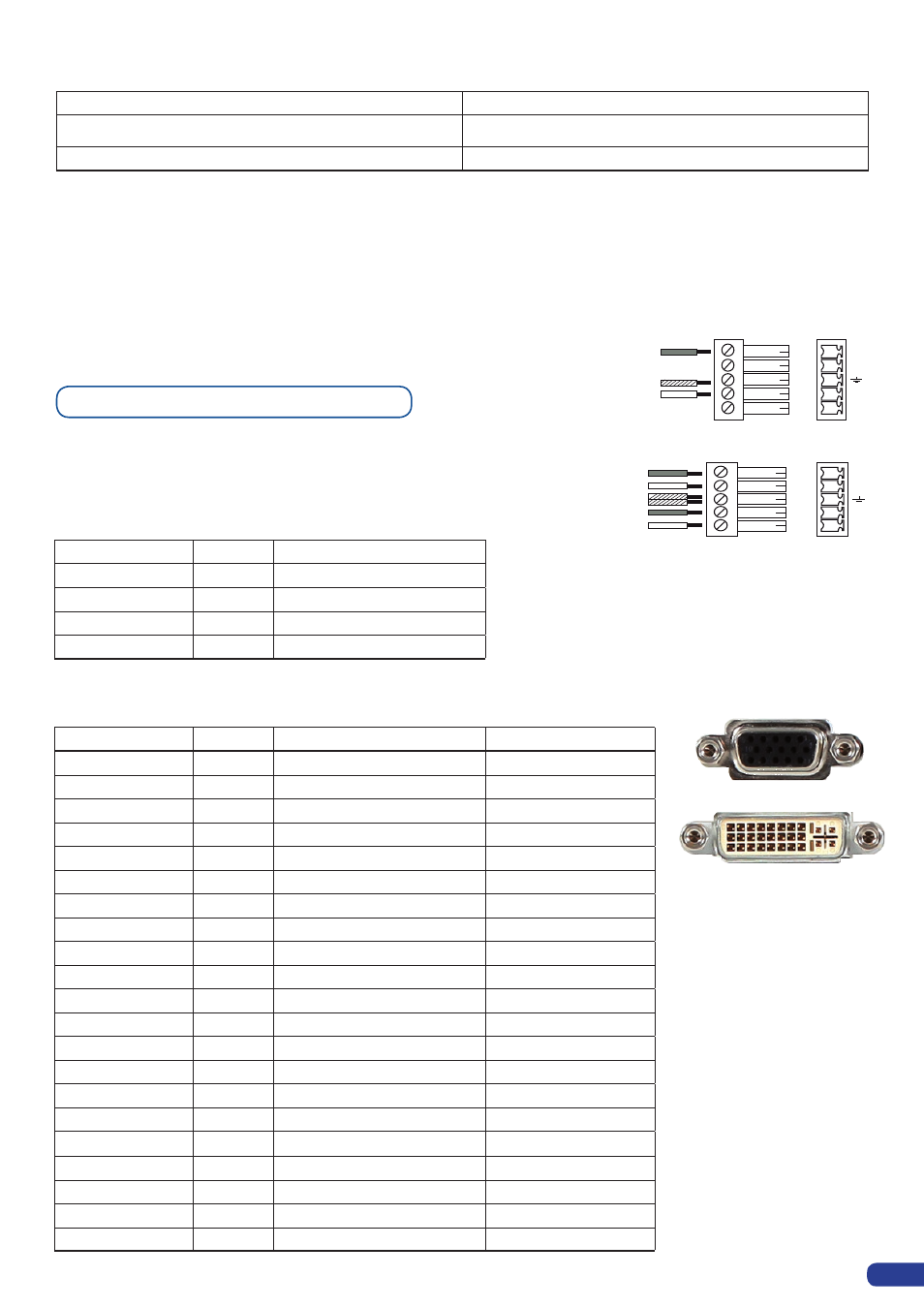

• ANALOG OUTPUTS
Connector: Outputs #1 (Main #1) & #2 (Main #2):
female HD15, DVI-I (analog pins).
HDTV Resolutions:
Resolutions:
Output specifications
Format Ratio Available Refresh Rates Reduced Blankings
640 x 480 4 : 3 50Hz 60Hz 72Hz 75Hz
800 x 600 4 : 3 50Hz 60Hz 72Hz 75Hz
848 x 480 16 : 9 50Hz 60Hz 72Hz 75Hz
1024 x 768 4 : 3 50Hz 60Hz 72Hz 75Hz
1280 x 720 16 : 9 50Hz 60Hz
1280 x 768 15 : 9 50Hz 60Hz 72Hz 75Hz
1280 x 800 16 : 10 50Hz 60Hz 72Hz 75Hz
1280 x 1024 5 : 4 50Hz 60Hz 72Hz 75Hz
1360 x 768 16 : 9 50Hz 60Hz 72Hz 75Hz
1366 x 768 16 : 9 50Hz 60Hz 72Hz 75Hz
1366 x 800 15 : 9 50Hz 60Hz 72Hz 75Hz
1400 x 1050 4 : 3 50Hz 60Hz 72Hz 75Hz
1440 x 900 16 : 10 50Hz 60Hz 72Hz 75Hz
1600 x 1200 4 : 3 50Hz 60Hz
1680 x 1050 16 : 10 50Hz 60Hz
1920 x 1080 16 : 9 50Hz 60Hz 72Hz 75Hz YES
1920 x 1080 B 16 : 9 50Hz 60Hz YES
1920 x 1080 C 16:9 50Hz 60Hz YES
1920 x 1080 HD 16:9 50Hz 60Hz YES
1920 x 1200 16 : 10 50Hz 60Hz YES
2048 x 1080 19 : 10 50Hz 60Hz YES
or
• Connector: Balanced or unbalanced mono/stereo inputs
(all pin MCO male connector).
8 audio stereo inputs + 1 auxiliary.
(all balanced / unbalanced).
Vi = +15dBV max.
Zi = 40Kohms (Balanced).
L+
L-
R+
R-
UNBALANCED CONNECTION
LEFT
RIGHT
GROUND
4
MCO male connectors
Inputs #1 to #6: Balanced & unbalanced connection
Inputs DVI #1 to DVI #2: Balanced & unbalanced
connection
Input AUX: Balanced & unbalanced connection
AUDIO SETTINGS
Settings Availability
GAIN YES: from -
∞
to + 18dB
Balanced Audio YES: Left and Right
4
L+
L-
R+
R-
BALANCED CONNECTION
L+
R+
L-
R-
GROUND(S)
Outputs #1 to #2: Balanced & unbalanced connection
Format Ratio Available Refresh Rates
720p 16 : 9 50Hz 59.94Hz 60Hz
1035i 16 : 10 59.94Hz 60Hz
1080i 16 : 9 50Hz 59.94Hz 60Hz
1080p 16 : 9 30 Hz 50Hz 59.94Hz 60Hz
