22

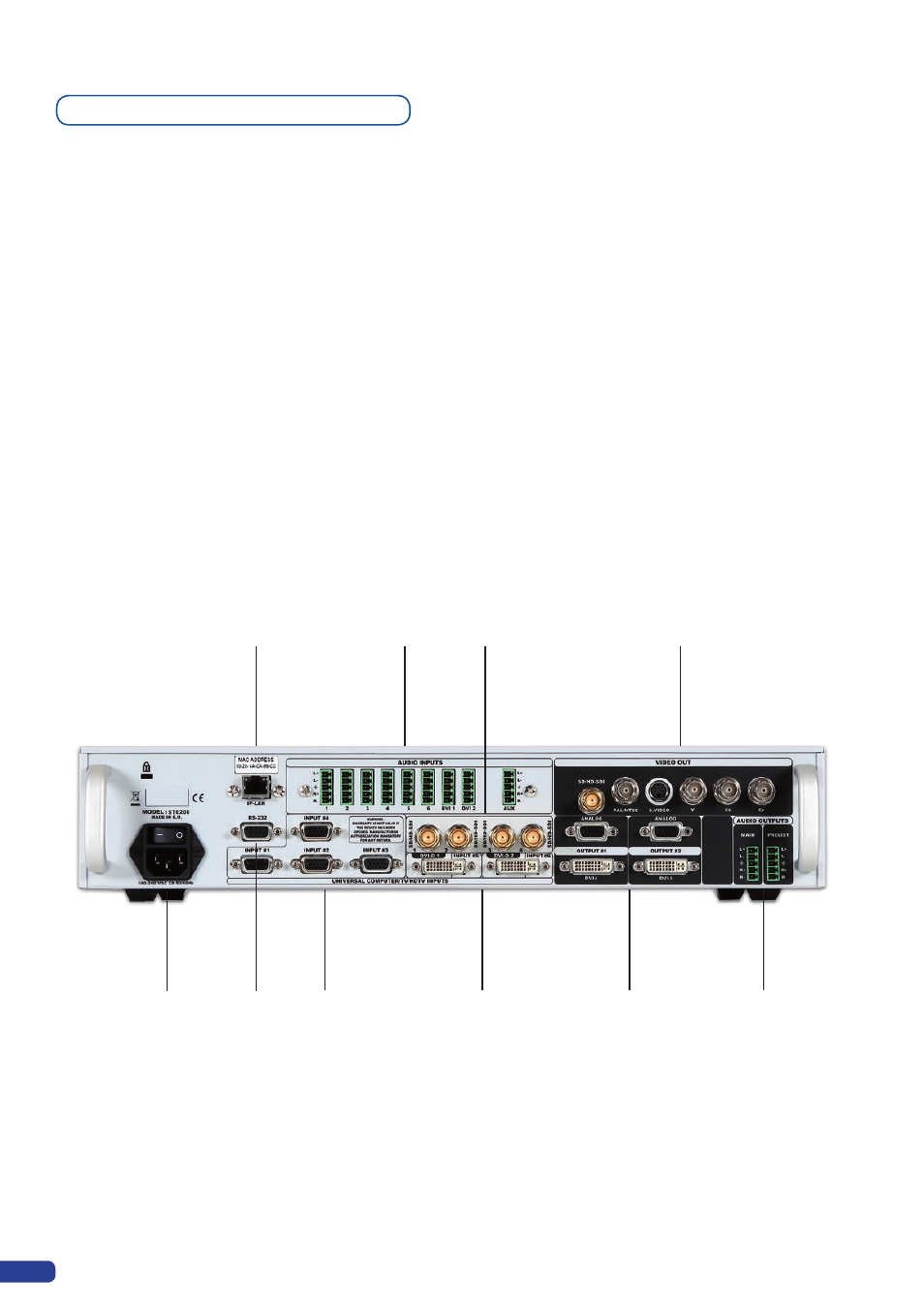

3-2. THE STE200 REAR PANEL
The STE200 rear panel is equipped with 6 universal digital and analog inputs. Inputs #1 through #4 (3) are
universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the shipped
Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).
The 2 DVI inputs are available on the DVI-D plugs (4). All DVI inputs are HDCP compliant. The unit has no less
than 4 3G/HD/SD-SDI sources that allow you to connect all your video sources formats from PAL/NTSC up to
HDTV 1080p 60Hz.
The Output #1 and Output #2 (6) outputs will allow for the STE200 high resolution digital and analog signals
to be viewed on large screen.
Finally, the audio in and output card will let users trigger audio with any source, accurately balance or tweak
sound sources and outputs.
1 : AC outlet and On/off switch
2 : IP-LAN connector
3 : Universal Analog Computer/TV/HDTV inputs
4 : DVI Inputs #1 & #2 (female DVI-I)
5 : 3G/HD/SD-SDI inputs #1 to #4: female BNC
6 : Outputs #1 & #2: female HD15, DVI-I (simultaneous analog and digital outputs)
7 : Audio inputs
8 : Audio outputs
9 : RS232 connector
10 : Video out
Overview
2
1 9 3 4 6 8
5 7 10
