The RCS software for your

STE200

is composed of several easily identified sections.

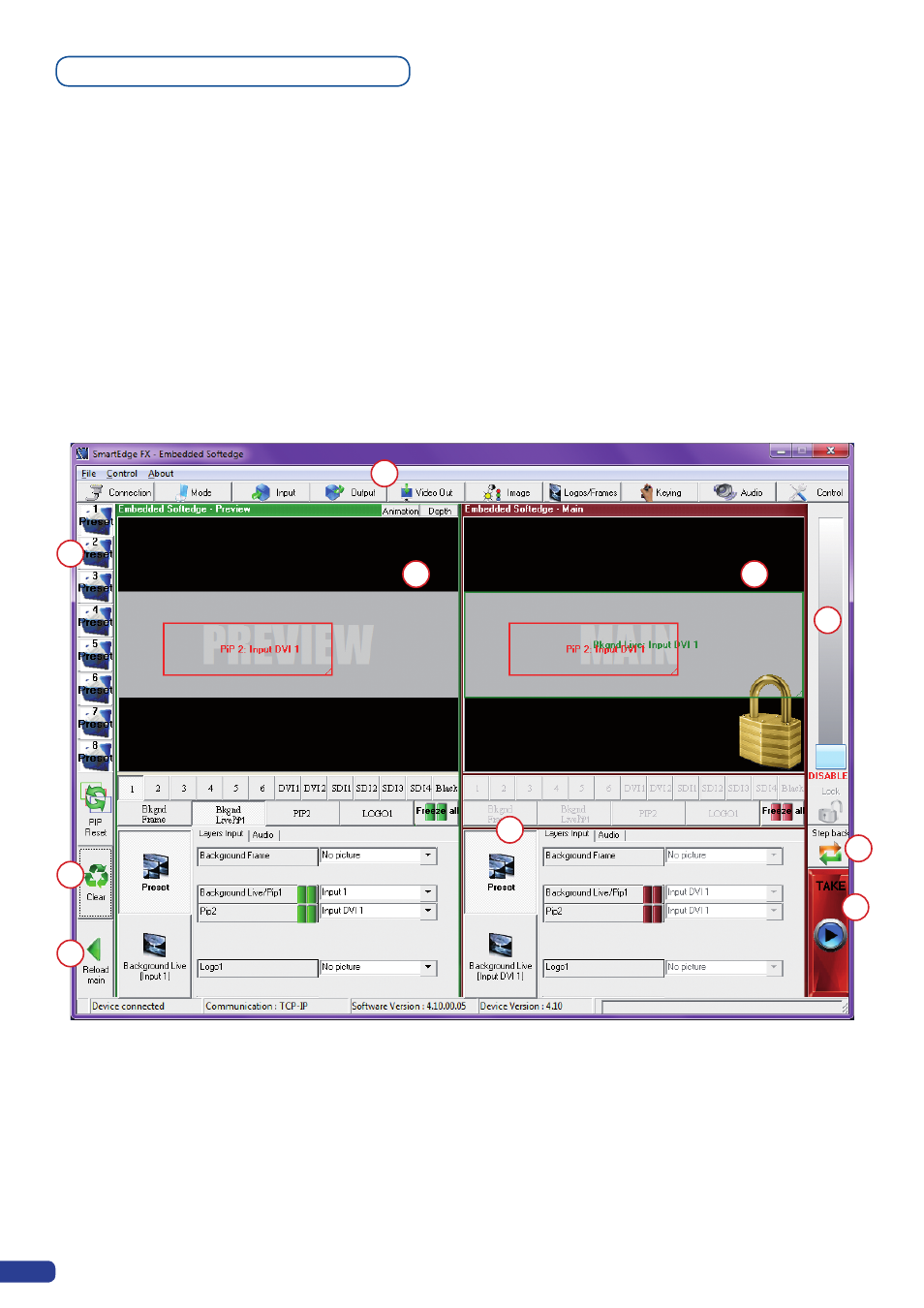

The tabs menu (1) allows you to navigate through the equivalent of the

STE200

front panel menu items (see

also “The STE200 Menu” p.28).

The green window of the RCS (2) represents your Preview window and can be used to parameter sources,

frames, layers and logos directly by clicking on the corresponding button, then navigating through the different

available tabs. The red window of the RCS (3) represents your Main window, and can also be used much like

the front panel of the

STE200

. Create user presets directly in the RCS main window, by clicking on one of the

four available Preset icons (4) and setting up your preset in the Preview window.

Clear unwanted steps with the

[CLEAR]

button (5), reload a fresh copy of your screen via the

[RELOAD MAIN]

button (6), make smooth takes directly with your mouse or trackpad with the virtual T-bar (7). The

[TAKE]

button (9) will allow you to view any changes made to your preview screen on your main screen,

Analog Way

engineers have even implemented a

[STEPBACK]

button (8) to quickly return to your previous setup in case

of a manipulation error (recall of Preset before

[TAKE]

The status section (10) allows for easy monitoring of the connection status.

The RCS software for your

STE200

can be viewed as the software version of the

STE200

front panel menu

section. It allows you to quickly access all of the

STE200

functions via a single page interface, and easily edit

your settings directly from your laptop or PC.

Before starting with the RCS software, you must establish a connection from your laptop to the

STE200

you

wish to run.
