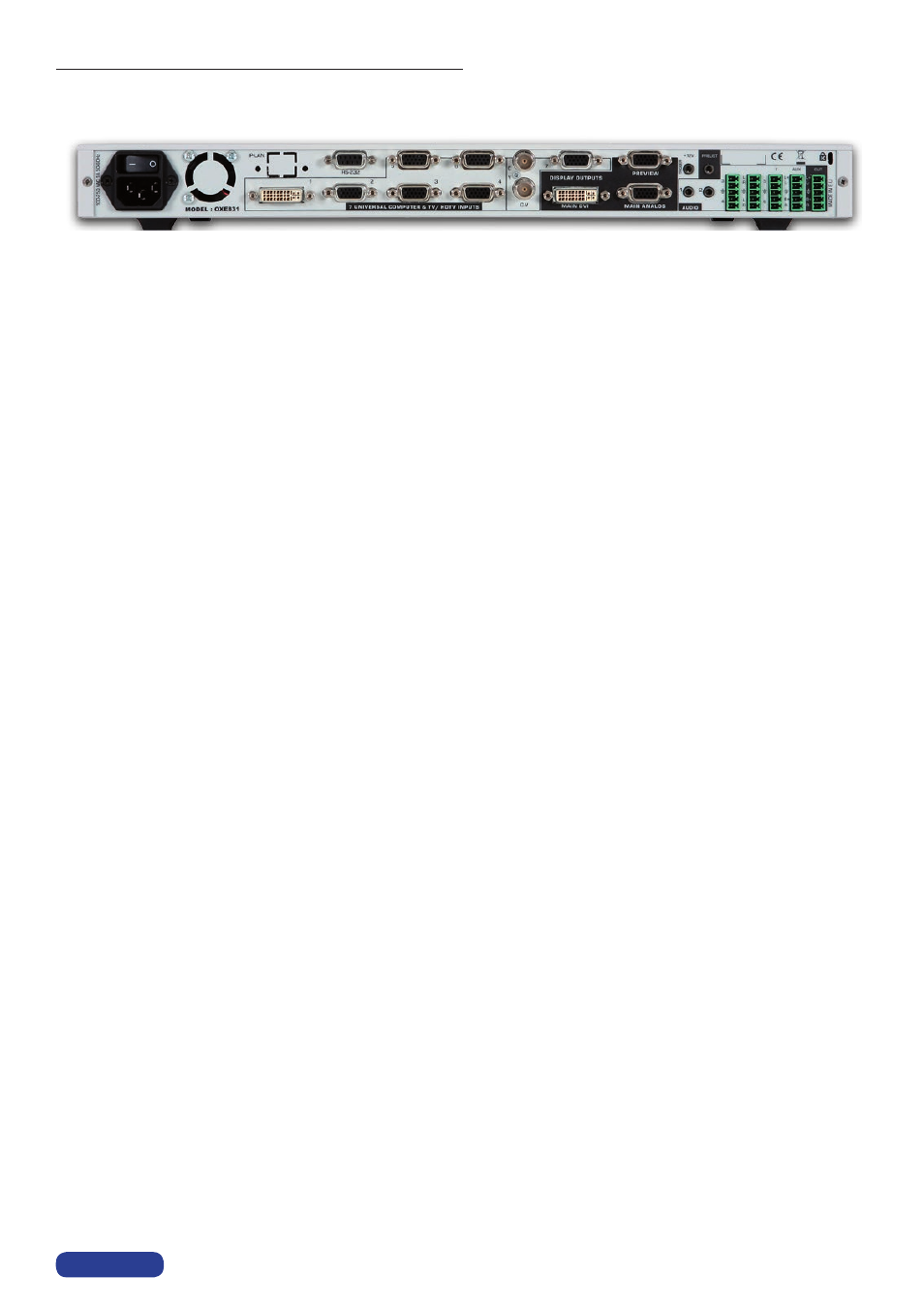

1-6. REAR PANEL DESCRIPTION OF THE OCTO VALUE
100-250 VAC, 1A, 50-60 Hz : AC power inlet.
O / I : AC power switch (O = OFF, I = ON).
IP/LAN : LAN communication port on a RJ45 connector.
RS-232 : RS-232 communication port on a DB9 female connector.
7 UNIVERSAL COMPUTER & TV/HDTV INPUTS :
1 : Universal (computer and video) input on a DVI-I female connector.
NOTE : This input accepts analog & digital Computer source.
2 to 6 : Universal (computer and video) inputs on a HD15 female connector.
7 : Universal (computer and video) input on HD15 and 2 x BNC female connectors.
NOTE : All the universal inputs accept the following video source : Composite Video,
S-Video, SD-YUV, RGBHV, RGBS, RGsB & HD-YUV (HDTV)
DISPLAY OUTPUTS :
PREVIEW : PREVIEW output on a HD15 female connector.
MAIN DVI : MAIN digital & analog output on a DVI-I female connector.
MAIN ANALOG : MAIN analog output on a HD15 female connector.
AUDIO :
1 & 2 : Unbalanced stereo audio input #1 & #2 on 3.5 mm jack female connectors.
3 to 6 : Unbalanced stereo audio input #3 to #6 on MCO male connectors.
7 : Balanced stereo audio input #7 on a MCO male connector.
AUX : Balanced stereo auxiliary audio input on a MCO male connector.
OUT : Main stereo audio output (balanced & unbalanced) on a MCO male connector.
PRELIST : Prelist stereo audio output (unbalanced) on a MCO male connector.
Trigger +12 V : A room (+ 12 Vdc trigger) command (3.5 mm jack female), allows to control external functions
such as up/down screen, lighting...
