I 0201 GB- 5
3 - COMMISSIONING
3.1 - ANCHORING
The machine can be operated on any fl at non-resilient fl oor.
Make sure that the machine rests solely on the three support points provided (fi g. 2a).
If possible, it is advisable to anchor to the fl oor using relative mounting feet (see fi g. 2a) in the event of
continual use with wheels weighing over 35 Kg.
3.2 - ELECTRICAL CONNECTION
The machine is supplied with a single phase mains cable plus earth (ground).
The supply voltage (and mains frequency) is given on the machine nameplate. It may NOT be changed.
Connection to the mains should always be made by expert personnel.
The machine should not be started up without proper earth (ground) connection.
Connection to the mains should be through a slow acting safety switch rated at 4A amp (230V) or 10
amp (115V) .
3.3 - PNEUMATIC CONNECTION
For operation of the spindle with pneumatic locking (constant thrust air spring) connect the balancing
machine to the compressed air main. The connection fi tting is located at the back of the machine.
A pressure of at least 7 kg/cm
2 (approx. 0.7 MPa or 7 BAR or 100 PSI) is required for correction
operation of the release device.

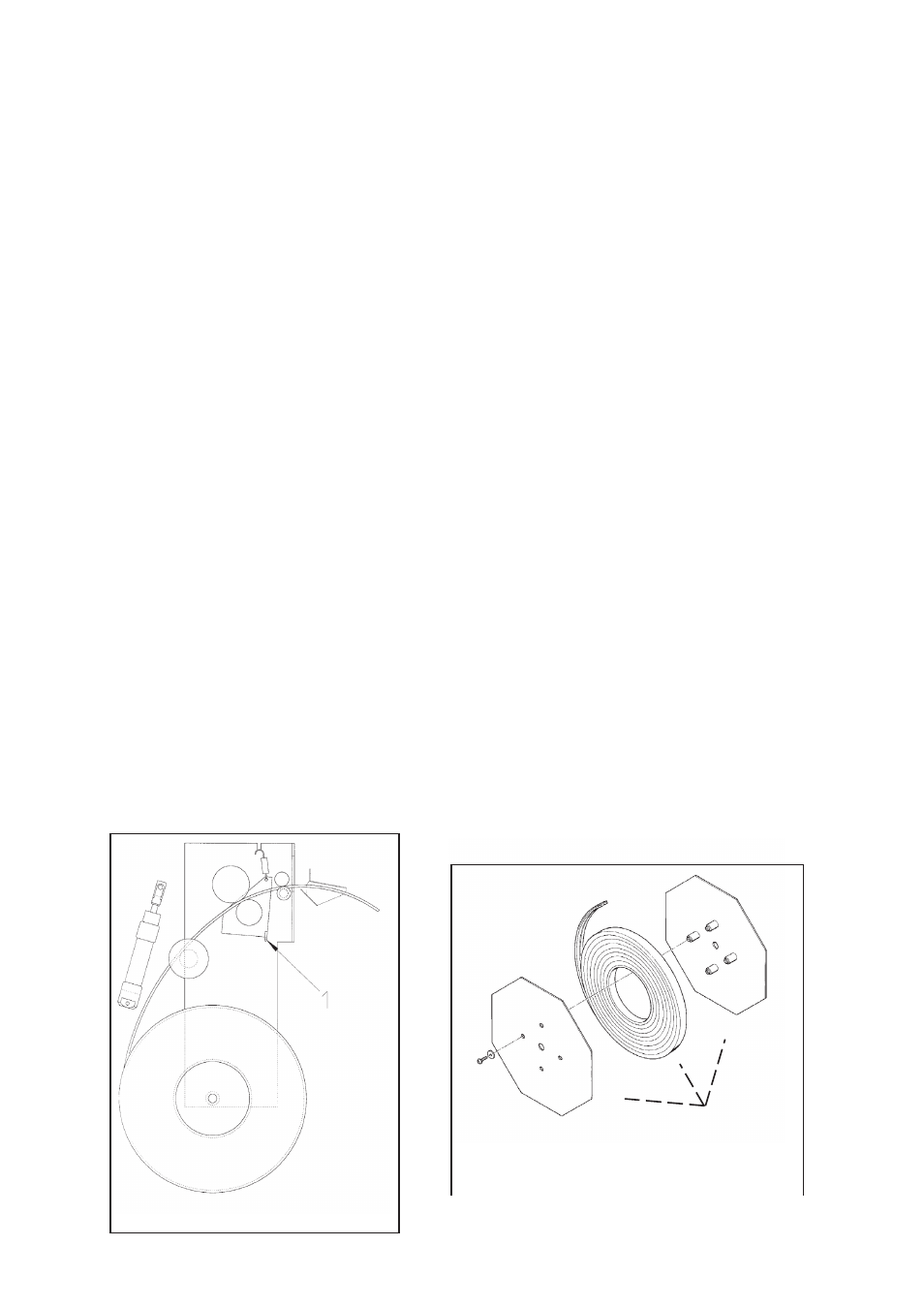

3.4 - TO REPLACE THE ROLL OF LEAD
(for machines provided with the dispenser option)
a) Open the cabinet door.
b) Mount the roll and insert the strip of lead under the rubber covered wheel; for easier insertion, act
on pin (1).
c) Close the cabinet.
d) Press the push buttons to dispense a counterweight with relative cutting.
N.B.
- Mount the roll of lead correctly on the spool (2)
- Never carry out point d) with the cabinet open.
- When the roll of lead is close to fi nishing (last 2-3 rounds of strip), lift the lead from the
spool to decrease its curvature.
- Avoid bending the lead strip: the presence of strong bends and counterbends would
impair correct operation of the feed system.
- If the dispenser is not used for a long period, it could be possible that the fi rst weight to
be distributed is not accurate, therefore it should be discarded.
2
1
Fig. 3
