5.3.3 - MANUAL PRESETTING
If necessary, the dimensions can be inserted or edited in manual mode as follows:
- press MENU' + 4 or else press 6 from the Dimensions in automatic mode screen (which can be
reached by pulling out the distance + diameter gauge).
- press 1 to select the dimension to be preset (red).
- press 2 / 3 to preset the required value.
- press 5 to change unit of measurement.
- press 6 to preset the dimensions for the ALU-S correction mode
Defi nition of dimensions:
d = DIAMETER:
Preset the nominal diameter stamped on the rim.
b = WIDTH: Preset the nominal width indicated on the rim.
a = DISTANCE: Preset the distance of the inside of the wheel from the machine, after measuring
it with relative gauge as described in fi g. 8.

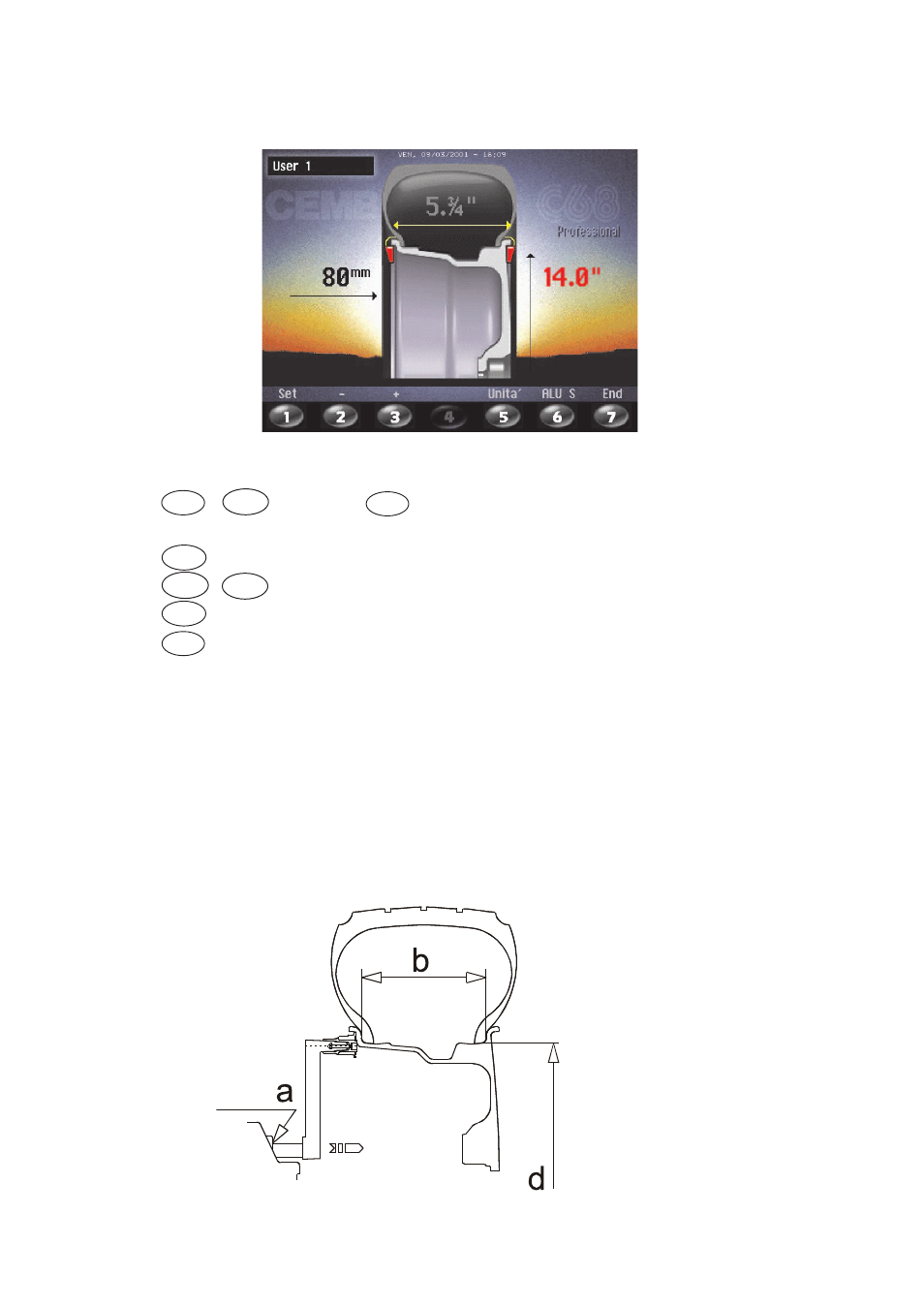

Fig. 10
