5.3 - PRESETTING OF WHEEL DIMENSIONS
5.3.1 AUTOMATIC PRESETTING

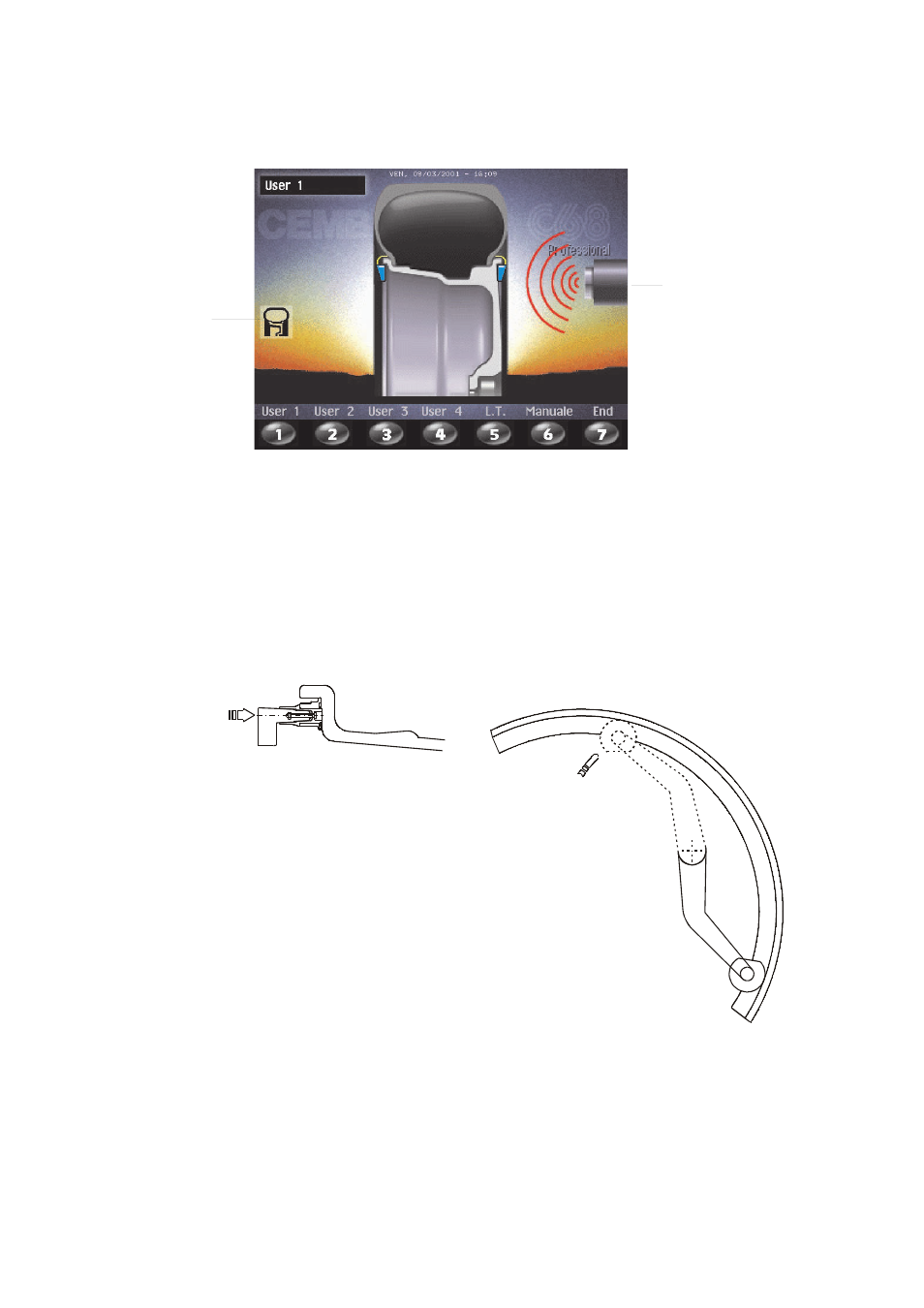

The screen appears upon removing the distance + diameter gauge.
The indication “dimension acquired” is given by the symbol of the correction weight which changes from
blue to red.
- Standard wheels: Using the appropriate handgrip, move the end of the gauge against the rim in one
of the positions A/B shown in fi gure 8:
- Hold the gauge still in position for at least 2 seconds.
N.B. - Always use the round part of the gauge striker surface
The wheel width is measured by the Sonar upon closing the guard after a valid measurement of diameter
and rim distance (option). If the width measured is incorrect (out of range), the following message
appears:
“Sonar measure is out of range:”
“F1 = repeat”
“F2 = manual set-up”
When the acoustic signal is enabled (see ACUSTIC SIGNAL ), acquisition of the dimensions is accompanied
by a “beep”.
The so-obtained calibration is necessary for modes ALU 1, 2, 3, 4, CTS, Static, Dynamic.
Manual presetting is possible by using the buttons as described in MANUAL PRESETTING
.
INDICATOR
L.T. function enabled
(see Buttons
Enabled)
INDICATOR: Width
Sonar function enabled
POS A
POS B
Fig. 8
