Operational dimensions – Climax BB7000 PORTABLE LINE BORING MACHINE User Manual
Page 10
10
6/00
(Inches/mm)

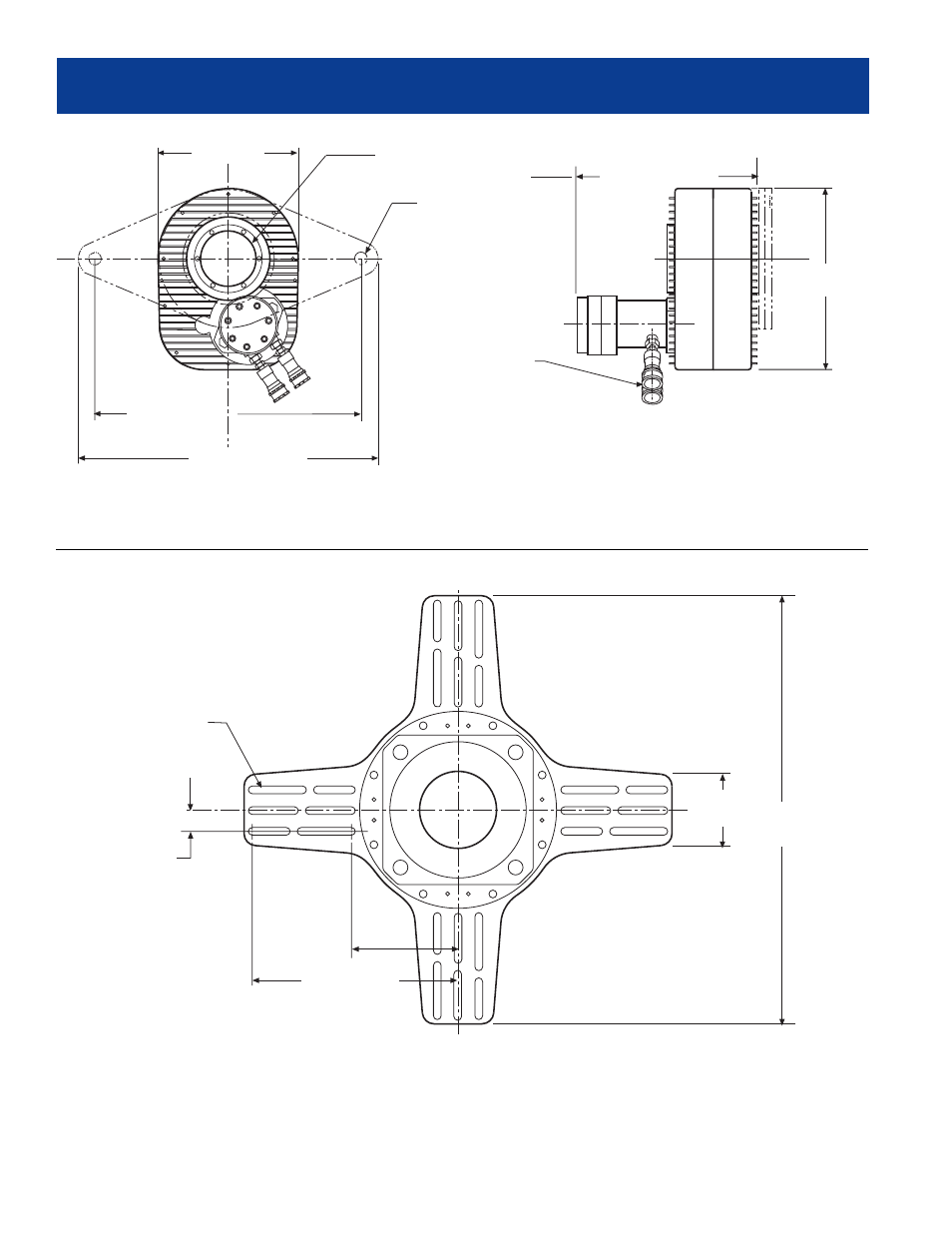

Rotational Drive Assembly
NOTE: Max dimensions = largest displacement motor
Min dimensions = smallest displacement motor
12.6 (320)
5.0 (127) dia
.81 (20.6) dia
holes
Hydraulic
motor
Quick
disconnect
fittings
24.0 (609.6)
27.0 (685.8)
16.3
(414)
Operational Dimensions
13.99 (355.3) max.
13.64 (346.4) min.
End-Mount Bearing Assembly*
* Alternate spider configurations available upon special request.
.70 (17.78)
wide slots
1.75 (44.45) typ
9.0 (228.6)
5.75
(146.1)
36.0
(914.4)
17.25 (438.2)
